Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine

Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine thumbnail-1
Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine thumbnail-2
Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine thumbnail-3
Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine thumbnail-4
Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine thumbnail-5
Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine thumbnail-6
Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine photo-1

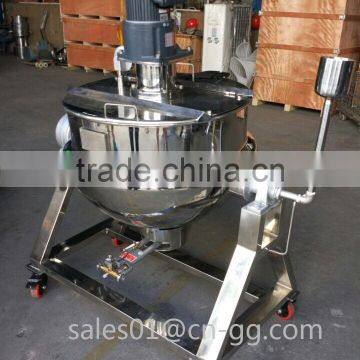

Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine photo-2

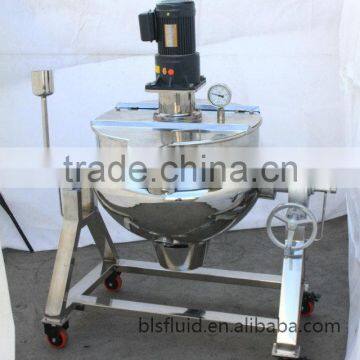

Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine photo-3

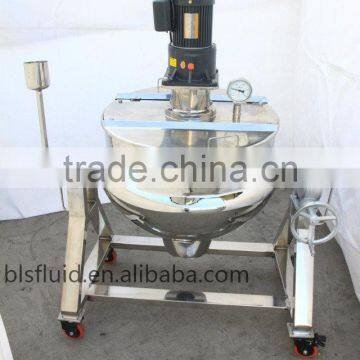

Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine photo-4

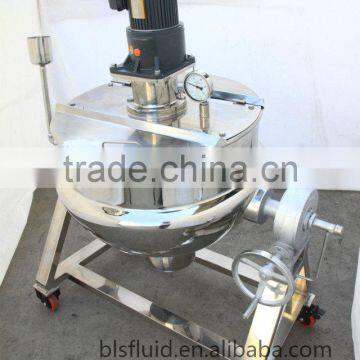

Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine photo-5

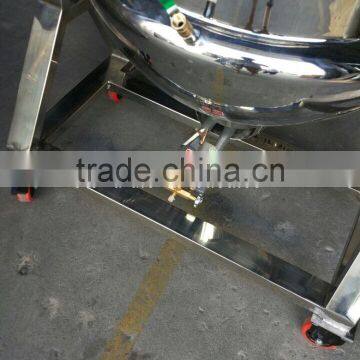

Tilting and Vertical Type LPG Heated Kettle Mix Ketchup Machine photo-6
US$ 1,500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BLS
Model Number:
JCG
Contact Supplier Request Quote Chat Now
Zhejiang L And B Fluid Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BLS
Model Number JCG
Type Cooking Equipment
After-sales Service Provided Overseas service center available
Product Description

Tilting and Vertical type LPG Heated Kettle Mix Ketchup Machine

    This Tilting and Vertical type LPG Heated Kettle Mix Ketchup Machine is suitable for mixing, concentrating and decocting the material in pharmaceutical, foodstuff and chemical industry etc.
    It is the best choose for jam making such as the matt jam and strawberry jam making, tomato sauce making and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.
    This Tilting and Vertical type LPG Heated Kettle Mix Ketchup Machine is composed of kettle ,backet ,worm wheel and worm etc. The kettle can revolve with 180 degree.
    The Tilting and Vertical type LPG Heated Kettle Mix Ketchup Machine is made of stainless steel SUS304,which has perfect corrsion-proof performance, and is highly endurable according to GMP requirements.
    Blender also can be added according customer requirements.

Model
Volume Diameter×Height
Form
Pressure
(mpa)
Agitator Speed
(r/min)
slope angel
Inlet&Outlet
Motor Power
JCG-50
50
60×45
Tilting
Stirring
0.3
36
90°
1/2”
0.75kw
JCG-100
100

70×50
Tilting Stirring Fixed
36
90°
3/4”
0.75kw
JCG-200
200

80×55
Tilting Stirring Fixed
36
90°
3/4”
1.5kw
JCG-300
300

90×65
Tilting Stirring Fixed
36
90°
3/4”
1.5kw
JCG-400
400

100×75
Tilting Stirring Fixed
36
90°
3/4”
1.5kw
JCG-500
500

110×85
Tilting Stirring Fixed
23
90°
1”
2.2kw
JCG-600
600

120×95
Tilting Stirring Fixed
23
90°
1”
2.2kw
JCG-1000
1000

1400×115
Tilting Stirring Fixed
23
90°
1”
3.7kw
Detailed Images
Packing & Delivery
Certifications
Our Company

Zhejiang L＆B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
