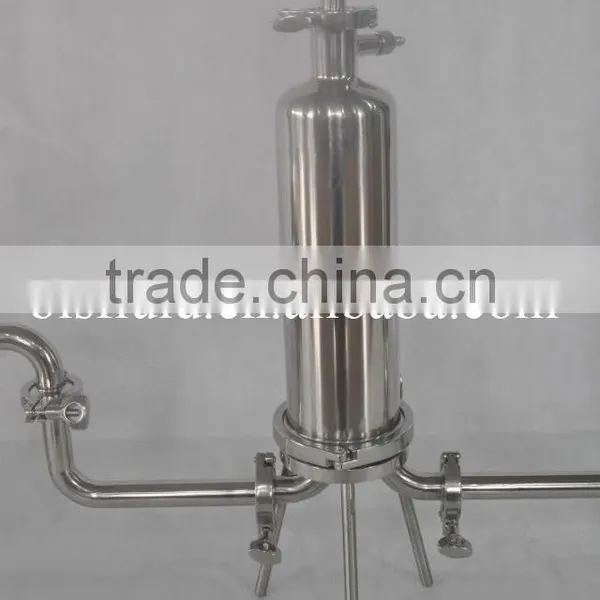

Sanitary Highly Effective Wine Medical Water Treatment System,Micropore Water Treatment photo-4
Sanitary Highly Effective Wine Medical Water Treatment System,Micropore Water Treatment photo-5
Sanitary Highly Effective Wine Medical Water Treatment System,Micropore Water Treatment photo-6
US$ 650 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BLS
Model Number:
BLS
Contact Supplier Request Quote Chat Now
Zhejiang L And B Fluid Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BLS
Model Number BLS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Sanitary highly effective wine medical water treatment system,Micropore water treatment

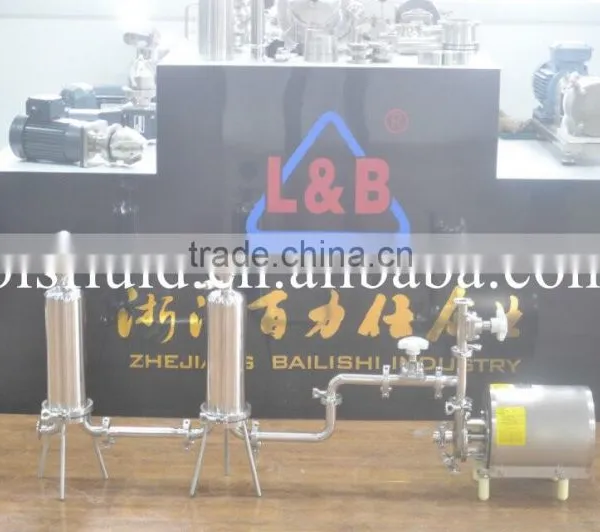

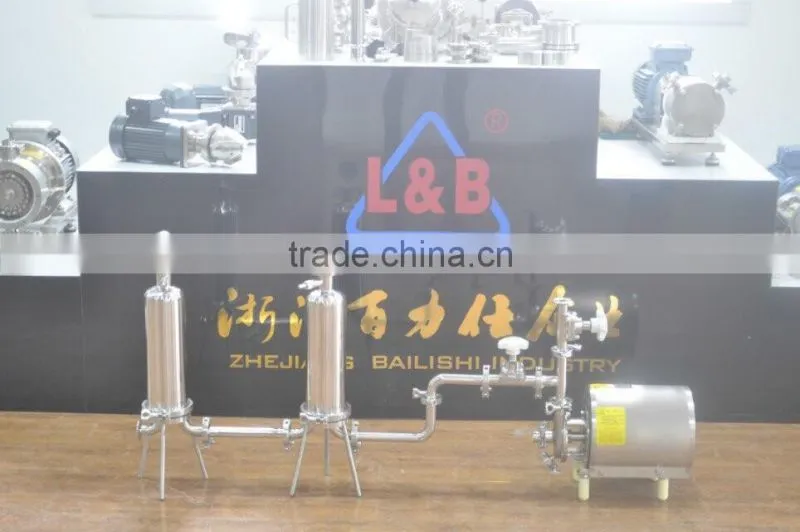

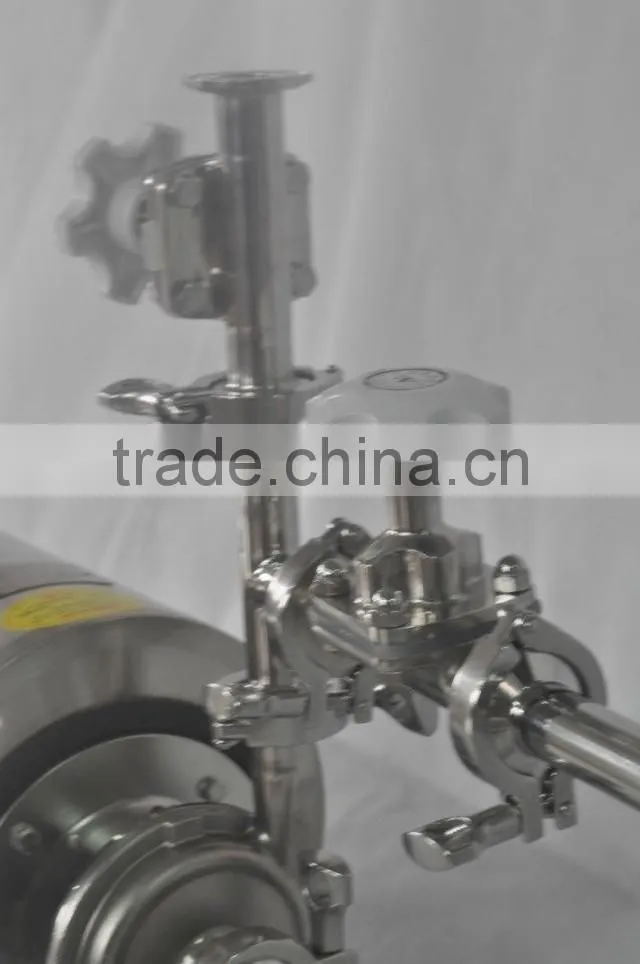

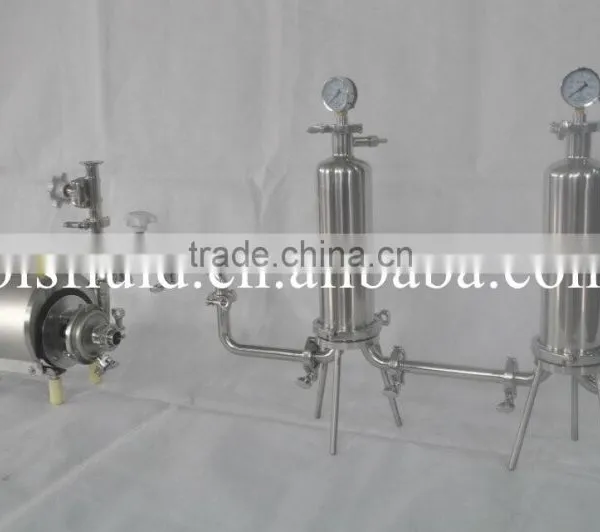

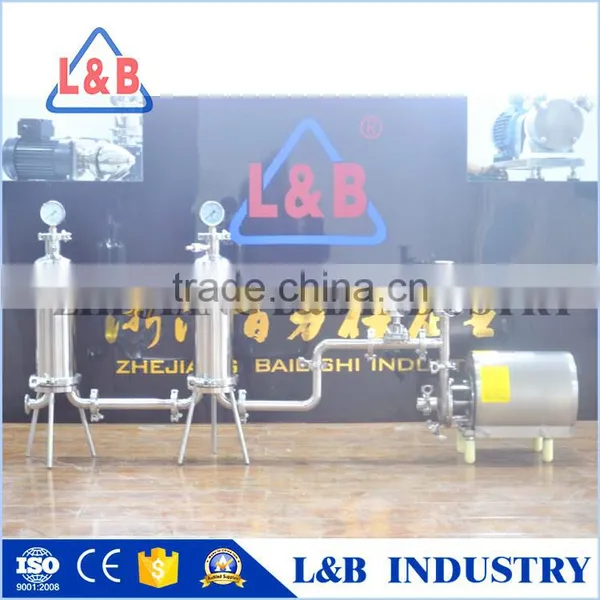

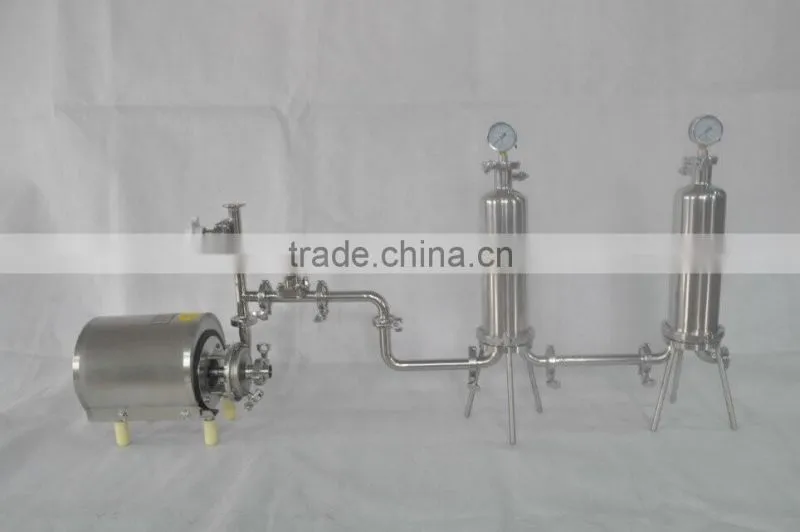

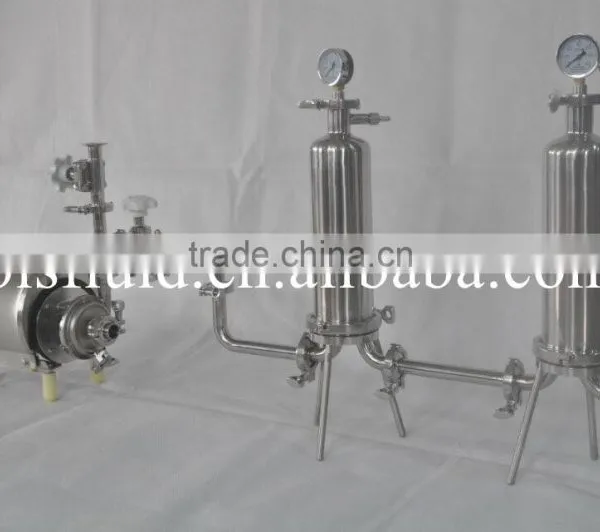

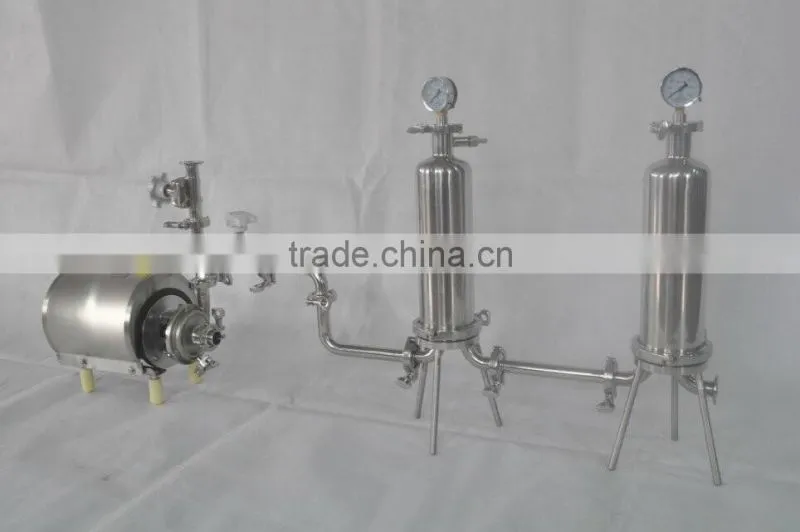

    BLS highly effective filter system is mailnly consists of two sets microporous membrane filters, sanitary centrifugal pump and two pieces clamp diaphragm valves and pipes etc.

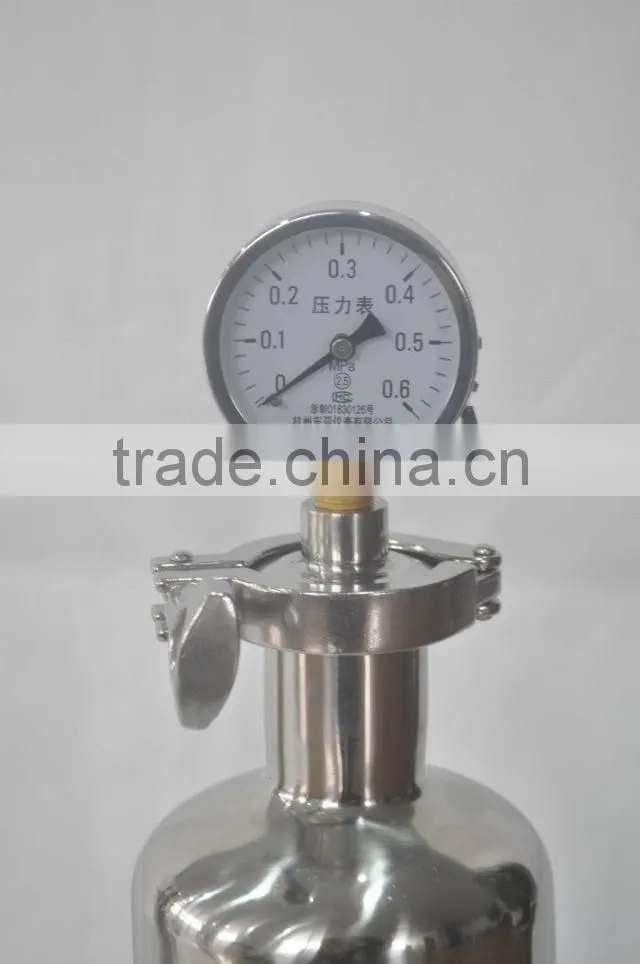

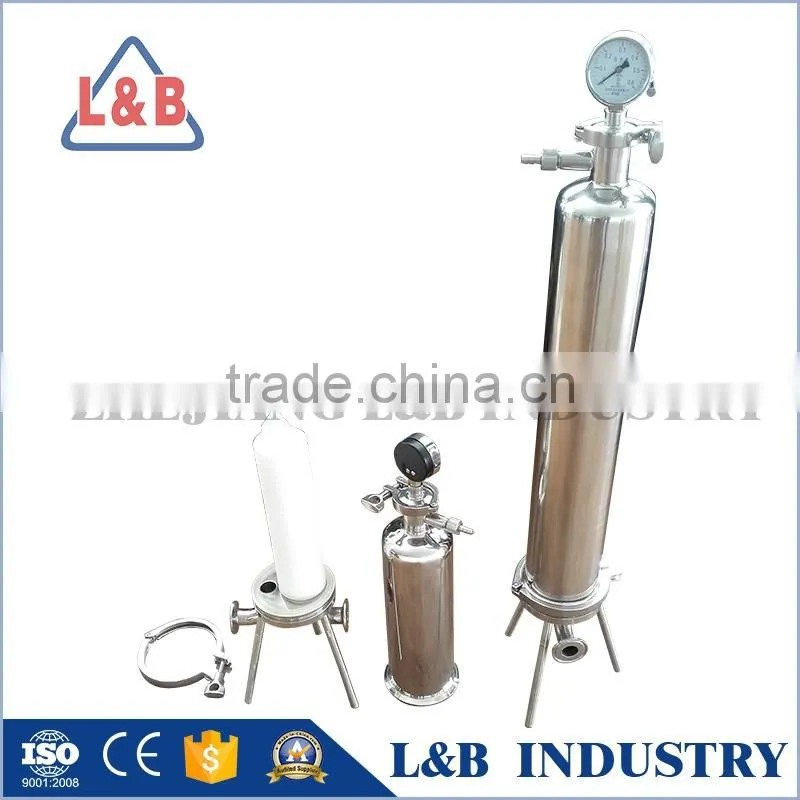

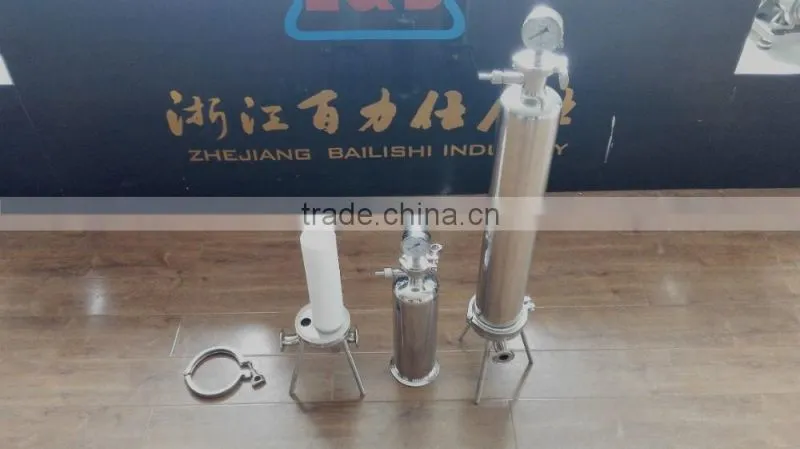

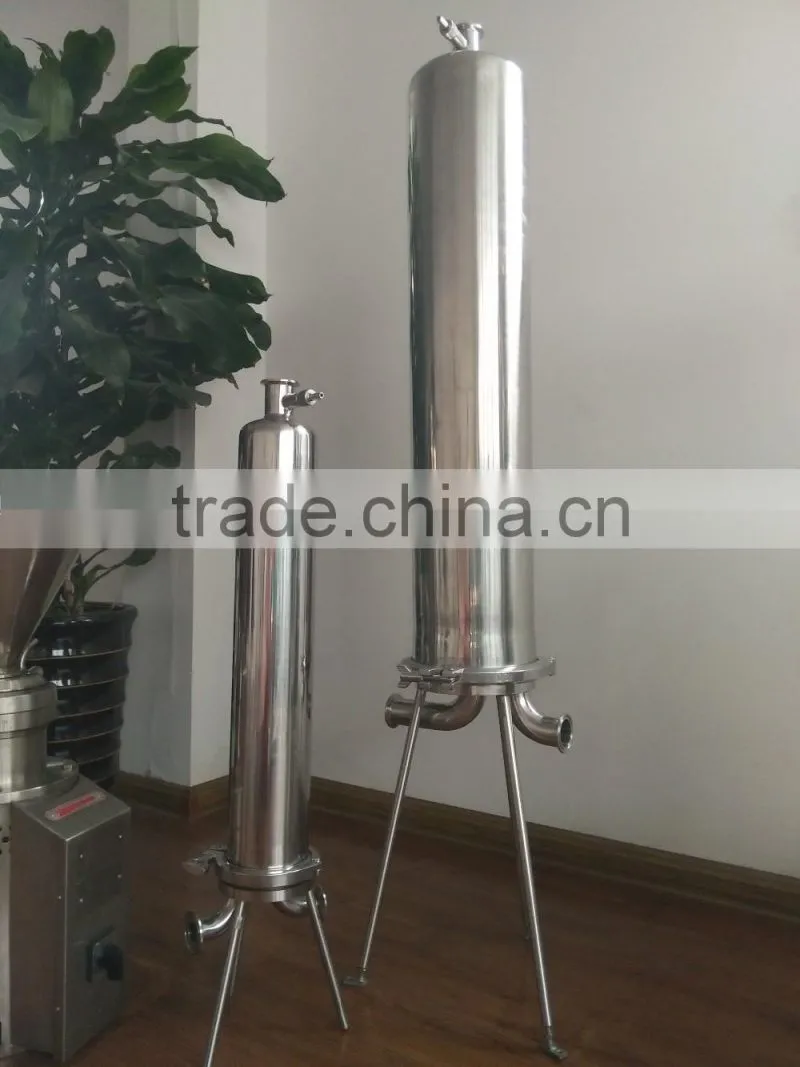

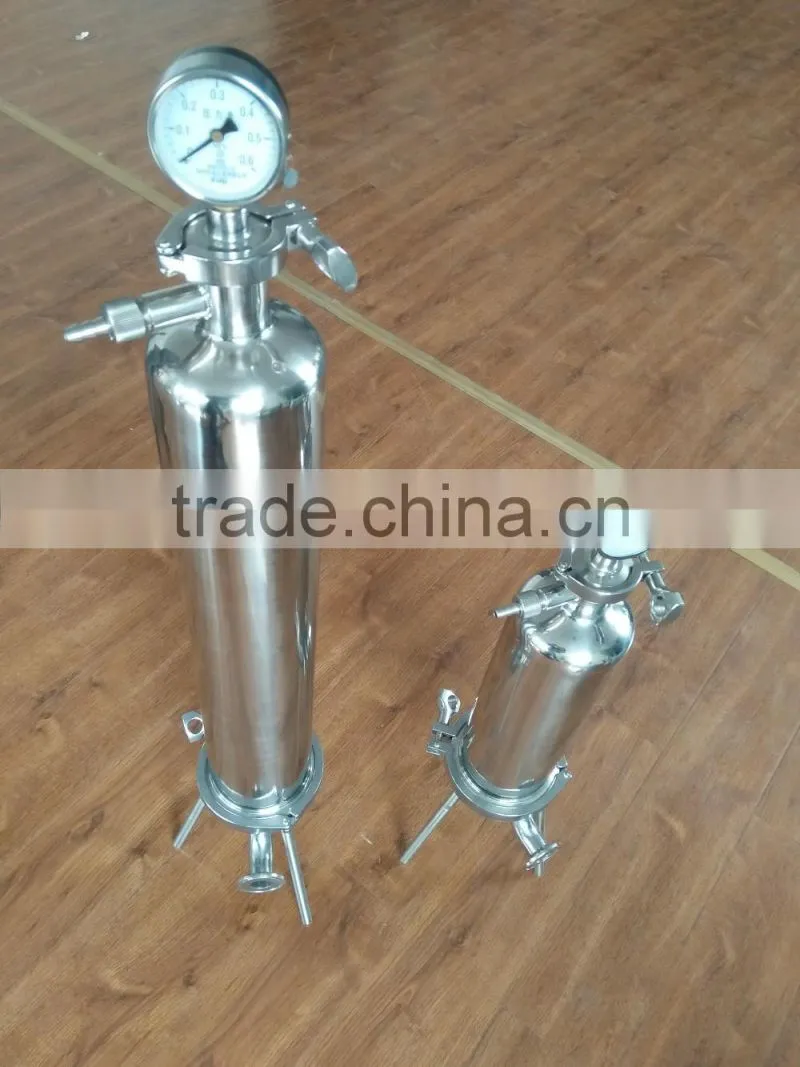

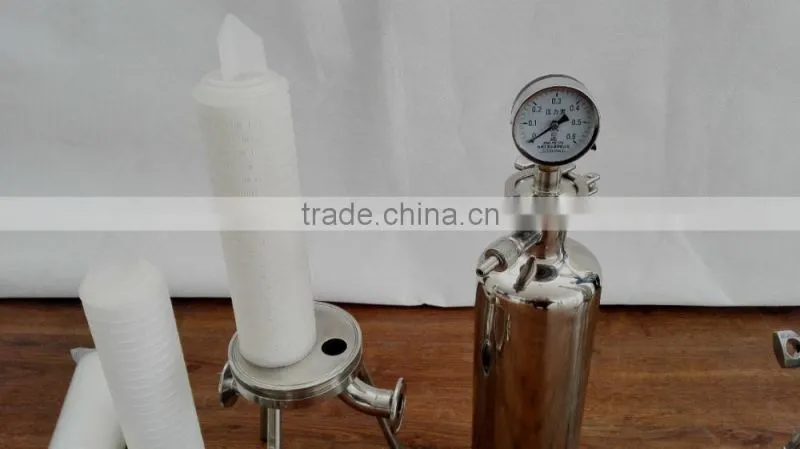

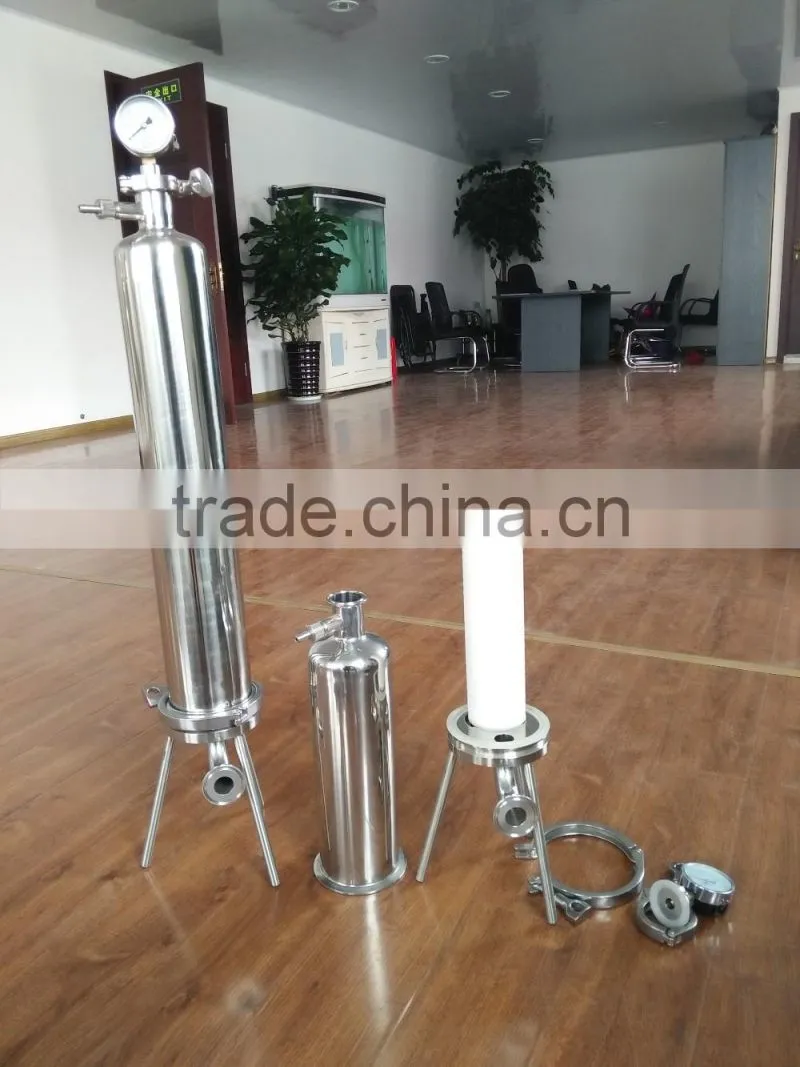

Microporous membrane filter:

    F-GSL Series filter is a high-end liquid filter which main use in the filed of life science.
    Adopt to the sanitary and GMP requirements completely, which can provide excellent durability and the largest corrosion resistance.
    Structure is sanitary without dead angle, the filter drain valve, vent valve, inlet&outlet of material liquid and filter plugs are easy to clean, can be sterilized completely, drain liquid completely, without residual liquid.

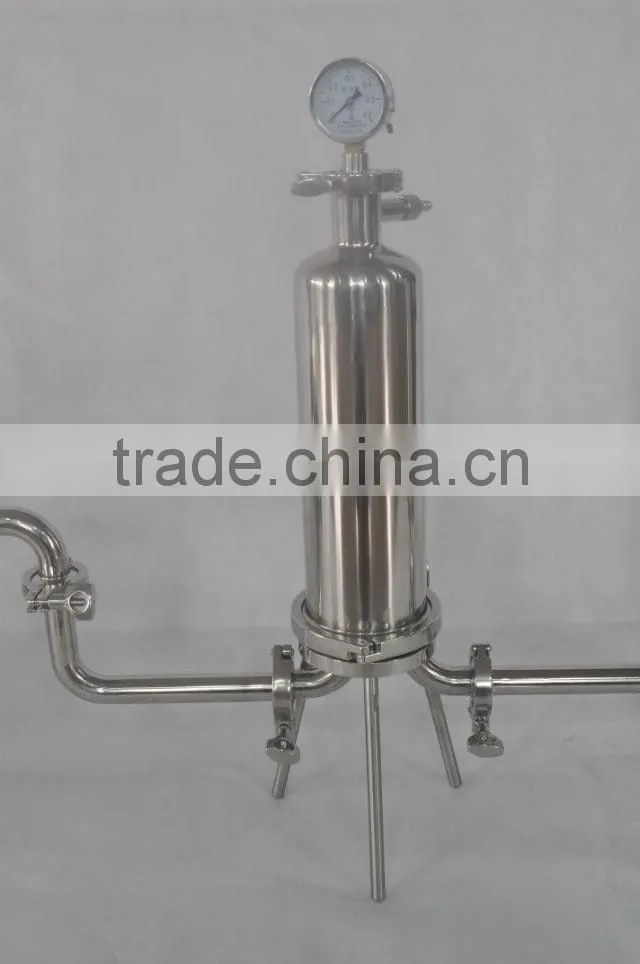

Microporous membrane filter
Model table
Filter element
No.
Filter element
length
Material of
shell
Filter element
interface
Connect way
Material of
seal
F-GSL
1
5
A
K
T
S
1=1
element
05=5"
A=304
K=226
T=
Tri-clamp
S=Silicone
rubber
10=10"
B=316L
S=Flat
pressing
F=Flange
V=Fluorine
rubber
20=20"
L=
Threaded
F=PTEE
30=30"
E=EPDM

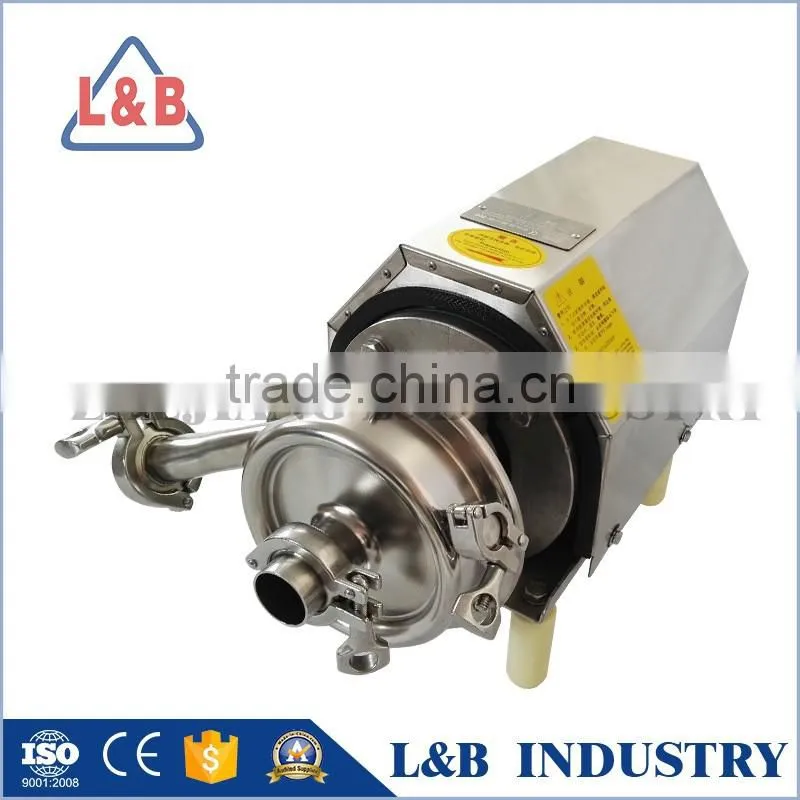

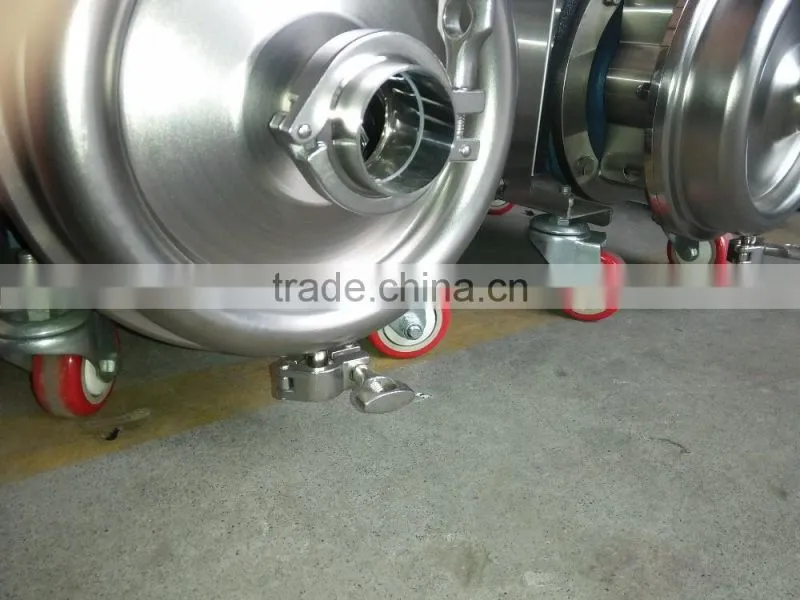

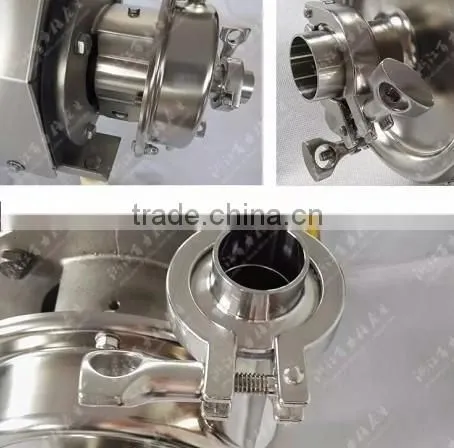

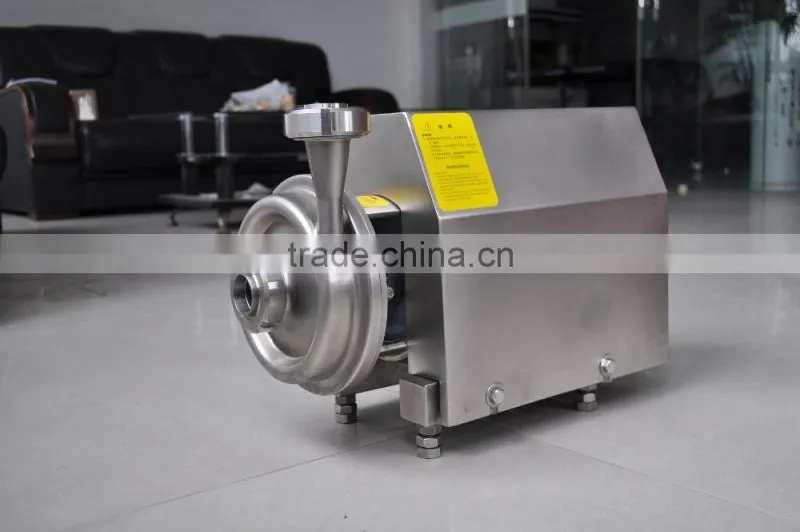

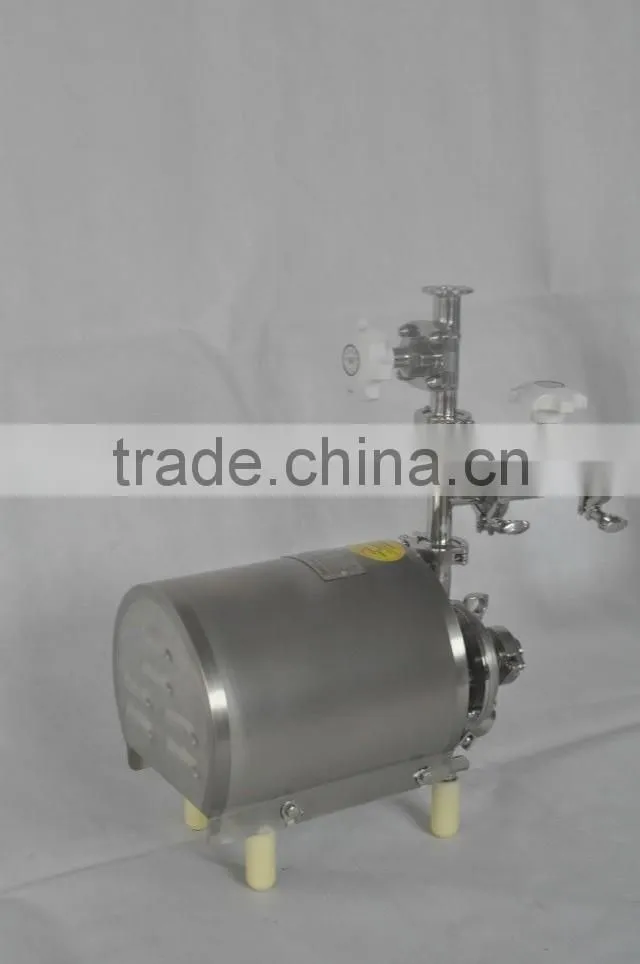

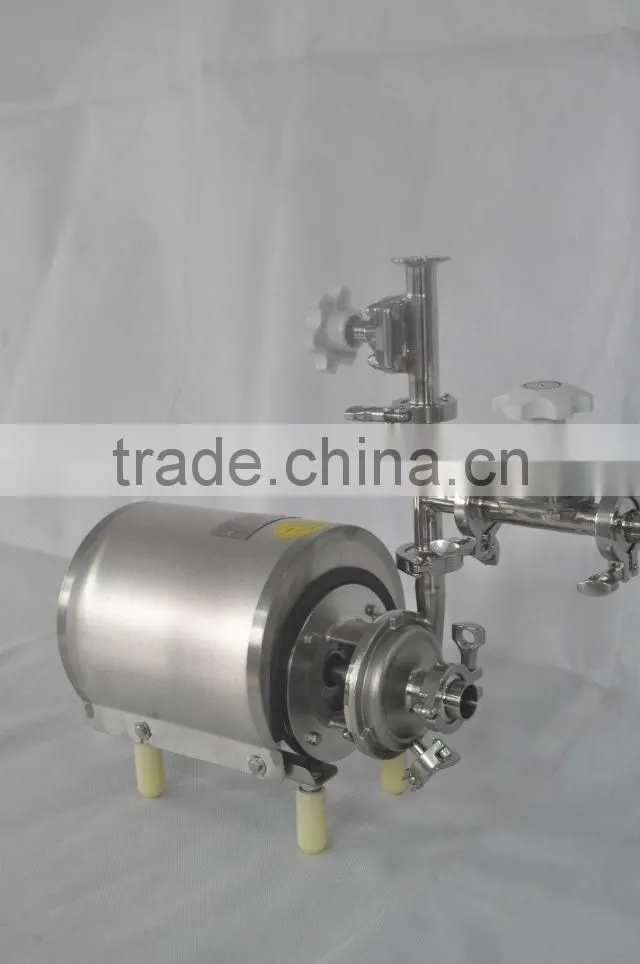

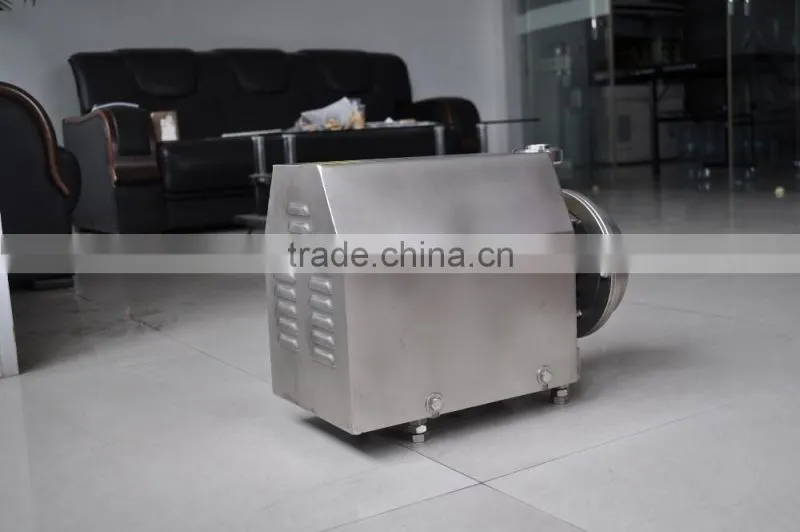

Sanitary centrifugal pump:

     This series pump is single suck, single phase, centrifugal-style sanitary pump, mainly used for deliver milk, beverage, alcoholic drink and a various of liquid.

    It’s an indispensable deliver equipment in industries such as foodstuff, chemical, pharmacy etc. It’s max temperature of absorb is about 80℃. And high delivery lift pump especially suit for pipeline sterilization, acidophilus milk equipment, CIP cleaning and used for larger resistance system.This pump is mainly composed of pump body, pump deck, motor etc. Each part link with nuts. At the bottom of pump deck, the foot of pump can be adjusted, it convenience setup, don’t need static setup foundation. In process of setup can according with different needs to setup outline pipe vertical or ration with 60 degree. This series pump in process of design adopt smooth transition, rigidity structure, think wall design.

sanitary BLS centrifugal pump
Model
Flow (m3/h)
Pump head (m)
Power (kw)
Inlet dim (mm)
Outlet dim (mm)
Remark
BLS03-15-0.75
3
15
0.75
38
32
ABB
BLS03-20-1.1
3
20
1.1
38
32
ABB
BLS05-24-1.5
5
24
1.5
51
38
ABB
BLS05-32-2.2
5
32
2.2
51
38
ABB
BLS10-24-2.2
10
24
2.2
51
38
ABB
BLS10-32-3
10
32
3
51
38
ABB
BLS15-24-3
15
24
3
51
51
ABB
BLS20-24-4
20
24
4
51
51
ABB
BLS20-35-5.5
20
35
5.5
63.5
51
ABB
BLS30-24-5.5
30
24
5.5
63.5
51
ABB
BLS30-35-7.5
30
35
7.5
63.5
51
ABB
BLS40-24-7.5
40
24
7.5
76
63.5
ABB
BLS50-24-7.5
50
24
7.5
76
63.5
ABB
BLS50-35-11
50
35
11
76
63.5
ABB
BLS80-30-15
80
30
15
89
76
ABB
BLS80-40-18.5
80
40
18.5
102
89
ABB

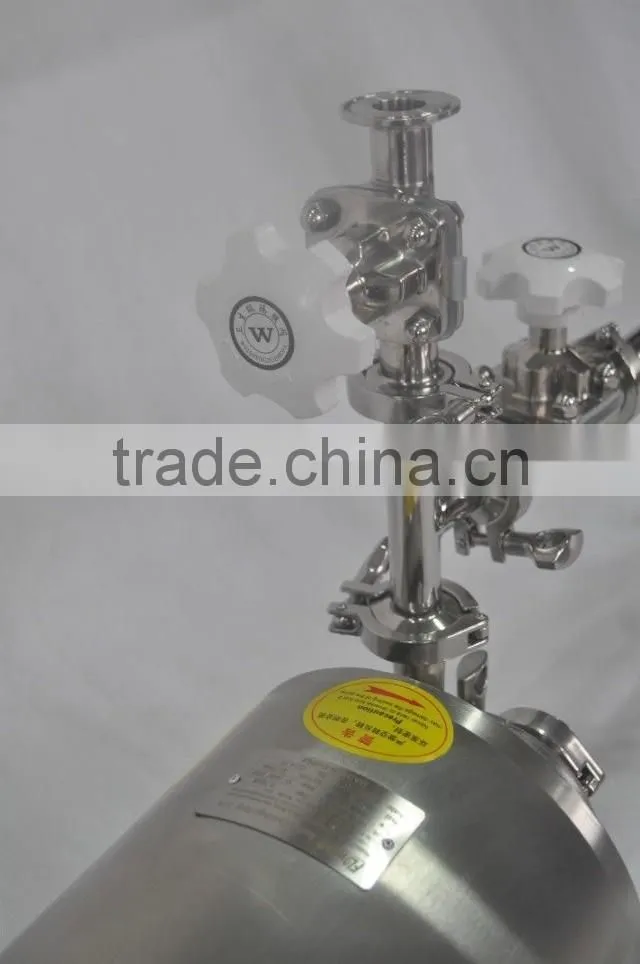

Detailed Images
Certifications
Packing & Delivery

Package and delivery:

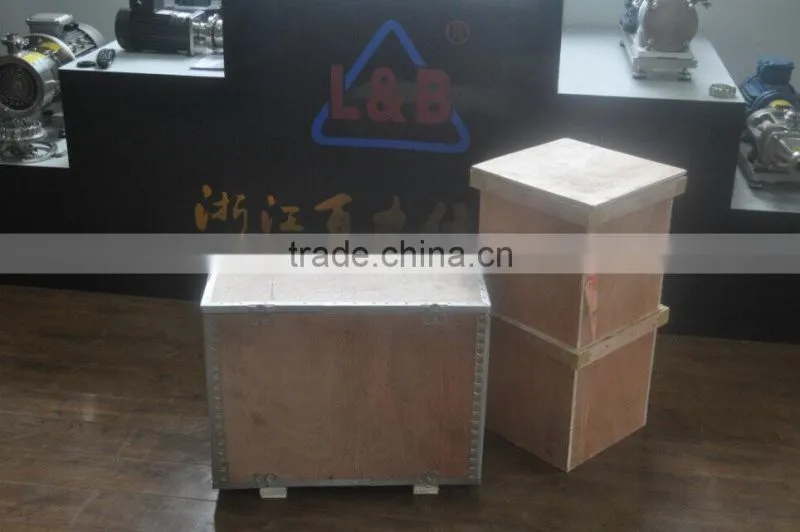

Plywood case package of sanitary stainless steel liquid filter housing machine.

We deliver machine with 15 working days after received 30% deposit or full payment by air or ship.

Company infomatiom

Zhejiang L＆B Fluid Equipment co., Ltd:

a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).


We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.


FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
Related Products

Hot sale china supplier food grade electric centrifugal pump/water pump

water filter system/ water filter equipment/ stainless steel 10" filter housing

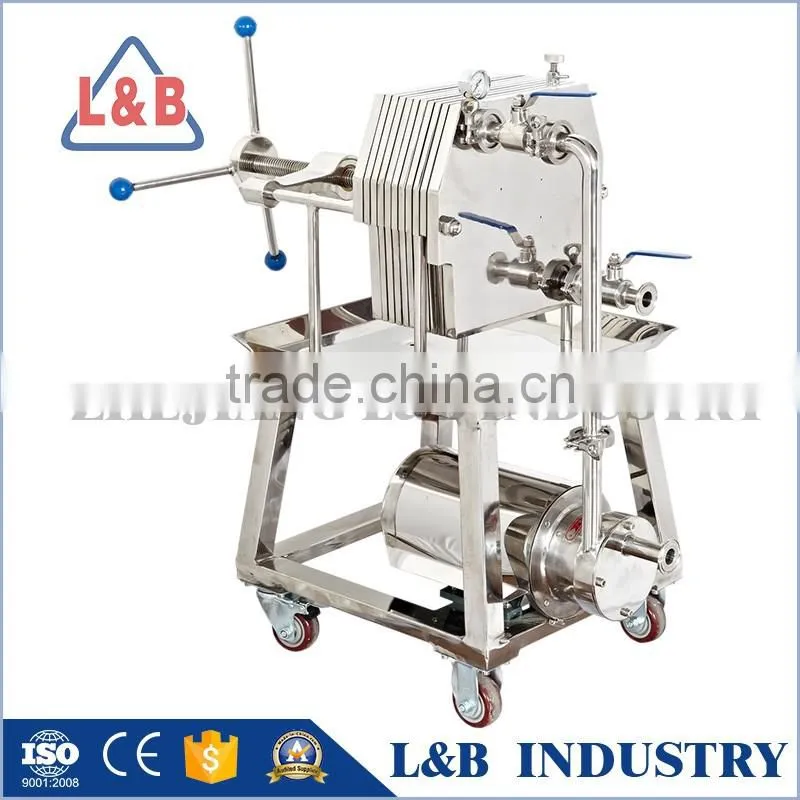

Beer plate and frame press filter
