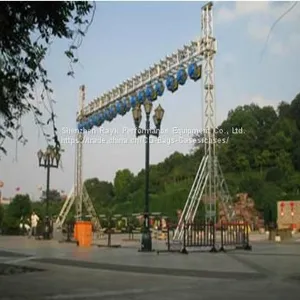

Help CenterPerformance Lighting Truss Aluminum Spigot Truss for Wedding
Related Products
-
Portable Stage High Quality Plywood Stage Platform for Different EventsNegotiableMOQ: 1 Set -
Portable Pipe and Drape Kit for Wedding BackdropNegotiableMOQ: 1 Set
-
2017 Pipe & Drape Solutions for Party Reception WeddingNegotiableMOQ: 1 Set
-
Portable Dance Floor /Used Dance Floor for Sale/Plywood Dance FloorNegotiableMOQ: 1 Set
-
Pipe and Drape Trade Show, Pipe and Drape School, Pipe and Drape ChurchNegotiableMOQ: 1 Set
Product Description
RK is specialized in manufacturing performance stage equipment, aluminum truss, stage truss, lighting truss, spigot truss, stage rooftruss, aluminum stage, portable stage, folding stage, flight case, dancing floor. Cable ramp, stage lightting
Exhibition truss for show and product advertisement
Packaging & Delivery
Packaging Detail: Carton, flight cases
Delivery Detail: 5-7days after the confirmation of order
Specifications
Aluminum lighting stage truss stand:
1. Made by Aluminum
2. Widely used for exhibition
3. Quickly Assembly
4. Good looking
RK TRUSS
Type: Spigot truss and bolt truss
1: Spigot truss:
Spigot truss system is defined by the connection of the trussing segments by spigots. There is always a female set of spigot connectors on one side of the truss and a male set on the other so the segments can be put together easily. The connection is secured by special spigot truss pin
Custom lenghts and shapes in metric and imperial sizes are available on request
2: Bolt truss:
Bolted truss represents a traditional type of connection. The trussing segments are connected by bloting aluminum plates together
Custom lenghts and shapes in metric and imperial sizes are available on request
Material: Hard pressed extruded aluminium 6061-T6 or 6082-T6
Shape: Square/triangle/ladder/circle
Size for option:
SIZE MAIN TUBE VICE TUBE LOADING CAPACITY SPAN
250*250mm 50*3mm 25*2mm 350KG 10M
300*300mm 50*3mm
30*2mm 375KG 14M
350*350mm 50*3mm 50*2mm 450KG 15M
400*400mm 50*3mm 50*2mm 475KG 16M
450*450mm 50*3mm 50*2mm 500KG 17M
500*500mm 50*3mm 50*2mm 550KG 19M
500*600mm 50*3mm 50*2mm 600KG 20M
760*520mm 50*4mm 50*2mm 1000KG 22M
760*600mm 50*4mm 50*2mm 1500KG 26M
RK Stage
Regular size: 1.22m*1.22m or 1.22m*2.44m (other size can be ordered)
Frame Material: Aluminum alloy
Topping Material: Carpet. Plywood. Organic glass. Tempered glass.
| . | Equipped with connecting hardware |
| 2. | 220mm overall width |
| 3. | 35mm outer diameter main tubing |
| 4. | 8mm diagonal bracing |
| 5. | 1.6mm wall thickness |
| 6. | Material: 6082-T6 |
| 7. | Packing: Carton |
| 8. | Available length: 0.5M,1.0M,1.5M,2.0M,2.5M,3.0M,3.5M,4.0M |
| Model No. | LENGTH |
| RK-SQ22050 | 0.5m |
| RK-SQ22100 | 1.0m |
| RK-SQ22150 | 1.5m |
| RK-SQ22200 | 2.0m |
| RK-SQ22250 | 2.5m |
| RK-SQ22300 | 3.0m |
| RK-SQ22350 | 3.5m |
| RK-SQ22400 | 4.0m |
