Y-type Clamped Stainless Steel Basket Strainer

Y-type Clamped Stainless Steel Basket Strainer thumbnail-1
Y-type Clamped Stainless Steel Basket Strainer thumbnail-2
Y-type Clamped Stainless Steel Basket Strainer thumbnail-3
Y-type Clamped Stainless Steel Basket Strainer thumbnail-4
Y-type Clamped Stainless Steel Basket Strainer thumbnail-5
Y-type Clamped Stainless Steel Basket Strainer thumbnail-6
Y-type Clamped Stainless Steel Basket Strainer photo-1
Y-type Clamped Stainless Steel Basket Strainer photo-2
Y-type Clamped Stainless Steel Basket Strainer photo-3
Y-type Clamped Stainless Steel Basket Strainer photo-4
Y-type Clamped Stainless Steel Basket Strainer photo-5
Y-type Clamped Stainless Steel Basket Strainer photo-6
US$ 80 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, clamped stainless steel basket strainer
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Zhejiang L And B Fluid Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Other, clamped stainless steel basket strainer
Pressure Medium Pressure
Power Manual
Material Stainless Steel
Temperature of Media Normal Temperature
Media Water
Port Size 1"-4"
Place of Origin Zhejiang, China
Model Number BLS
Brand Name BLS
Application Other, stainless steel basket strainer
Product Description

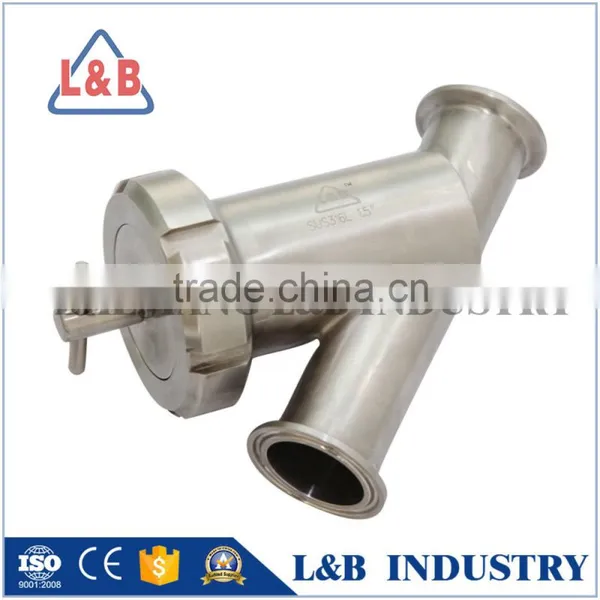

Y-type Clamped stainless steel basket strainer

1.The Stainless steel Y type filter is a process line accessory to be used for clear or viscous liquid products from group
2. It has a wide range of applications in the food, chemical, pharmaceutical, cosmetics and biotechnology industries

when it is necessary to separate solid particles from a fluid. For example, to protect a pump or any other sensitive

 installation equipment.

Material:
304SS Or 316L SS
Size
1-4 Could be customized
Gasket Material:
SILICONE, PTFE
Application:
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Surface Finish
Finish Type
Mechanical Polishing, Electrolytic Polishing, Picking
Surface Roughness
Mirror：Ra≤0.4μm
Operating Conditions
Max Operating Pressure
0.6MPa, 1.0MPa
Max Operating Temp
150℃
Material
Filter shell
304,0316L
Screen filter
304,0316L
Quick-open
304
O-ring
EPDM, PTFE, Viton, Silicone
Connection
Shell connection
Flange (Eyebolt), Tri-clamp
In-out N1, N2
2’’/2.5’’/3’’ Tri-clamp, Quick-open, Flange
Detailed Images
Packing & Delivery
Certifications
Our Company

Zhejiang L＆B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.

FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
