Step Motor Controller With RS232
US$ 90 - 180
/ Piece
10 Pieces(Min. Order)
- ShangHai
- T/T
You May Like
-
Stepper Motor Controller With RS232
-
Serial Port RS232 Interface UIM24104-MS Stepper Controller
-
Serial Port RS232 Interface UIM24104-MS Stepper Motor Controller
-
UIM 241 Stepper Motor Controller With RS232 Interface
-
UIROBOT UIM 241 Step Motor Controller With RS232 Interface
-
Intelligent Step Motor Controller
Product Details
| Place of Origin | Shanghai, China | Brand Name | UIROBOT | |
| Model Number | UIM241 |
Product Description
Specifications

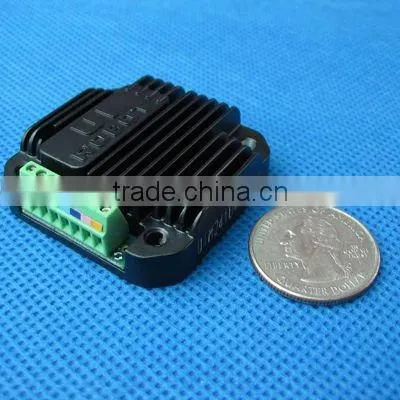

Miniature size 42.3mm*42.3mm*13.5mmFit onto motors seamlessly
Stepper Motor Controller with RS232
Stepper Motor Controller with RS232
Miniature Integral Design
- Miniature size 42.3mm*42.3mm*13.5mm
- Fit onto motors seamlessly
- Die-cast aluminum enclosure, improving heat transfer and durability.
Motor Drive Characteristics
- Wide supply voltage range 12 ~ 40VDC
- Output current 4/8A, instruction adjustable
- Full to 16th micro-step resolution
- Dual full H-bridge with PWM constant current control
- Accurate micro-stepping and current control, 6600 RPM max speed for NEMA 17 motor (half-step) and 4000 RPM for NEMA 17/23 motor (quad-step).
RS232 Interface
- RS232 three-wire serial communication
- Max baud rate 57600 bps
Embedded DSP Microprocessor
- Embedded 64-bit calculation precision high-performance digital signal processing micro controller
- Absolute position counter, reset by instruction or sensor input
- Advanced motion control module, from 0 to 4000 RPM in 0.25s and from 0 to 6600 RPM in 0.5s (for NEMA17/23)
- 2 sensor input ports, can be configured as 2 digital or 1digital 1 analog input ports(12bit)
- 8 programmable real-time event-based change notifications (similar to interrupters)
- 5 programmable actions triggered by 6 sensor events
- Simple, intuitive, rich instructions
- User-friendly interface
