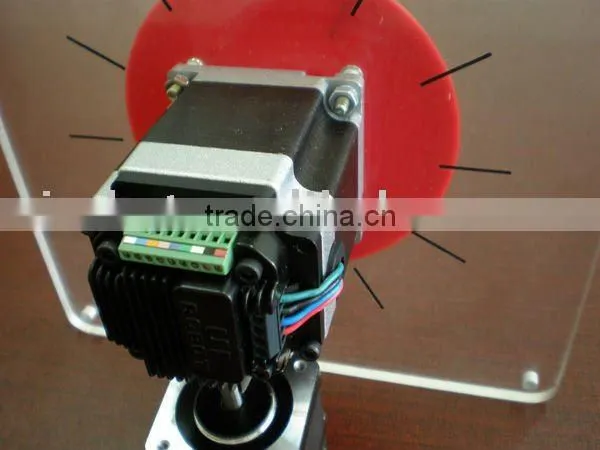

Serial Port RS232 Interface UIM24104-MS Stepper Controller
US$ 1 - 200
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
UIROBOT
Model Number:
UIM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Serial Port RS232 Interface UIM24104-MS Stepper Motor ControllerUS$ 1 - 100MOQ: 1 Piece -
UIM 241 Stepper Motor Controller With RS232 InterfaceUS$ 90 - 180MOQ: 10 Pieces
-
UIROBOT UIM 241 Step Motor Controller With RS232 InterfaceUS$ 90 - 180MOQ: 10 Pieces
-
Intelligent Step Motor ControllerUS$ 90 - 180MOQ: 10 Pieces
-
Mach3 Compatible Stepper Driver for Cnc MachinesUS$ 90 - 180MOQ: 10 Pieces
Place of Origin
Shanghai, China
Brand Name
UIROBOT
Model Number
UIM
Specifications
Nema17 frame size stepper controller1.5-4 amps phase current
10-40VDC power supply
Serial port with RS232 interface
- Nema 17 frame size miniature stepper controller
- 10-40VDC wide range power supply
- 1.5-4 amps per phase adjustable output current
- Serial port PWM chopper constant current stepper controller with RS232 interface for bipolar and unipolar stepper motors
- Free software for demostration
- With die-cast aluminium Heat Sink for heat radiation
4 amps settable output phase current 8 amps settable output phase current UIM24104 UIM24108 UIM24104-M
UIM24108-M UIM24104-S UIM24108-S UIM24104-M-S UIM24108-M-S
| Driving Mode | RS232 interface |
Drive Voltage
Given a target wattage (which is the power you need from the motor), the voltage needed to drive the motor is that wattage, divided by the rated amperage of the motor.
DriveVolts = Watts / Amps
The voltage on the motor label, is the steady state voltage, or the voltage which the motor can support when it is sitting at rest, which will be much less than the voltage used when the motor is turning. The maximum voltage that the motor can take when turning, the maximum safe drive voltage for the motor, can be estimated from the motors Inductance rating (if known) by simply multiplying it by 32.
MaxVolts ~= Inductance (in mH) * 32
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
