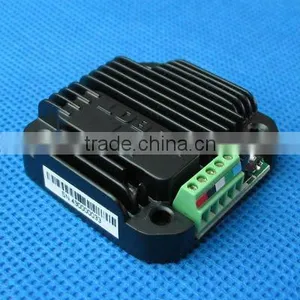

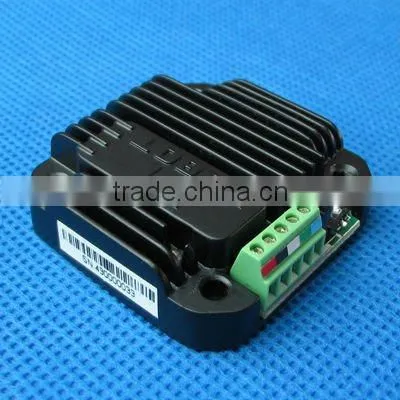

UIM24302-b Self-pulsing Stepper Controller
US$ 90 - 180
/ Piece
10 Pieces(Min. Order)
- ShangHai
- T/T
You May Like
-
Self-pulsing Step Controller
-
UIROBOT Self-pulsing Step Controller
-
UIM24302 Smart Self Pulsing Miniature Integrated Stepper Motor Controller
-
Integrated Stepper Motor Controller
-
UIM24302-A Smart Self Pulsing Miniature Integrated Stepper Motor Controller
-
UIM24302-B Smart Self Pulsing Miniature Integrated Step Motor Controller
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shanghai, China | Brand Name | UIROBOT | |
| Model Number | UIM24302 |
Product Description
Specifications
Miniature size 42.3mm*42.3mm*13.5mmFit onto motors seamlessly
stepper motor driver
UIM24302-B Self-pulsing Stepper motor driver
Miniature Integral Design
− Miniature size 42.3mm x 42.3mm x 16.5mm (L x W x H)
− Integrally designed to fit onto motors seamlessly, as well as work standalone
− Die-cast aluminum enclosure, improved heat dissipation and durability
− Miniature size 42.3mm x 42.3mm x 16.5mm (L x W x H)
− Integrally designed to fit onto motors seamlessly, as well as work standalone
− Die-cast aluminum enclosure, improved heat dissipation and durability
Motor Driver Features
− 10 - 30VDC input voltage, Max 2A adjustable phase current
− 16th micro-stepping
− Dual full H-bridge with PWM constant current control
Control Features
− Embedded microcontroller
− Self pulse generation, automatic run on power-up
− Speed control through on-board trimmer 0.15 - 1900 RPM (UIM24302A)
− Speed control through external potentiometer 0.15 - 1900 RPM (UIM24302B)
− Speed control through 0 - 5V voltage input 0.15 - 1900 RPM (UIM24302B)
− Acceleration function
− Switch control run/stop, direction, enable/shutdown
− Automatic current reduction / power saving
