Digital Mini Microcomputer Temperature Controller -40~120 Degree C Range + 2M Wire Length + NTC Sensor Type
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
E03ETC-100+
Theory:
Temperature Controller
Accuracy:
+/-1 deg.C (-40 to 70 deg.C);< less than +/-2 deg.C at others
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Digital Micro-computer Hygrostat Relative Humidity Controller 0%~ 99% RH Range + 2M Length Sensor WireNegotiableMOQ: 1 Piece -
Digital Microcomputer Refrigeration Temperature Controller Compressor Defrost Fan + NTC PTC Probe TypeNegotiableMOQ: 1 Piece
-
Digital Mini Microcomputer Temperature Controller Refrigerator Thermostat 220VNegotiableMOQ: 1 Piece
-
2 Wireless Sensors Weather Station WWVB DCF RCC Indoor Outdoor Temperature Thermometer With Air Presurre Trend IndicatorNegotiableMOQ: 1
-
3 Wireless Sensors Weather Station Indoor Outdoor Temperature Thermometer With WWVB DCF RCC ReceiverNegotiableMOQ: 1
Model Number
E03ETC-100+
Theory
Temperature Controller
Accuracy
+/-1 deg.C (-40 to 70 deg.C);< less than +/-2 deg.C at others
Specifications
A mini micro-computer Temperature with measuring and controlling range of -40~120 degree C & NTC sensor type.Main Function:
- Temperature measurement and control
- Start-up delay protection
- Temperature calibration

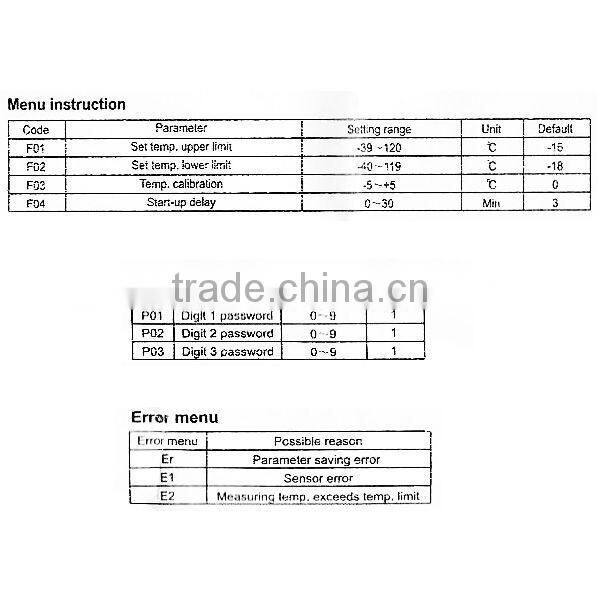

- Input password to adjust parameter
Size:

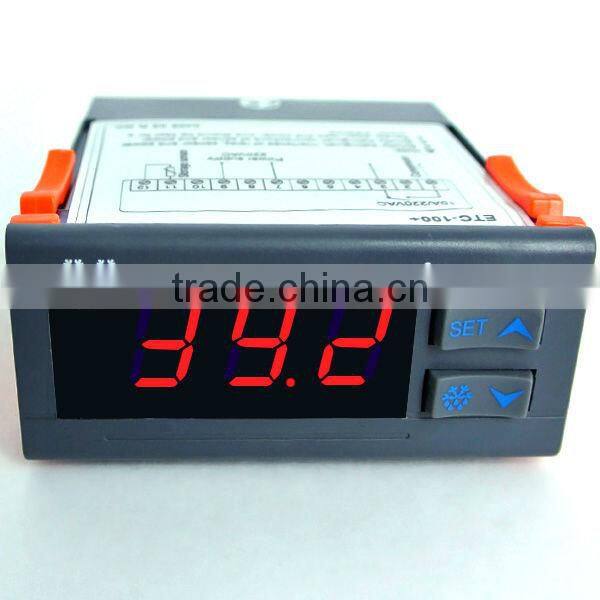

- Front panel size : 75 (L) x 34.5 (W)mm
- Product size : 75 (L) x 34.5 (W) x 85 (D)mm
- Mounting size : 71 (L) x 29 (W)mm

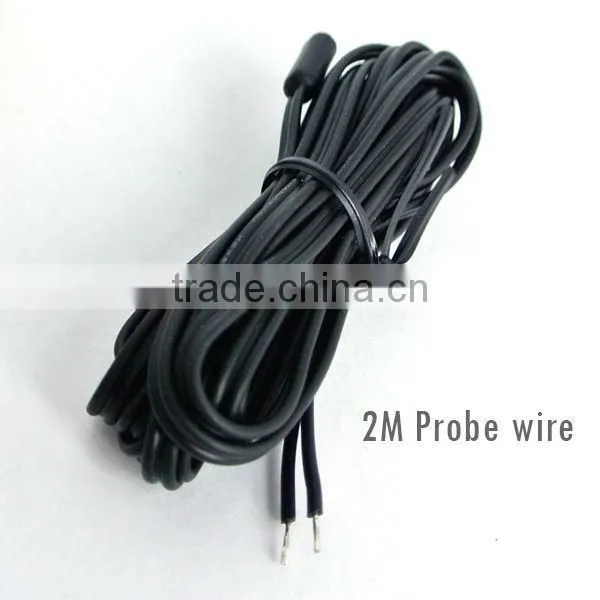

- Sensor Length : 2.0M (include the probe)
Specifications:
- Sensor type : NTC sensor (10KΩ/25, B value 3435K)
- Power supply : 220VAC ±10%-15% , 50/60Hz
- Power consumption : ≤3w

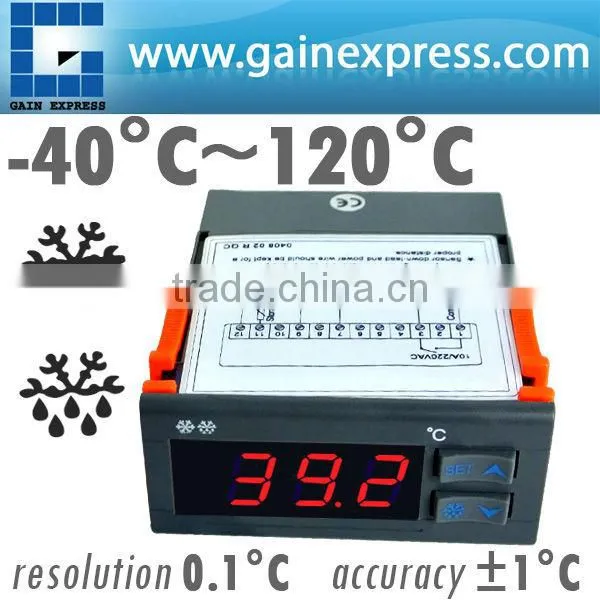

- Temperature measuring and controlling range : -40~120oC
- Resolution : 0.1°C at (-40°C~99.9°C) ; 1°C in the other range
- Accuracy : ±1°C (-40 to 70°C);< less than ±2°C at others

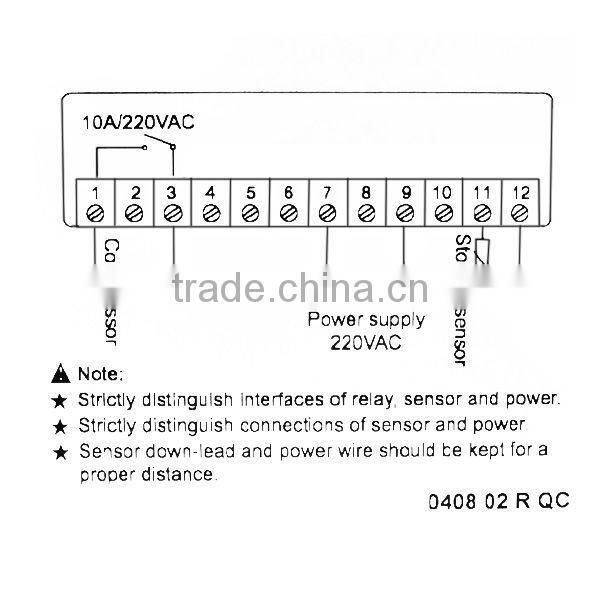

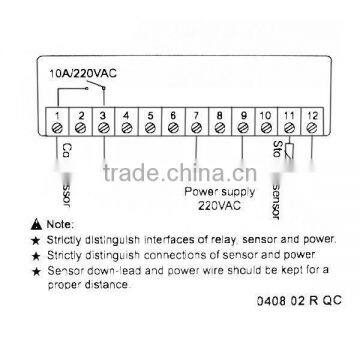

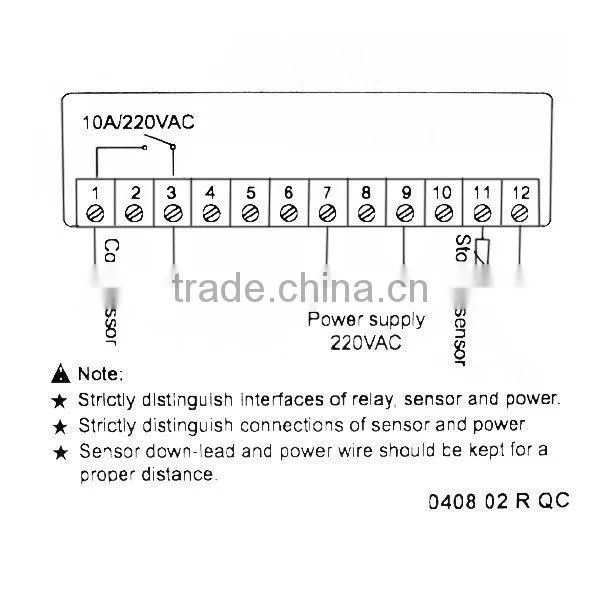

- Relay contact capacity :10A/220VAC, the max load it can drive is 0.5HP/220VAC
- Ambient temperature : 0~60oC
- Storage temperature : -30~75oC
- Relative humidity : 20%~85% (No condensate)
Functions:
-
Refrigeration functions:
- Refrigeration mode: when the measured temperature is ≥ the upper temperature limit, refrigeration starts,and when the measured temperature is ≤ the lower temperature limit,refrigeration stops.
-
Start-up delay function :
- When electrified for the first time,if the actual measuring temperature is ≥ the upper temperature limit ,the unit will not work at once ,refrigeration can start only until running out of the delay time.If the interval between two start-up ≥ start up delay protection time ,the unit may work at once if needed; if the interval between two start-up < start-up delay protection time the unit will not work until running out of the delay time.
-
Alarm function:
- Sensor error alarm : After electrified , when sensor error ,screen will blinkingly display E1 with buzzer humming.
- Alarm when exceeding the measuring range : when the measuring temperature is higher than 120°C or lower than -40°C,LED will blinkingly display E2 with buzzer hummiong.

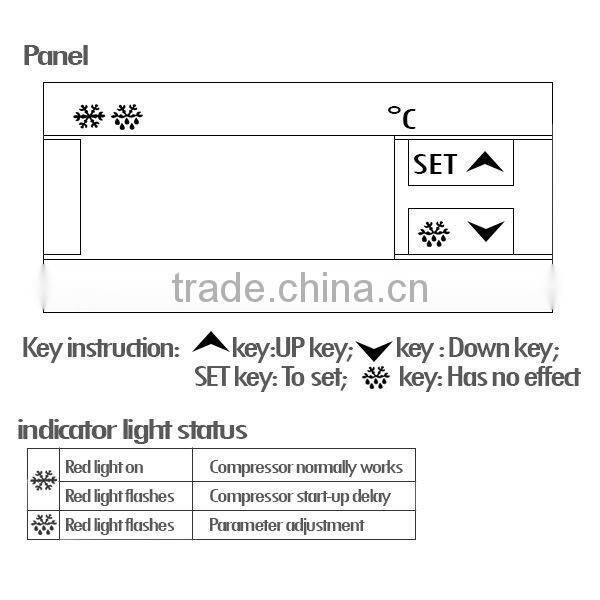

- Alarm muting : Under alarm status,press any key to mute the alarming noise without changing the screen displaying status.

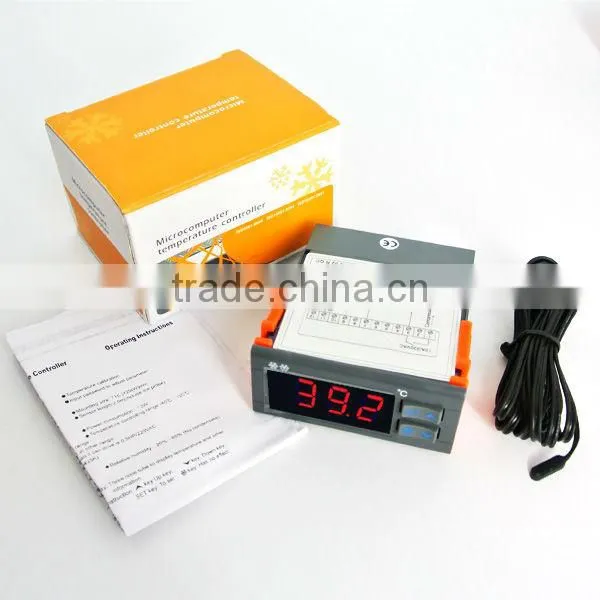

Set Includes:
- 1 x Digital Microcomputer Temperature Controller
- 1 x English Instruction Manual
- 1 x 2M Length Wire Sensor
- Gift box
