Motor 3 Phase Rotation Sequence Indicator Conveyors Pumps Rotary Portable Tester
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Generic
Model Number:
E04-035
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200ATC C Antifreeze/Battery/Cleaning Fluid Refractometer LEDNegotiableMOQ: 1 Piece -
58-90% Portable Brix Refractometer, Built-in LED LightNegotiableMOQ: 1 Piece
-
0-32% Brix Refractometer ATC With Built-in LED Light Sugar Juice Fruits EtcNegotiableMOQ: 1
-
Salinity Refractometer With Built-in LED Light Aquarium 0~10% ATCNegotiableMOQ: 1
-
New Refractometer Design for Alcohol Liquor Content 0-80% w/ ATC TestingNegotiableMOQ: 1
Brand Name
Generic
Model Number
E04-035

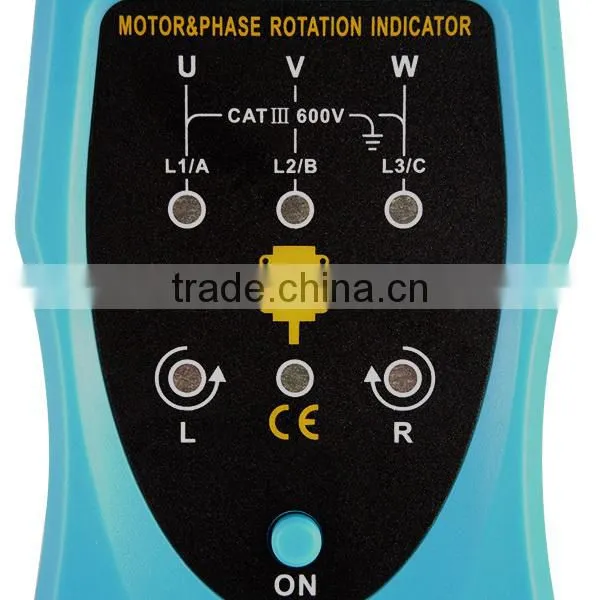

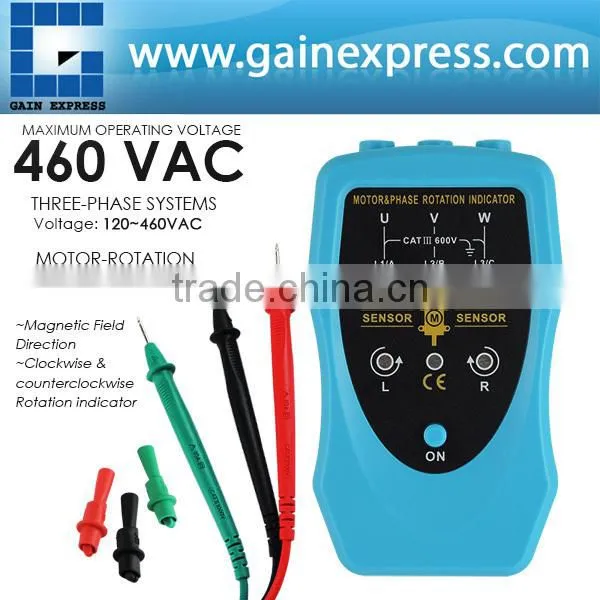

This Motor and Phase Rotation Indicator is a handheld, battery-operated instrument multi-functional instrument designed to detect the rotational field of three-phase systems and determine motor-rotation direction, which is a must for any plant maintenance staff. It quickly and clearly display the result by its LED indicators.

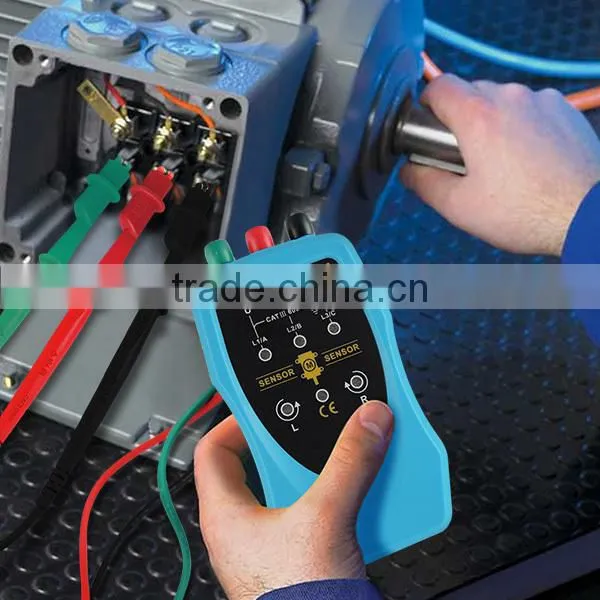

It quickly identifies the proper sequencing for three phase power. This is also an ideal tool for measuring proper rotation of motors, conveyors, pumps and other electrical devices interconnected on the power line system before installation.
Features:
- Check motor turn direction (contact and non-contact method)
- Determine Phase Sequence Rotary Field Direction
- Determine Magnetic Field Direction
- Clockwise and counterclockwise Rotation indicator
- Accurate and fast measurement
- Handheld and battery operated
Specifications:
- Maximum Operating Voltage (Ume): 460 VAC
- Determining Phase Sequence
- Normal Voltage: 120~460VAC
- Frequency range (fn): 2~400Hz
- Test Current (per phase): <3.5mA
- Checking Motor Turn Direction (non-contact method)
- Voltage Range: 1~460VAC
- Frequency range (fn): 2~400Hz
- Checking Motor Turn Direction (contact method)
- Nominal Voltage Range: 1~460VAC
- Nominal Test Current (per phase): <3.5mA
- Frequency Range (fn): 2~400Hz
- Operating Environment:
- Temperature: 0~40°C
- Altitude: 2000m
- Relative Humidity: 15~80%
- Storage Environmenet:
- Temperature: -10 ~50°C
- Relative Himidity: <85%
- Protection Level: CAT III 600V

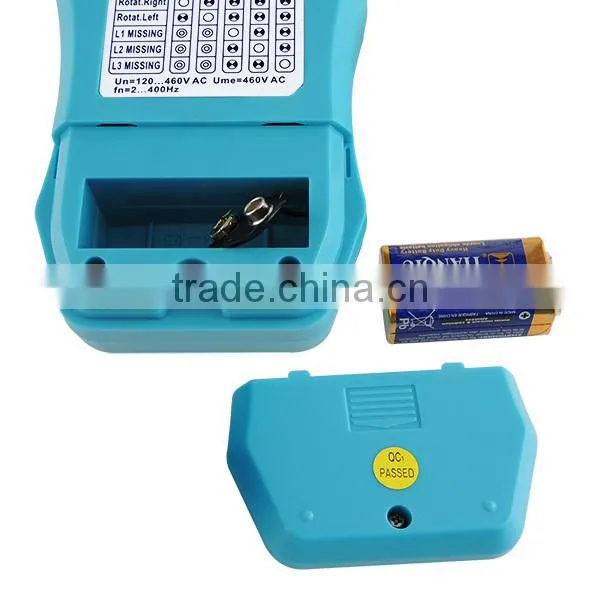

- Battery: 1 x 9V vatter, 6F22 or equivalent
- Current Consumption: max 20mA
- Size: 141 x 84 x 36mm
- Weight: about 180g (including battery)

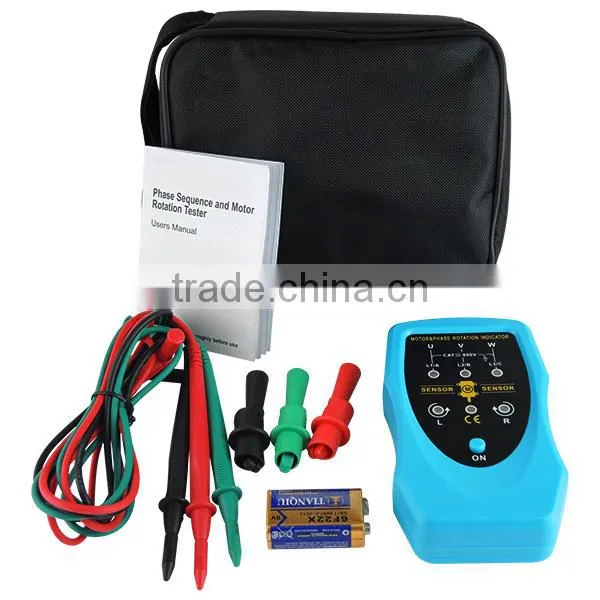

Set Includes:

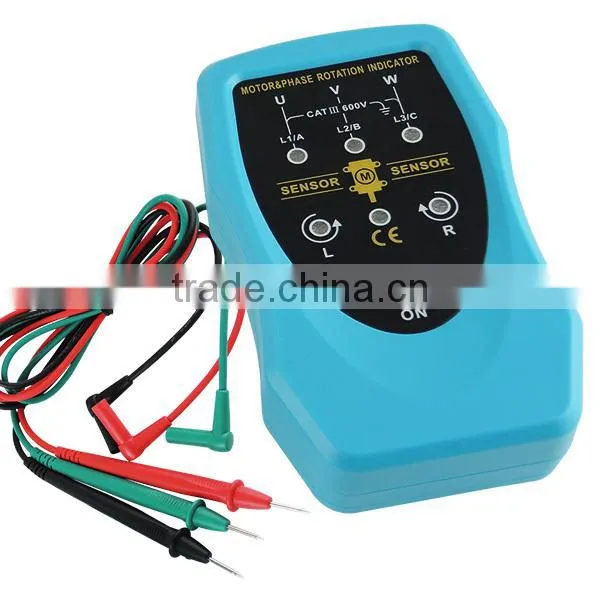

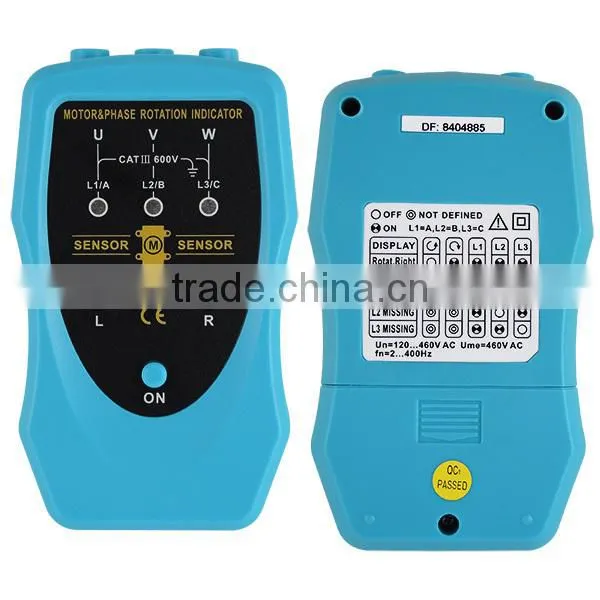

- 1 x Motor and Phase Rotation Indicator

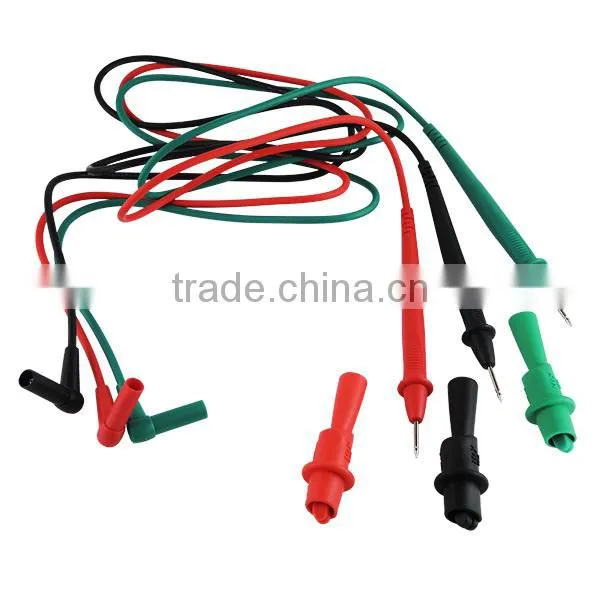

- 3 x Test leads

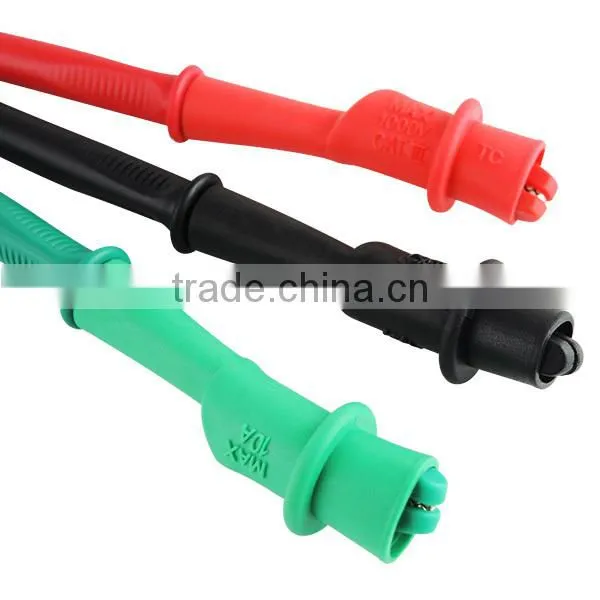

- 3 x Alligator clips
- 1 x 9V Battery

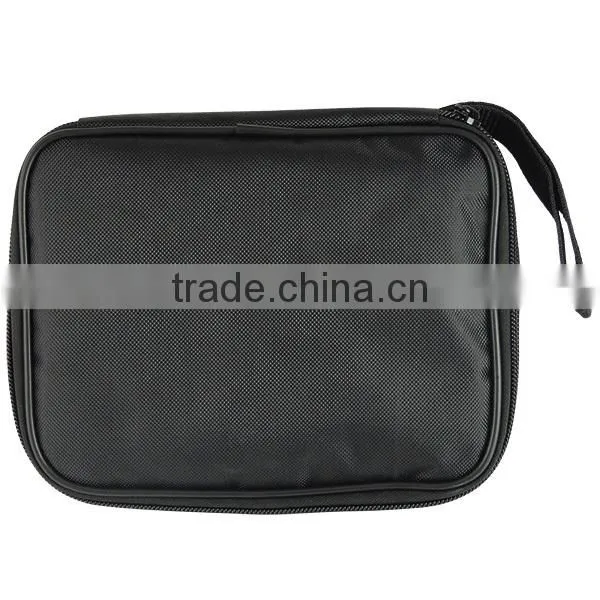

- 1 x Black Carrying Bag
- 1 x English Instruction Manual
- Standard factory package
