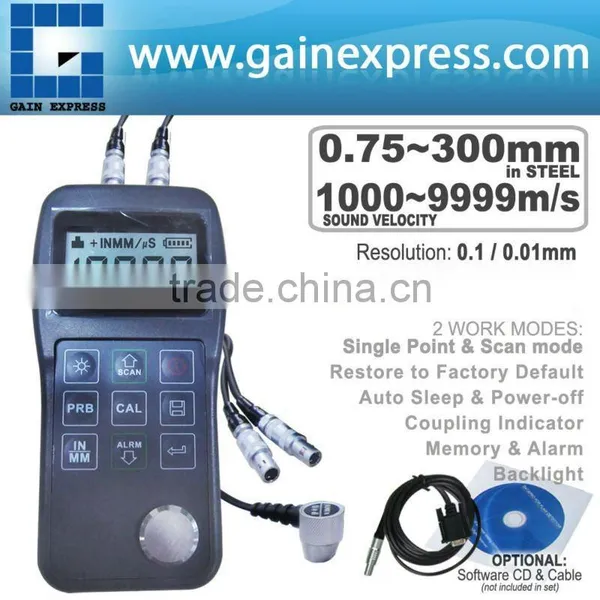

MITECH MT160 Digital Ultrasonic Thickness Gauges With 4.5 Digits LCD, EL Back Light + RS232 CD & Cable

MITECH MT160 Digital Ultrasonic Thickness Gauges With 4.5 Digits LCD, EL Back Light + RS232 CD & Cable thumbnail-1
MITECH MT160 Digital Ultrasonic Thickness Gauges With 4.5 Digits LCD, EL Back Light + RS232 CD & Cable photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Mitech
Model Number:
MT160
Contact Supplier Request Quote Chat Now
Gain Express Holdings Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Mitech
Model Number MT160

Specifications

Range:0.75~300mm(in Steel) 1000~9999m/s(Sound Velocity)
Resolution:0.1/0.01mm
Probe-Zero&Sound-Velocity Calibration
CD&Cable

A digital ultrasonic thickness gauge w/ highly accurate reading results. Based on same operating principles as SONAR,capable of measuring thickness of various materials.



2-Point calibration function (Probe-Zero & Sound-Velocity)allows greater accuracy over small ranges by calculating the probe zero & velocity & high accuracy as 0.1/0.01mm making it suitable for variety of metallic & non-metallic materials.



Option to connect to PC via RS232Software CD&Cable; option to connect to thermal-printer via RS232 port included in main unit. (Software CD & Cable not included in set)



Suitable for measuring  wide range of materials including metals, plastic, ceramics,composites, epoxies, glass & other ultrasonic wave well-conductivematerials.




Features:

  • High accuracy as 0.1/0.01mm
  • 2Point Calibration: Probe-Zero & Sound-Velocity
  • work modes: Single point & Scan mode
  • Battery & Coupling status indicator w/ Segment LCD
  • Compatible for different probes including probe for coarse grain & high temperature applications
  • Economical model w/ low-power design
  • EL Backlight , Auto sleep &auto power off function
  • Memory function: data save, recall or delete
  • Beeping Alarm, each measurement or measured value exceeds tolerance limit
  • Allows system reset to restore factory defaults
  • 2 years guarantee, CE certificate
  • Optional Software CD &Cable to process memory data on PC (not included in set)
  • Optional Thermal Mini-Printer to print measured data via RS232 port (not included in set)



Specifications:

  • Display: 4.5 digits LCD w/ backlight
  • Range: 0.75~300mm (in Steel)
  • Sound Velocity: 1000~9999 m/s
  • Resolution:  0.1/0.01mm Selectable
  • Accuracy: ±0.5%Thickness + 0.04mm, depends on materials &conditions
  • Units: mm or in for thickness value; m/s or in/μS for sound velocity
  • 4 measurements readings/sec (single point measurement) 10/sec (Scan Mode)
  • Memory: 20 files (up to 99 values for each file) of stored values
  • Transducer:
    • Freq.: 5MHz
    • Diam.: 10mm
    • Range: 1.2~230.0mm (In Steel)
    • Lower Limit: Φ20~3.0mm
    • Description: Normal Measurement
  • Ports: RS232 Port (for PC & Thermal-Printer connection)
  • Operating Temperature: -20~60°C
  • Storage Temperature: -30~ 70°C
  • Relative Humidity: ≤90%
  • Power Source: 2 x AA 1.5V alkaline batteries
  • Battery Life: 100h typical operating time (backlight off)
  • Outline dimensions: 150 x 74 x 32mm
  • Weight: 245g



Set Includes:

  • 1 x Main Unit (Model No.: MT150)
  • 1 x Transducer (Model No.: N05/90°)
  • 1 x Couplant
  • 1 x Sturdy Plastic Carrying Case
  • Operating Manual
  • 2 x AA 1.5V Alkaline battery



  • Optional Items (not included in set):
    Please inform us if you want any of the following optional items to be included in your order.
    • Software CD & Cable
    • Mini-Thermal Printer
    • Transducer



      Model

      Freq. (MHz)

      Diam. (mm)

      Measuring Range

      Lower Limit

      Description

      N02

      2.5

      14

      3.0 ~ 300.0mm
      (In steel)
      40mm
      (In Gray Cast Iron HT200)

      20

      For thick, highly attenuating, or highly scattering materials

      N07

      7

      6

      0.75 ~ 80.0mm
      (in steel)

      Φ15 ~ 2.0mm

      For thin pipe or small curvature pipe wall measurement

      HT5

      5

      14

      3 ~ 200mm
      (in steel)

      30

      For high temperature (lower than 300°C) measurement
