Industrial 2.31" TFT LCD 8mm Camera Video Borescope Endoscope 4 LED Lights AV Output SnakeScope 3FT Cable Surveillance Tool
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Generic
Model Number:
VID-10
Type:
Other, Digital Camera, Inspection Camera w/ Color LCD Monitor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WiFi Endoscope 1M Cable Borescope 9.8mm Waterproof Camera Head Support Android IPad IPhone Surveillance Video InspectionNegotiableMOQ: 1 -
3M Cable Industrial 2.4" HD Endoscope 9mm Camera 4 LED Snake Scope Waterproof IP67 Car Engine Inspection Pipe BorescopeNegotiableMOQ: 1
-
2.4 LCD Portable Video Inspection Endoscope 8.5mm Camera 1m CableNegotiableMOQ: 1 Piece
-
2.4 LCD Portable Video Inspection Endoscope 16mm Camera 1m CableNegotiableMOQ: 1 Piece
-
2.4 LCD Portable Video Inspection Endoscope 3.9mm Camera 1m CableNegotiableMOQ: 1 Piece
Brand Name
Generic
Model Number
VID-10
Type
Other, Digital Camera, Inspection Camera w/ Color LCD Monitor
Style
Other, Industrial Endoscope
Sensor
CMOS
Technology
Other, Color LCD Monitor Endoscope
Special Features
Waterproof / Weatherproof

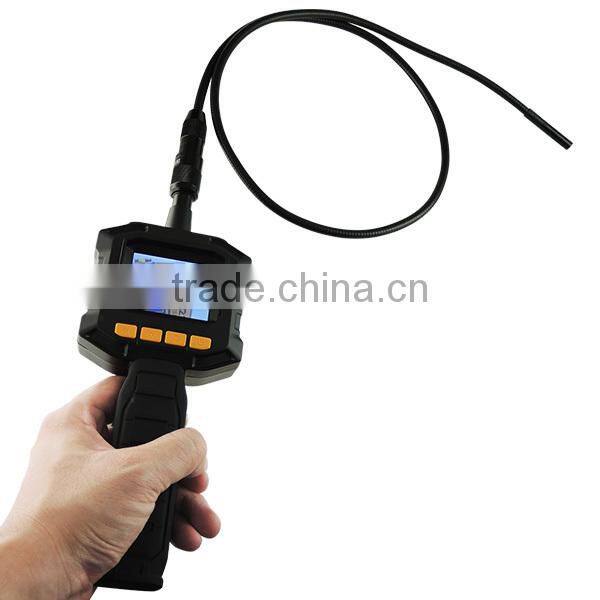

2.31" TFT LCD Industrial Borescope with 8mm camera tube diameter and adjustable 4 LED lights for viewing hard to reach area. It has water resistant camera head (IP67) and colored monitor with 640 x 480 pixel resolution. Image can be rotated by 180° and flip for a more detailed inspection.

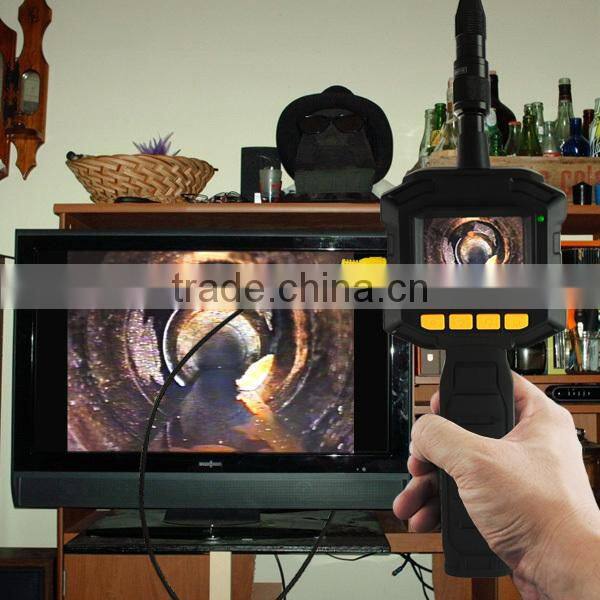

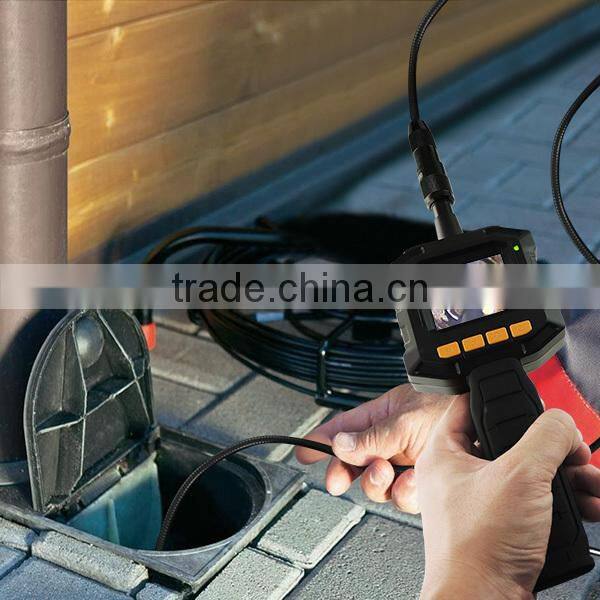

This product is designed as a remote inspection device, live time video streaming. Appropriated for use in surveying pipes or other hard to reach places, equipment or furnishing installation, car repair, etc.
Features:
- Allows for easy surveying of small, hard to reach places
- Mini waterproof camera with 980mm (3ft) flexible extended tube
- Manufactured and tested to IP67 waterproof standard

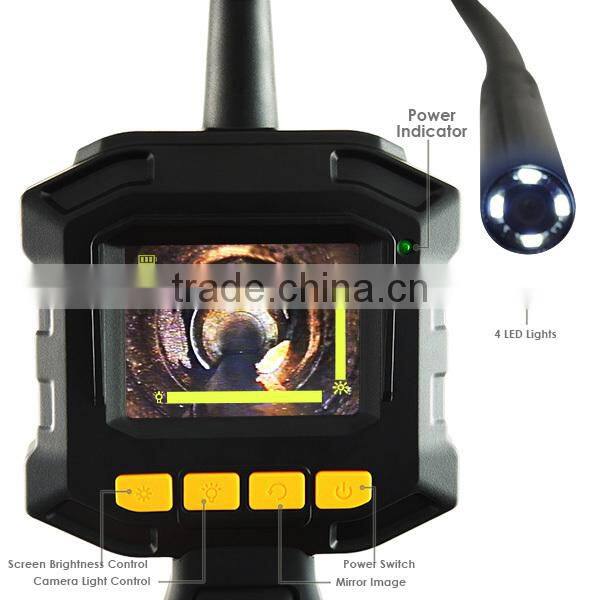

- 2.31" TFT LCD monitor
- Allows 180° image rotation and flip
- Adjustable brightness on lens-mounted LED light

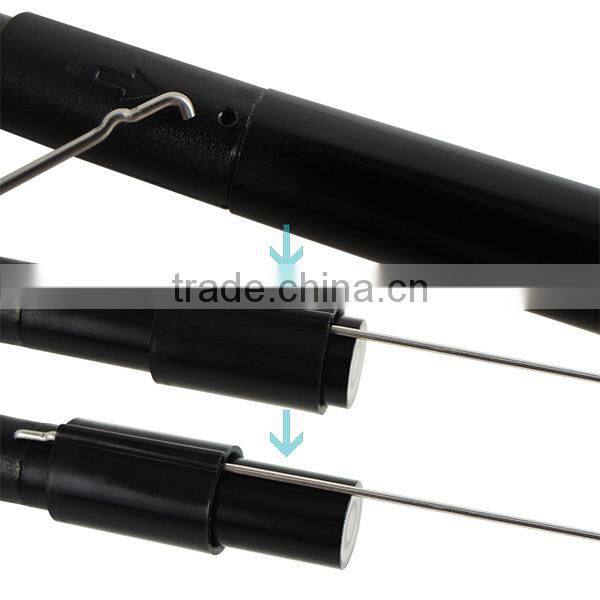

- 4 useful accessories inluded: hook, mirror, and magnet
- Lightweight, hanheld design, flexible and convenient to use
- With CE marking, meets EU safety, health and environmental requirements
Specifications:
- Screen Size: 2.31" TFT LCD
- Contrast: 300
- Brightness: 220CO/M2 (TYP)
- Effective Pixels: 640 x 480
- Video System: PAL / NTSC
- Horizontal Viewing Angle: 48°
- Illumination: 4 LED, white
- Minimum Illumination: 0 Lux (LED on)
- Work Time: 6 Hour Max.
- Consumption Current: 238mA
- Output Signal Impedance: 75 ohm
- Output Signal Level: 0.9-- 1.3Vp-p
- Imaging Sensor: 1/9-inch CMOS
- Waterproof Capacity: IP67 (for lens/tube only)
- Dimension

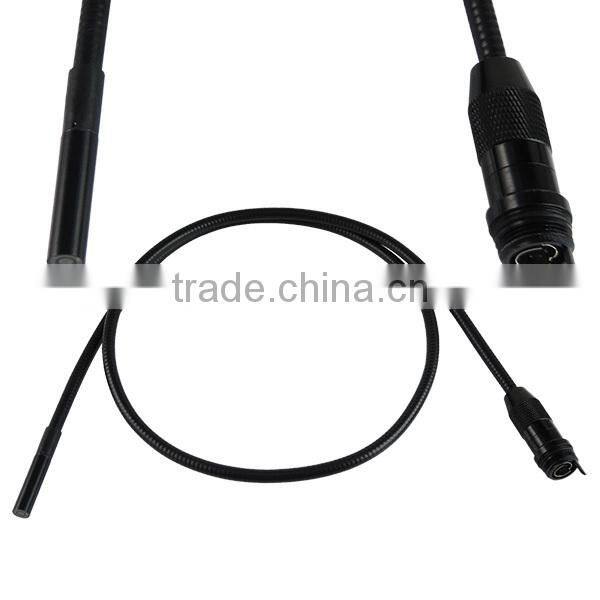

- Tube: Φ8mm x 980mm (Including camera)

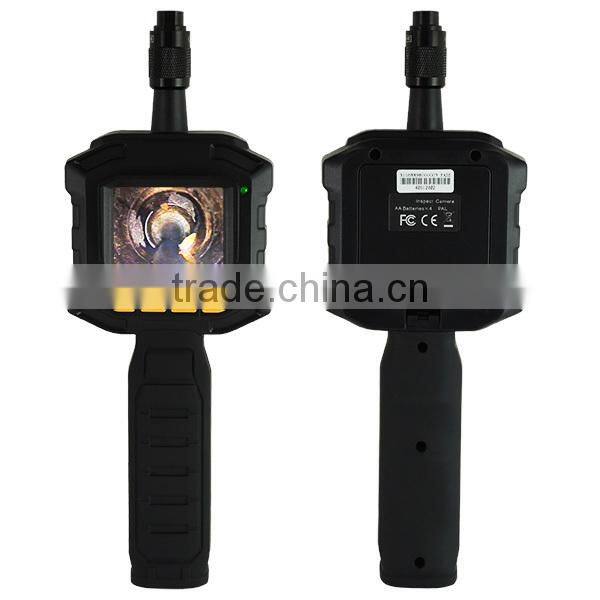

- Handle: 257 x 92 x 44(mm)Excluding Flexible Tube)
- Operating Environment
- Temperature: -10°C~50°C / 14°F~122°F
- Humidity: 15~85%RH

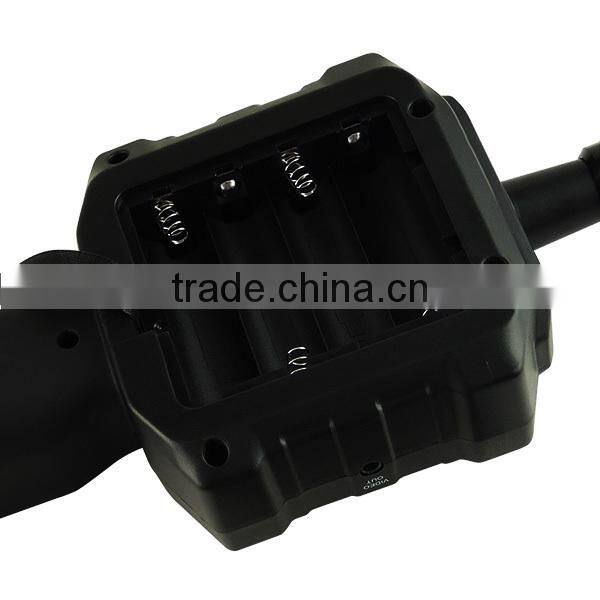

- Power Supply: 4 x AA batteries (1.5V x 4)
- Weight: approx. 407g (including batteries)

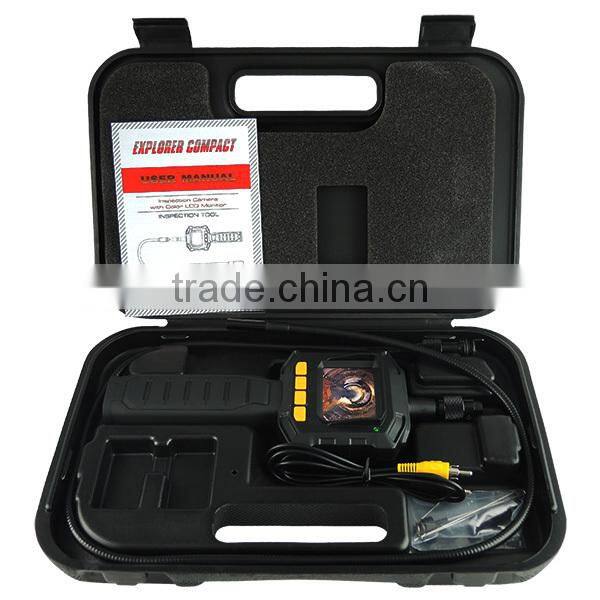

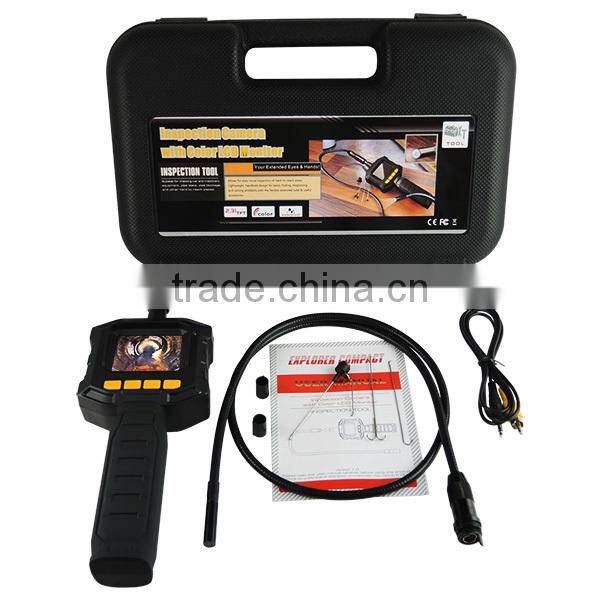

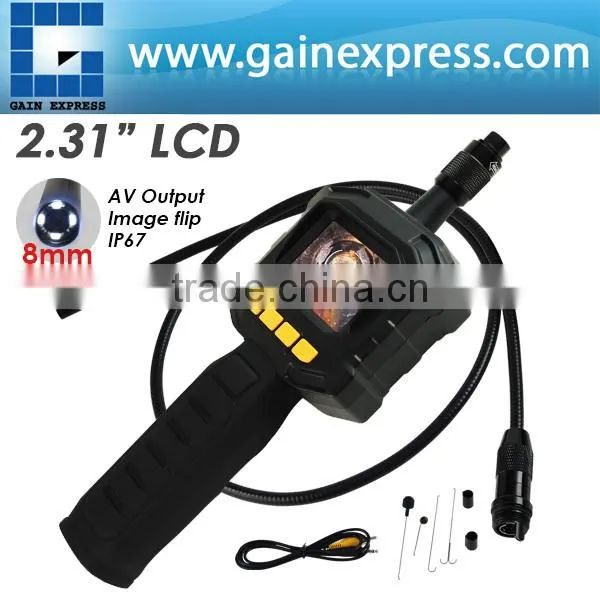

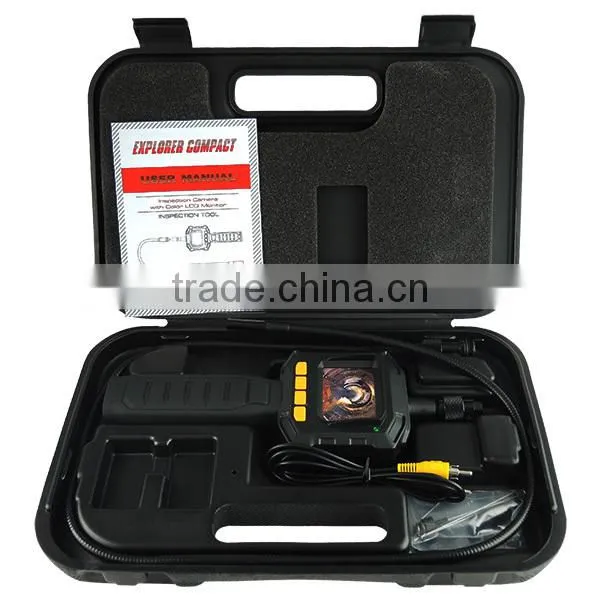

Set Includes:
- 1 x Inspection Camera w/ Color LCD Monitor
- 1 x 3ft Flexible Tube

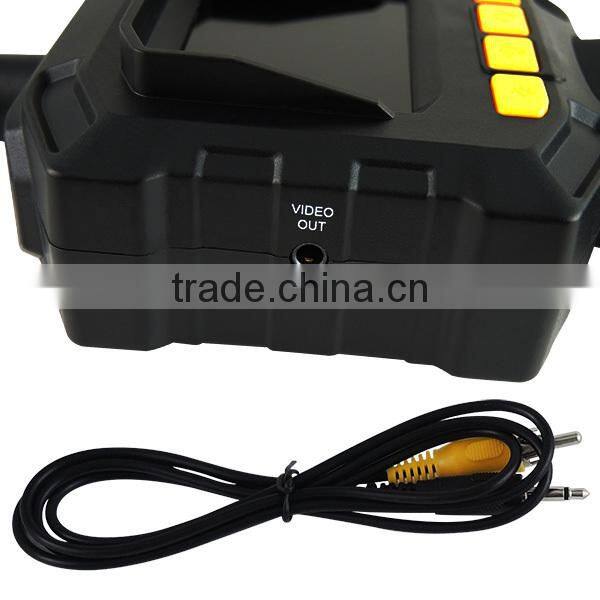

- 1 x Video cable

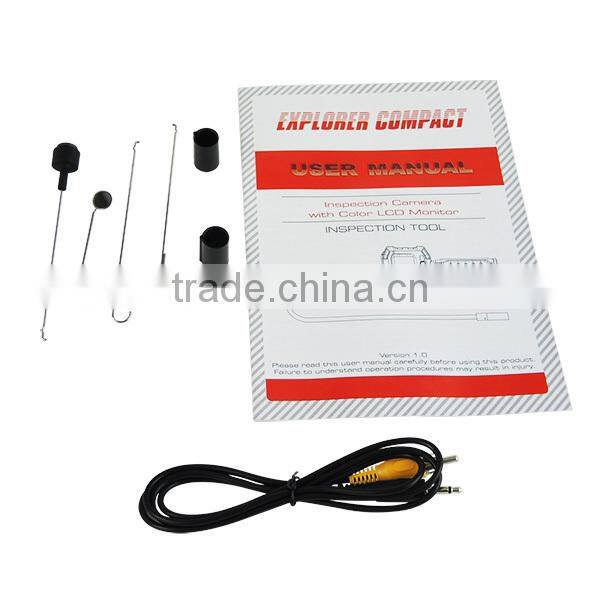

- 1 x Double Hook Tip
- 1 x Single Hook Tip
- 1 x Magnet Tip
- 1 x Mirror Tip
- 1 x Rubber Ring
- English Quick Start Guide

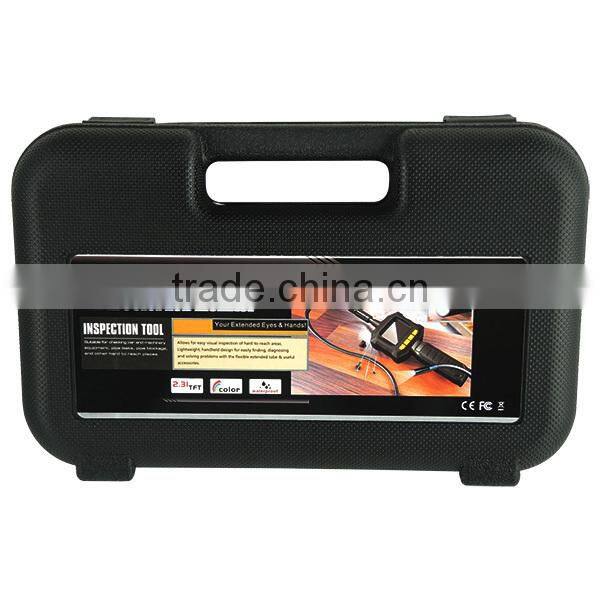

- Carrying Case
- Standard Factory Package
