2.4 LCD Portable Video Inspection Endoscope 8.5mm Camera 1m Cable

Specifications

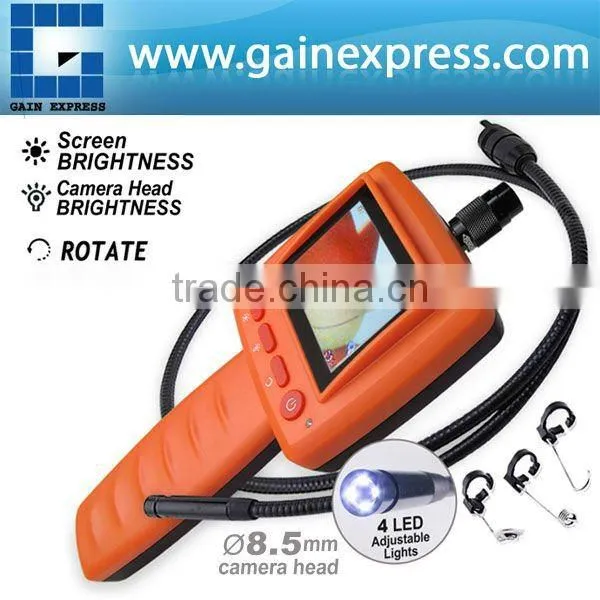

2.4" Video Inspection Endoscope 8.5mm Camera 1m Cable + adjustable screen & camera 4LED lights, image rotation & extendable cabl

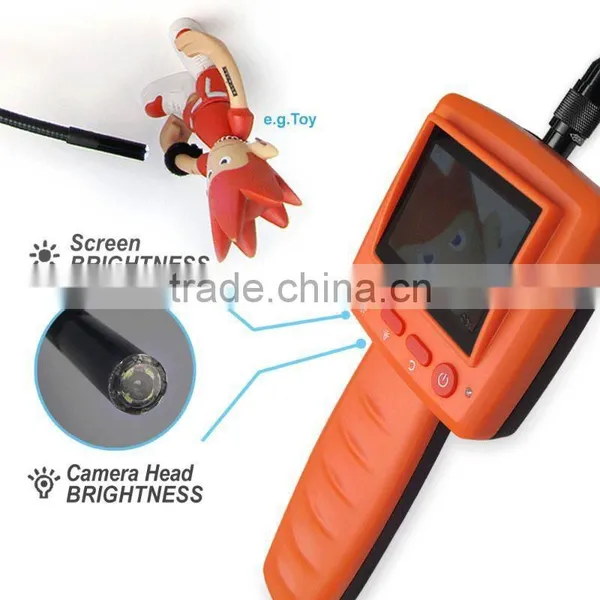

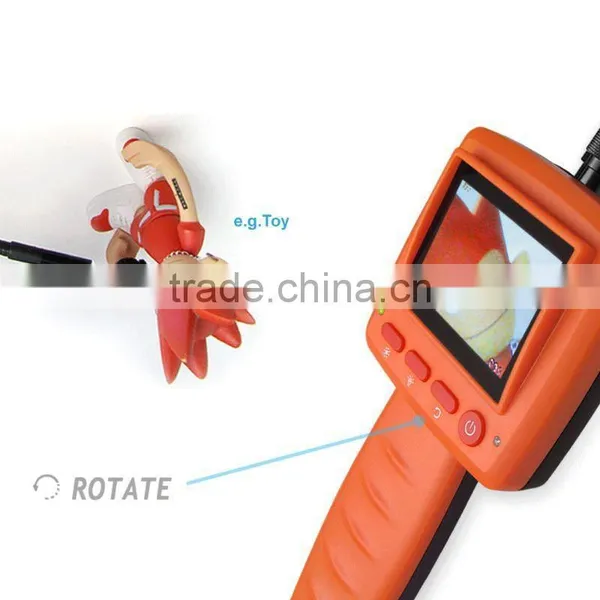

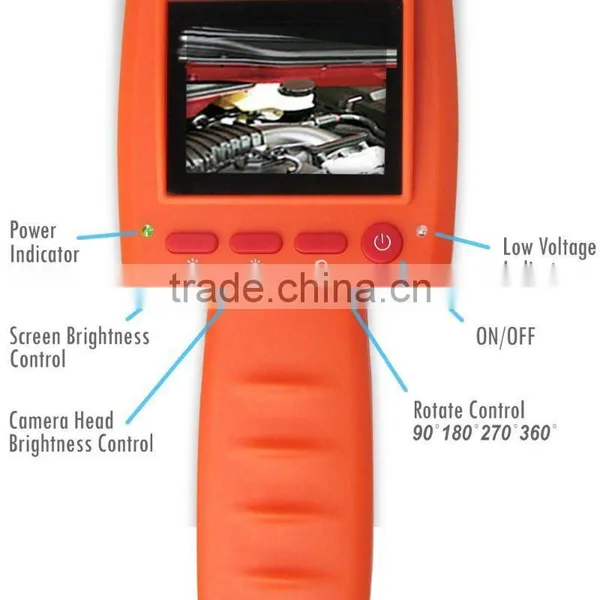

This Inspection Camera allows you to inspect hard-to-reach areas. It comes w/  2.4" TFT LCD monitor for easy reading. The LED light source allows adjustable illumination for easy finding & diagnosis. It has 90°, 180°, 270° & 360° rotation capabilities & LCD screen can be brighten according to user's preference.

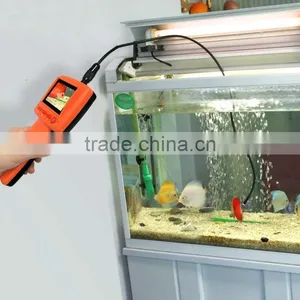

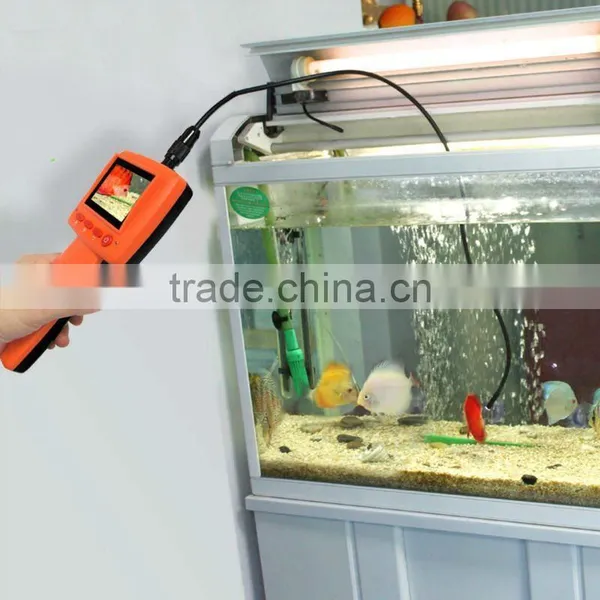

It has horizontal viewing angle of the camera 54°. You can inspect under water w/ waterproof 8.5mm camera head (IP67 rate waterproof level).



The Standard Flexible 1m (3.3ft) Cable allows you explore & discover conveniently.  You can make your cable much longer by adding more Extension Cables allowing  you to extend the vision of inspection point without using the high quality display..

• Main Unit:

  • Display: 2.4" TFT LCD monitor with adjustable brightness
  • Photo Format: JPEG
  • Working Temperature Range: -20 ~ 60°
  • Storage Temperature Range: 0 ~ 40°
  • Power Supply: 4 x AA 1.5 Batteries (not included)
  • Dimension: 85 x 251x 38mm (W x H x Thickness)
  • Weight
    • Main Unit: 160g (battery excluded)
    • Main Unit with 1m Cable: 320g (battery excluded)
• Camera
  • Camera Head Diameter: 8.5mm
  • Imaging Sensor: Optical format CMOS
  • Total Pixels: 320 x 240
  • Exposure: 30 ~ 80mm
  • Auto White Balance: automatic
  • Distortion: < 3.7%
  • Power Consumption: 3~5W (active)
  • Housing Material: Aluminum
  • Field of View: 54°
  • Tube
    • Outer Diameter : 6.8mm
    • Length: 1m
    • Waterproof Capacity: IP67 (camera head & tube only)
  • Light Source
    • Number of Lamps: 4
    • Weight: 8g
    • Brightness Control: Manual
    • Lamp Type: LED
    • Minimum Illumination: 0 Lux
    • Lamp Life: 8000hrs., median
• Operating Environment

  • Tip Operating Temperature: -20~60°C (-4~140°F)
  • Storage Temperature: -20~70°C (-4~158°F)
  • Relative Humidity: 95%RH max
  • Hazardous Environment: Not rated for use in hazardous environments

• 1 x 2.4" TFT Colored LCD Inspection Camera
• 1 x 1m Flexible Tube with 8.5mm Diameter Waterproof Camera Head
• 1 x Magnet Tip
• 1 x Hook Tip
• 1 x Mirror Tip
• 1 x Tiny Screw
• 1 x English Instruction Manual
• 1 x Standard Packaging Gift Box



• Optional Items (not included in set):
  Please inform us if you want any of the following optional items to be included in your order.

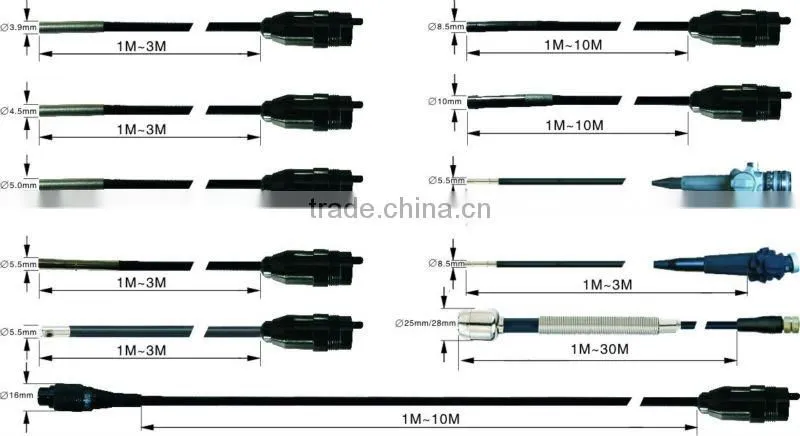

  • Extension Cable







Video for this product :  /watch?v=N0xtFsJY2p0
