Digital Wall Mount / Carbon Dioxide CO2 Temperature RH Data Logger Monitor Indoor Air Quality 0~9999ppm Made in Taiwan
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Generic
Model Number:
M0198537
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in Taiwan /0~999ppm Clock + 32000 Points Digital Wall Mount/Desktop Carbon Monoxide CO Sensor Data Logger MonitorNegotiableMOQ: 1 -
Temperature Logger w/ Option to Connect to PC via RS232NegotiableMOQ: 1 Piece
-
Digital Temperature Logger w/ Option to Connect to PC via RS232, and Battery DisplayNegotiableMOQ: 1 Piece
-
Temperature Logger w/ On/Off Button, External Temp Range and an Option to Connect to PC via RS232NegotiableMOQ: 1 Piece
-
Digital Temperature Logger w/ External Temp Range and an Option to Connect to PC via RS232NegotiableMOQ: 1 Piece
Place of Origin
Taiwan, China
Brand Name
Generic
Model Number
M0198537
Usage
Household
Theory
Temperature Sensor
This Carbon dioxide (CO2) Monitor and Datalogger is used to measure and log CO2 Concentration, Air Temperature and Relative Humidity with visual alarm. It is an ideal for Indoor Air Quality (IAQ) diagnosis. Can be wall-mount or desktop with backlight features making it easy to read even in dark areas.The memory datalogging capacity is up to 32,000 points with date and time.
It has 5 selectable start mode : (1)Schedule mode- select a date and time for the meter to start recording, (2) Real-time mode- after setting start mode meter will start logging, meter should be always connected with pc under this mode,(3) Key-start mode-press the button to start and stop logging,(4)Roll-over mode- continous datalogging, when the data is full it will cover the earliest memomy,(5) Immediate-log and measure instantly.
It complies with all essential health and safety requirements set out in European Directives (CE marking). Plus, all parts are made in and manufactured in Taiwan.
Features:

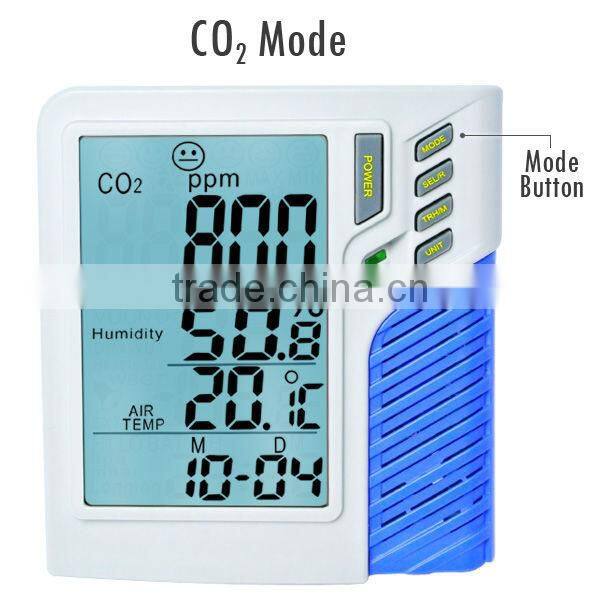

- Super large LCD simultaneously display and log C02 Level, Temperature,Relative Humidity, Calendar (Y / M / D) and Time (clock)
- Six (6) smiley icons indicate indoor air quality levels
- (350/450/700/1000/2500/5000ppm) easy to understand CO2 concentration.
- 32000 data logging memory
- Stable NDIR sensor for CO2 concentration

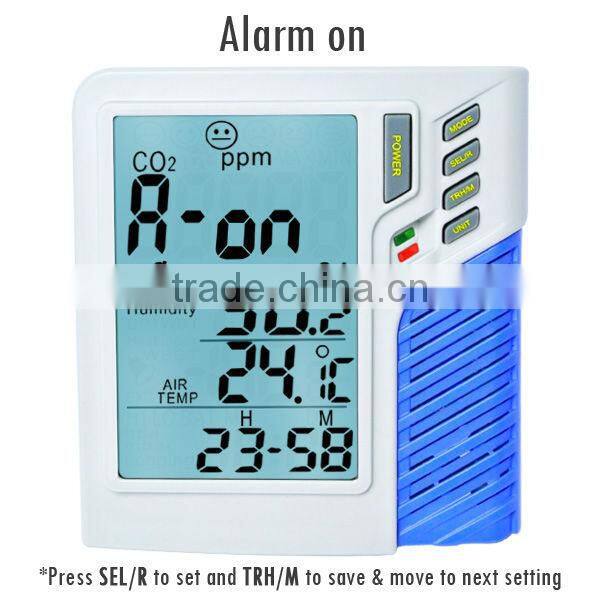

- With visual alarm
- High and Low threshold setting

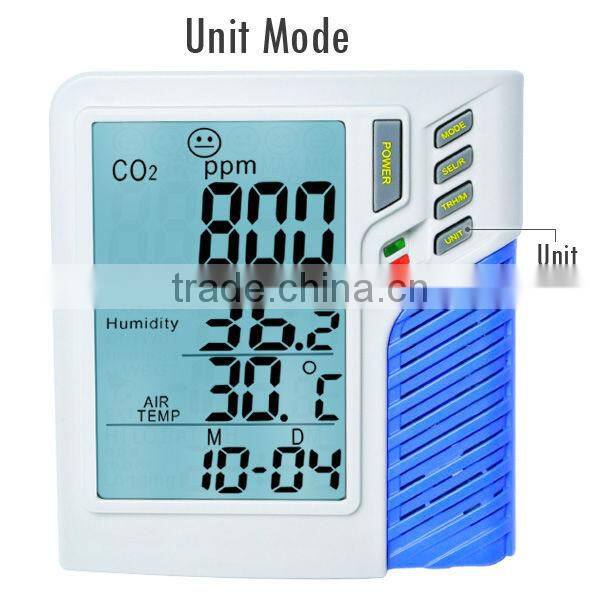

- Selectable °F and °C temperature unit
- Automatic baseline calibration (ABC) function
- Warning for high CO2 concentration
- Backlight Function
- Recall MAX and MIN reading

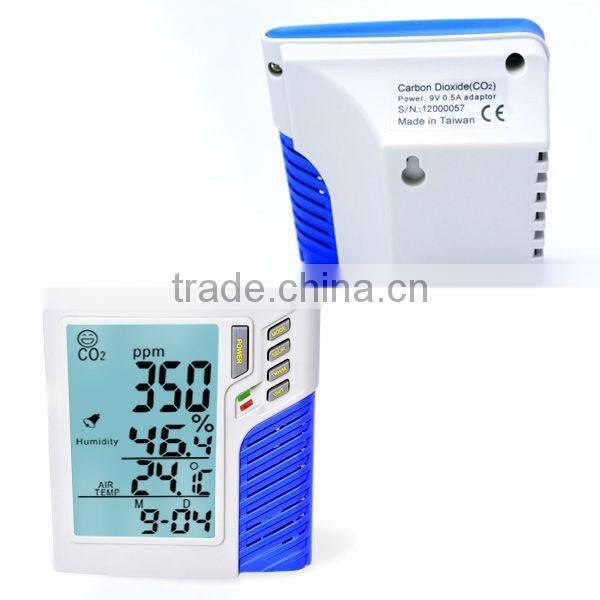

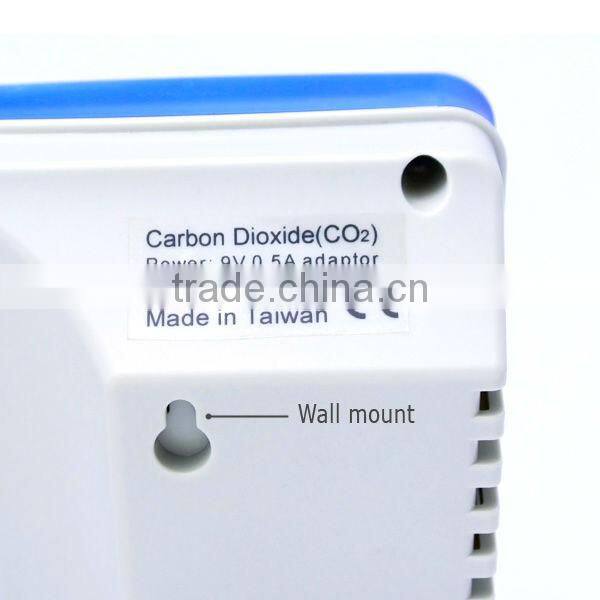

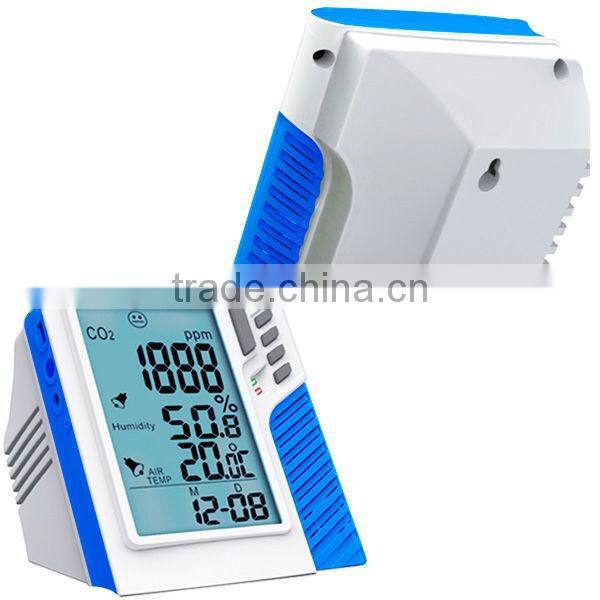

- Can be wall-mount or desktop position
- Comes with Power Adaptor (choose one from the availble plug US/ UK/ AU/ EUR)
- Made in Taiwan
Specifications:
- Large LCD Display : 85 x 56mm jumbo size with backlight
- Time interval selection : Hour (1~6), minute (0~59), second (0~59)
- Logger mode : Key start/ stop, Immediately, Schedule, Real-time & Roll-over
- CO2 Range : 0~9999ppm
- C02 Accuracy : ±75ppm + 5% of rdg (C02) 0~2000ppm, others out of scale range
- Response time
- C02 : 10sec
- Relative humidity : 2 sec
- >>Note : If the operation environment changes (ex. From high to low temp.),it takes approx.30 sec. for C02 sensor to response and approx.30 minutes for RH into stable measurement.
- Logging Memory : 32000
- Wall mount / desktop : YES
- Temp.range : -10~50°C (14~122°F)
- Temp.Resolution : 0.1°C/°F
- Temp. Accuracy : ±0.6°C (-10~50°C / -4~122°F), others ±1.2°C
- RH Range : 0.1% ~ 99.9%RH
- RH Accuracy : ±5%RH (at 25°C, 10~90%RH, others ±7%RH)
- Operating Environment
- Temperature : 0~50°C(32~122°F)
- Relative Humidity : <80% RH
- Sensor life : 15 years in normal comm. Environments with ABC on
- Storage Temp : -40~70°C (-40~158°F)

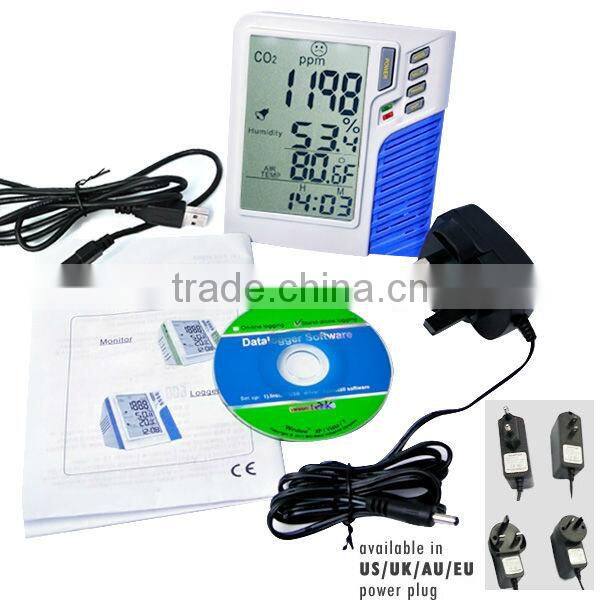

Set Includes :
- 1 x IAQ Carbon Dioxide (C02) Datalogger Monitor
- 1 x Power Adaptor (choose one from the availble plug US/ UK/ AU/ EUR)
- 1 x USB cable
- 1 x CD Software
- 1 x English Operation Manual
- 1 x Standard Packaging Box with colored Sleeve
NOTE:
This product uses NDIR technology for its CO2 sensor. This can only used in non-condensed areas. Not recommened for areas with huge temperature variation (high temp to low temp - cold to warm or to hot place or vice versa).
It is used only at places with constant temperature. Warranty does not cover when it is use in condensed areas.
