Place of Origin Taiwan, China
Brand Name Generic
Model Number M0198103
Usage Household
Theory Temperature Sensor

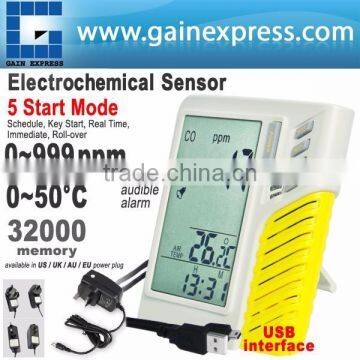

This USB Wall mount/Desktop Carbon monoxide (CO) Datalogger has a Electrochemical sensor that can be used to measure and log CO Concentration and Air Temperature with audible alarm. It is an ideal for Indoor Air Quality (IAQ) diagnosis that can be wall-mount or desktopThe memory datalogging capacity is up to 32,000 points with date and time.



It has 5 selectable start mode : (1)Schedule mode- select a date and time for the meter to start recording, (2) Real-time mode- after setting start mode meter will start logging, meter should be always connected with pc under this mode,(3) Key-start mode-press the SEL/R button for 3 seconds to start and stop logging,(4)Roll-over mode- continous datalogging, when the data is full it will cover the earliest memory,(5) Immediate-log and measure instantly.



It complies with all essential health and safety requirements set out in European Directives (CE marking). Plus, all parts are made in and manufactured in Taiwan





Sources of Carbon Monoxide:

  • Unvented kerosene and gas space heaters; leaking chimneys and furnaces; back-drafting from furnaces, gas water heaters, wood stoves, and fireplaces; gas stoves; generators and other gasoline powered equipment; automobile exhaust from attached garages; and tobacco smoke



Features:

  • Super large LCD simultaneously display and log CO Level,Temperature, Calendar (Y / M / D) and Time (clock)
  • 32000 data logging memory

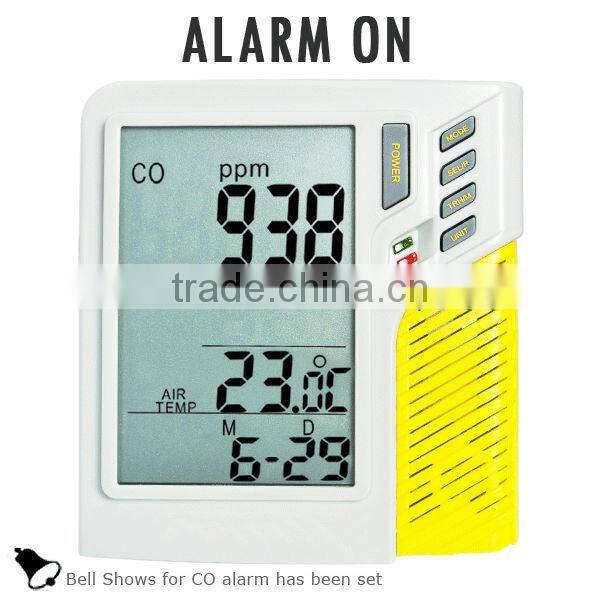

  • With audible alarm  Warning for high CO concentration
  • Alarm indicator indicates gas species
  • Carbon Monoxide monitoring and leakage detection
  • High reliability sensor
  • Temp monitor LED
  • Easy to understand the CO concentration from LED's
  • Red LED flash warns CO level high
  • High and Low threshold setting
  • Selectable °F and °C temperature unit
  • Optional Backlight Function
  • Recall MAX and MIN reading

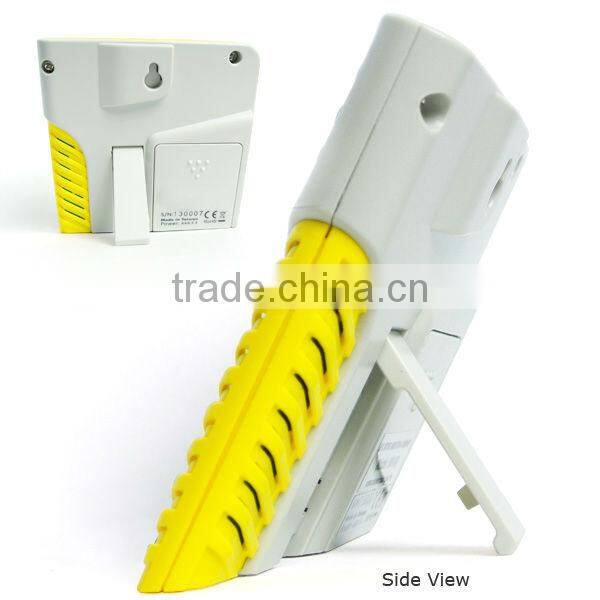

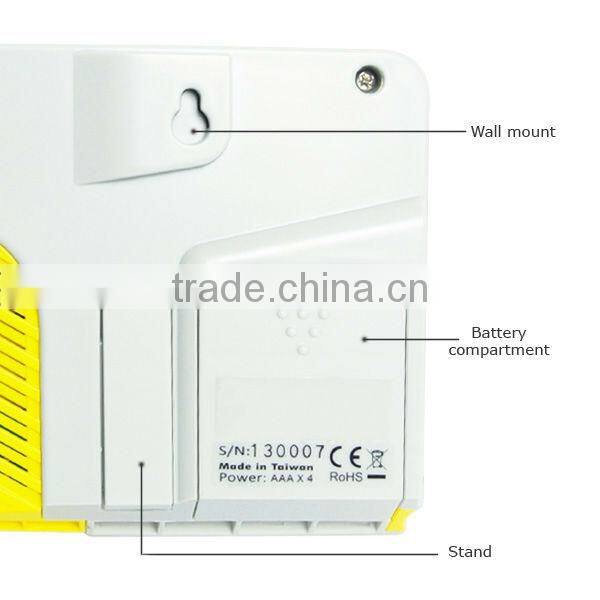

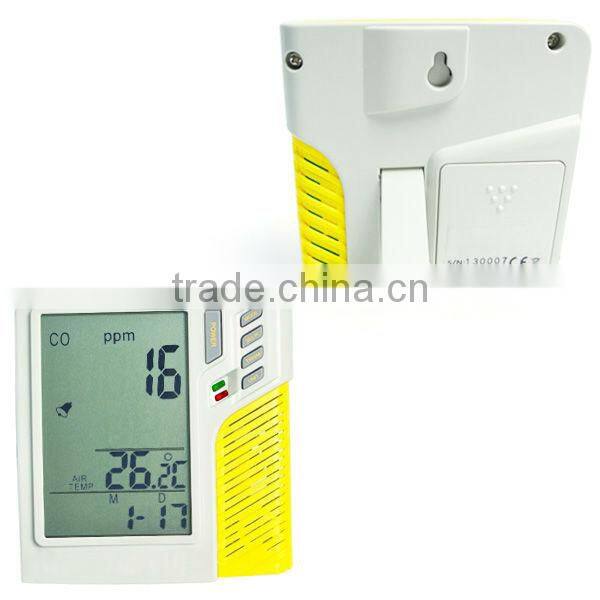

  • Can be wall-mount or desktop position
  • Made in Taiwan



Specifications

  • Large LCD Display : 85 x 56mm jumbo size
  • Time interval selection : Hour (1~6), minute (0~59), second (0~59)
  • Logger mode :
    • Key start/ stop
    • Immediately
    • Schedule
    • Real-time
    • Roll-over
  • Sensor : Electrochemical sensor
  • Carbon Monoxide (CO) Measurement:
    • Range : 0~999ppm
    • Accuracy : ±5ppm of rdg or ±10ppm
    • Resolution :1 ppm
  • Logging Memory : 32000 pts
  • Wall mount / desktop : YES
  • Temperature Measurement
    • Range : 0~50°C
    • Accuracy : ±0.6°C / 1.2°F
  • Logged data may be exported as "cvs" , "txt"(text file) , "xls" (excel file)
  • USB interface for stand alone logging CO level
  • Power Supply :

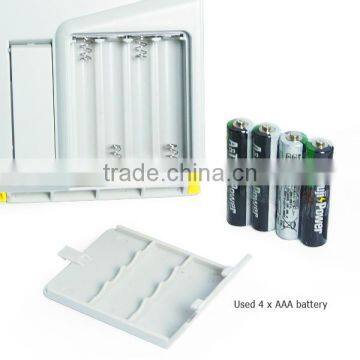

    • 4 x 1.5V AAA Batteries ( included in set )
    • USB Cable ( included in set )
    • Power Adaptor (available in US/UK/AU/EU) (included in set)

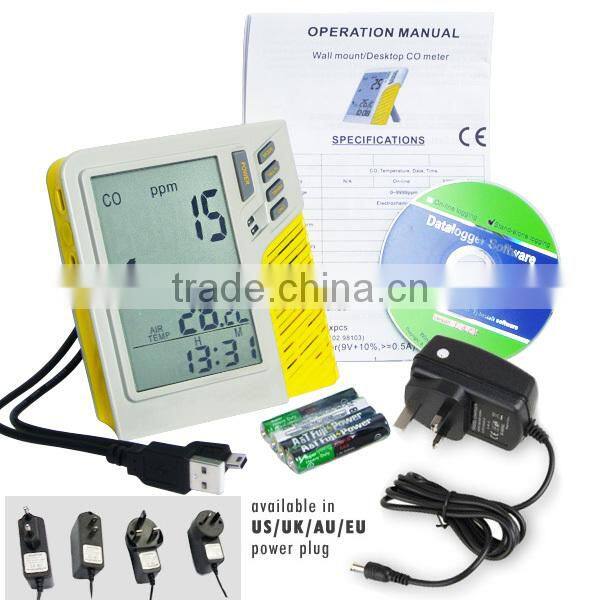

Set Includes:

  • 1 x Carbon Monoxide Datalogger
  • 1 x USB Cable

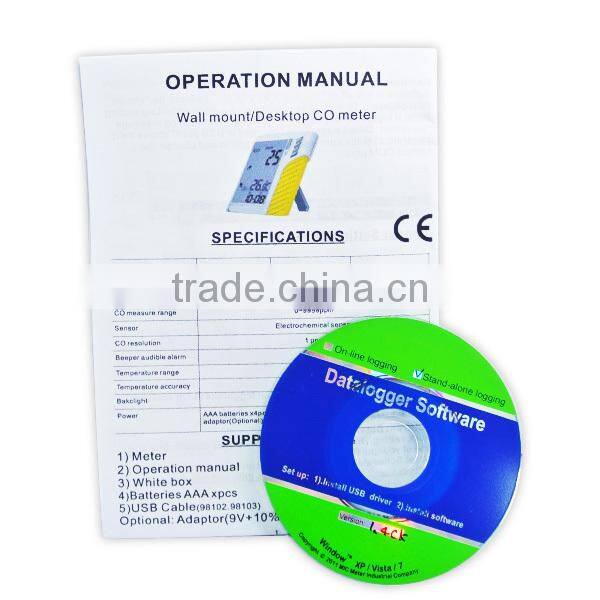

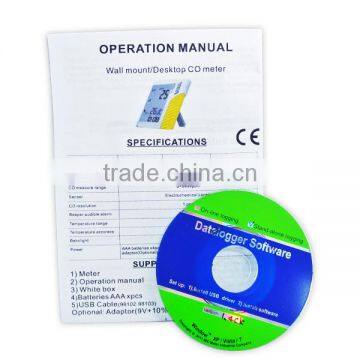

  • 1 x CD Software
  • 4 x 1.5V AAA Batteries
  • 1 x Power Adaptor (available in US/UK/AU/EU)
  • 1 x English Manual
  • Standard Factory Packaging Box
