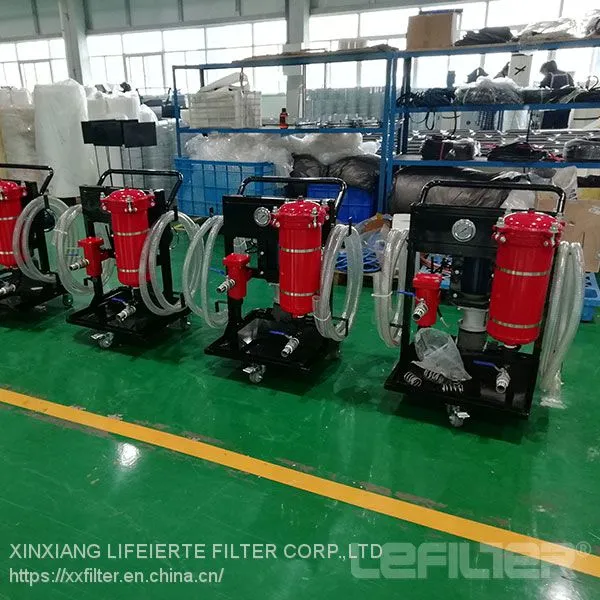

LYC-32A Portable Hydraulic Oil Filtration Filter Trolley Cart

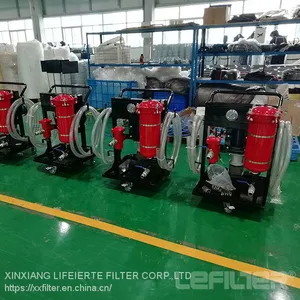

LYC-32A Portable Hydraulic Oil Filtration Filter Trolley Cart thumbnail-1
LYC-32A Portable Hydraulic Oil Filtration Filter Trolley Cart thumbnail-2
LYC-32A Portable Hydraulic Oil Filtration Filter Trolley Cart photo-1

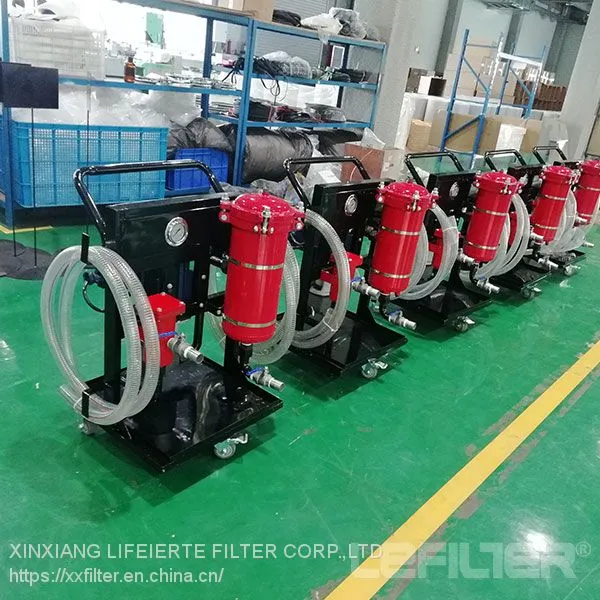

LYC-32A Portable Hydraulic Oil Filtration Filter Trolley Cart photo-2
US$ 250 - 340 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Lefilter
Place of Origin:
China
Model Number:
lyc-32A
Contact Supplier Request Quote Chat Now
Xinxiang Lifeierte Filter Corp.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin or qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lefilter
Place of Origin China
Model Number lyc-32A
After-sales Service Provided Engineers available to service machinery overseas
Warranty yes
Certification ISO9001
Condition New
Automatic Grade Automatic

LYC-B Hydraulic oil filtration Turbine Vacuum Oil Purifier, Oil Filtering Refinery Machine

Product Performance
    1. The machine consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, and smooth running characteristics.
    2. The high-pressure pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.
    3. The use of thermal relay protection to prevent motor damage caused by motor overload.
    4. Coarse filtration of suction port can protect the pump and extend the life of the main filter.
    5. After the pump has two precision filters, so the oil can quickly reach high cleanliness.
    6. First precision filter can filter out the larger particles of impurities, and secondary precision filter can filter out smaller particles or moisture.
    7. The precision filter chosen by different users for different precision, can provide better protection for the system.
8. Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
9. Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.

Technical parameters of LYC-B Series high precision hydraulic oil filter cart

ModelLYC-25B-*/**LYC-32B-*/**LYC-40B-*/**LYC-50B-*/**LYC-63B-*/**LYC-100B-*/**LYC-150B-*/**
Rated flow(L/min)2532405063100150
Temperature (°C)5-80
Recommended viscosity(CSt)10-160
Rated pressure(MPa)0.6
The original pressure loss(MPa)≤0.01
First coarse filtration accuracy(μm)100
Secondary precision filtration accuracy(μm)10,20,40
Third precision filtration accuracy(μm)3,5,10,20,40
Voltage(V)Three-phase AC380V   Two-phase AC220V
Motor Power(kw)0.550.751.11.11.52.23.0
Weight(kg)46789096102120160
Dimensions(mm)520x350x950520x350x950720X680X1020720X680X1020720X680X1020720X750X1020720X750X1220

Note: * Secondary precision filter accuracy, such as 003 means 3 um
** The applicable media: generally hydraulic oil
                   BH: water, glycol
                   V: phosphate ester hydraulic fluids

Another type Oil purifier for reference

FA016-1100 Portable Oil Filter
Model FA016-1100 Portable Oil Filter
oil purifier HCP150
HCP200-HCP200
machines high viscosity oil cleaning filter machine
frame filter press
Waste Oil Distillation System
Coalescence Dehydration Oil Purifier cart
Used waste engine oil recycling machine lubricating oil vacuum purifier
LY Plate Pressure Oil Purifiers
High Effective Vacuum Insulating Oil Purifiers
Multi-founction Oil Purifier
TYC Lubricating Oil Regeneration Purifiers
Coalescence-separation Oil Purifiers
LYE Engine Oil Recycling System
Portable Oil Purifiers
Lubricant Oil Purifier
Oil Water Separator Machine
High Vacuum Lubricating Oil Purification Plant for Electric Power
TY Series Turbine Oil Purifier Equipment
LUC-63*10
LUCD03*20
LUC-40



Xinxiang Lifeierte Filter Corp.,Ltd （Stock code：837936）is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.



Main brand:



Replacement filter: HYDAC ,PALL,MP-FILTRI,EPE,Vickers,ARGO,FILTREC,HY-PRO,INTERNORMEN,PARKER



Air Compressor  Air Filters :Atlas Copco,Ingersoll Rand,Sullair,Fusheng,Liutech(Fuda),Hitachi,Compair



Compressor In-line Filters:American Hankison  ,Taiwan JM  ,England Domnick Hunter,Germany Ultrafilter  ,American Parker ,Italy Hiross  ,Japan SMC,Taiwan TECHNOLAB ,Sweden Atlas Copco,Italy BEA



Mrs.Kayla /Overseas Sales Manager


XINXIANG LIFEIERTE FILTER CORP.,LTD

Company Address: Lefilter Building ,No.9 Hongli Avenue, Muye  District ,Xinxiang City,Henan Province,China

Factory Address:Filter Industrial Park, High-tech Industrial Development Zone, Xinxiang City, Henan P.R.China
Cell:0086-18625907408 (whatsapp)   Fax:0086-373-3339377
Email: sales05@xxfilter.com
Skype: sales05_438
Wechat:+86 18625907408(Whats App)
Web.:





Product Tags: Hydraulic Oil Filter Cart , Portable Oil Filtering Unit , Oil Filtration Machine , Portable Oil Filter Trolley , Oil Purification Machine , Hydraulic Oil Filter Trolley , Mobile Turbine Oil Purifier , Portable Oil Recycling Housing , Mobile Oil Filter Cart
