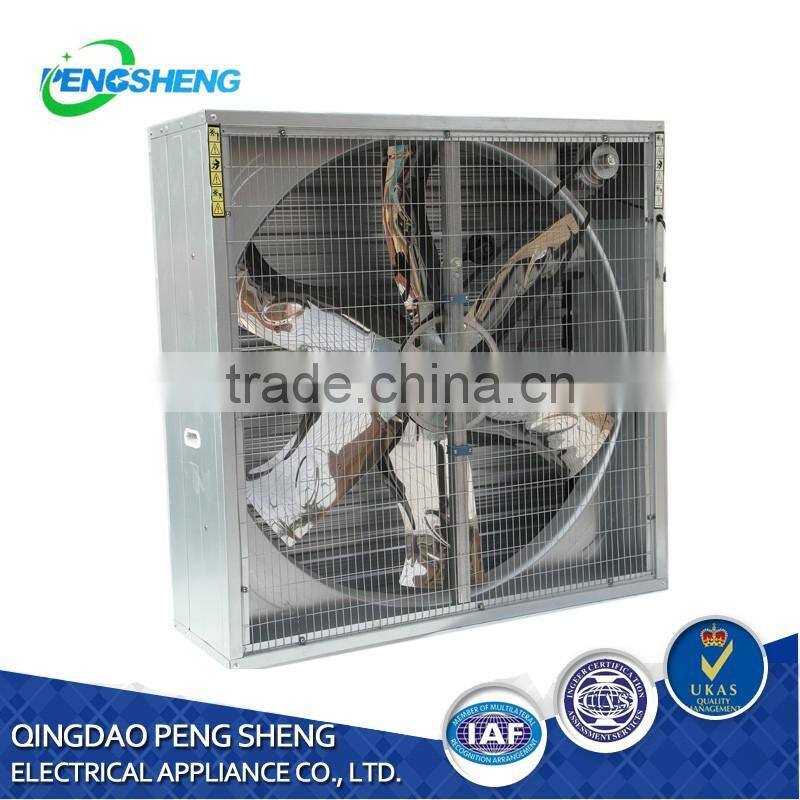

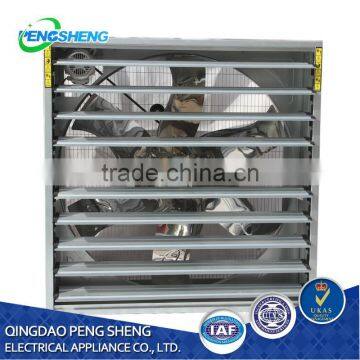

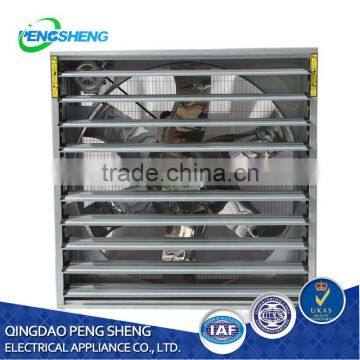

Stianless steel suction exhaust air fresh fan
Stianless steel suction exhaust air fresh fan can be blown is the best choice for modern plant ventilation cooling and exhaust. Discharge of polluted air. Environmental protection, energy saving negative pressure fan will become the mainstream of ventilation and cooling equipment market.
Using method
(A) wet curtain water supply: first open the supply water tank water valve and the water level of the water tank exceeds a certain amount of water pump (i.e. float valve to stop water supply automatic) before it can be on the pump switch, wet curtain water began. be careful:
(1) when the water tank or the water level is not high enough, it is strictly prohibited to the pump, otherwise it will caused by pump idling fever and burn out water pump;
(2) due to the wet curtain evaporation of water consumption, so when the water pump power supply, must ensure that the normal water supply (water supply valve is in a normally open state).
(B) wet curtain water regulation
Wet curtain water supply should be the wet curtain uniform soaked up to more than 90% can be, the water flow rate through adjusting the pump relief valve opening, adjustable wet curtain of the total water supply (inverse), and the regulative wet curtain piece inlet valve opening, adjustable wet curtain of water supply (proportional). Wet curtain flow generated over the general assembly, back problems, and make the water overflow from the tank, water will cause box baffle and wet curtain flash "flying water" phenomenon; too small to make wet wet curtain.
(C) the water leakage problem
When a water drop is found, the water supply amount is too large; whether the wet curtain or the edge of the wet curtain is damaged or not, can be removed by self or by a sponge. When the water leakage of the frame interface is stopped, the water supply is stopped, and the water leakage point is dried, and the waterproof glue (glass glue) can be added.
In just opened the water supply, wet curtain is not drenched, there is a short floating water phenomenon is a normal phenomenon.
1).ABOUT US
Qingdao Peng Sheng Electrical appliance CO.,LTD. Located in the cultural historical seaside famous city -- Jimo ,which predecessor is the Qingdao Hong Sheng Electrical Appliance factory(founded in 1998),in 2012 according to the international technical standards and combination with QingDao Hongxing Electrical Appliance Factory technology, established the QingDao Peng Sheng Electrical Appliance CO., LTD. Focus on ventilation fan more than 20 years.
2).OUR PRODUCT
A famous company specializing in the production of air blower, exhaust fan, axial fan, centrifugal fan, the enterprise of science and technology of ventilation equipment, about 20years has been committed to developing of science and technology products.
Some question and solution:
1. supply voltage is too low, negative pressure fan start or run, produce abnormal sound and vibration.
Solution: the power supply voltage is controlled within the range of rated voltage. Can usually choose the voltage regulator or power voltage regulator to stabilize the voltage.
2. negative pressure fan wind blade impact wind casing (cover).
Solution: fan blade adjustment reasons: vacuum blower fan motor bearing adverse, axial flow fan base screw loosening, wind leaf on the shaft is not fixed tightly, wind leaf apex and a hood body gap.
3. negative pressure fan base screw loose, impeller assembly is poor, the speed is too fast, fixed screw on the shaft and so on.
Solution: the negative pressure fan base, the shaft of the screw fastening. To re assemble and adjust the gap between the impeller and the impeller according to the technical requirement.
Qingdao Peng Sheng Electrical appliance CO.,LTD.
TEL:86-0532-87511479 86-18853211099
Whatapp:+8613698655788
Add:Huangjibu South Village.Tongji Office,Jimo,Qingdao,Shandong,China(maibland)
