Axial fan/blower Aluminum blade

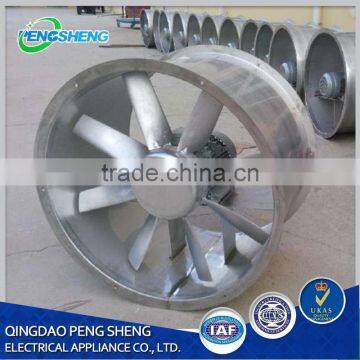

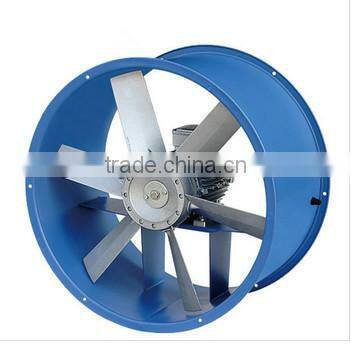

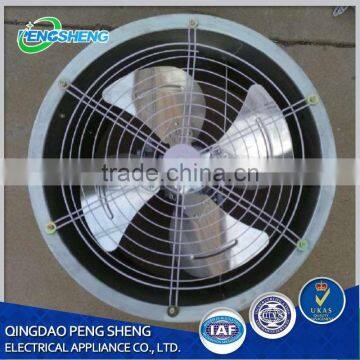

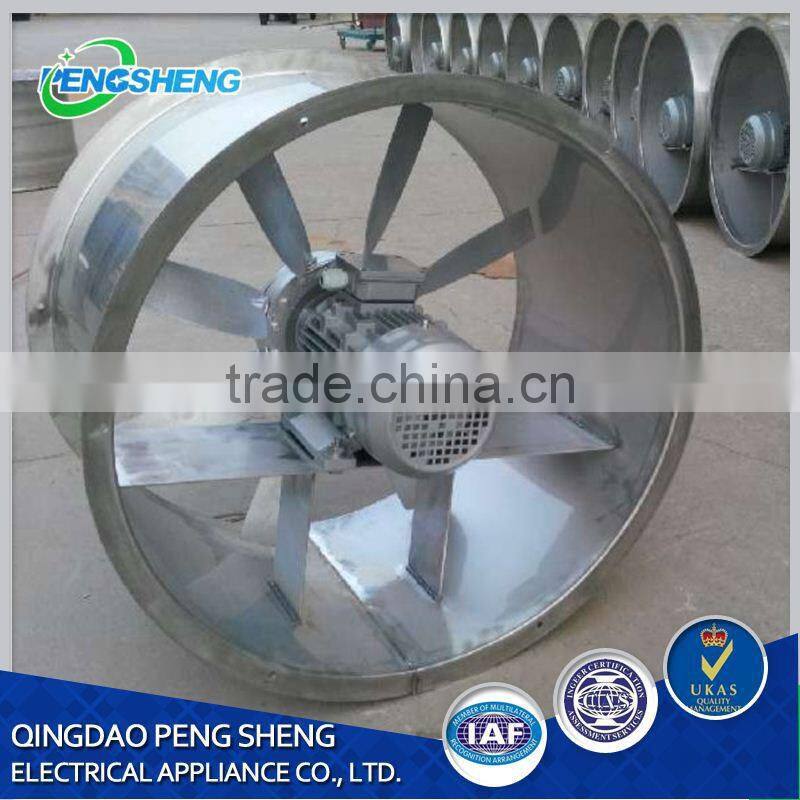

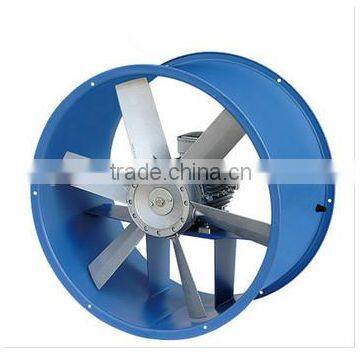

Low noise thermostability axial flow fan/withstands high temperatures
Features
BT35-11 series explosion-proof axis flow fans are mainly composed by electric machinery, blades and ram. BT35-11 fans are suitable for explosive environment Zone1 and Zone 2 with temperature classT1 to T4. They are applicable to explosive dangerous places like oil refining, storage, chemistry, medicine and military industry for air exchanging and refreshing.
With width and tilting shades, BT35-11 fans could achieve the needed blast capacity and pressure under low drive. Blades are adjustable and symmetrical, they are capable of ventilation from the front and the back side.
With low noise, low energy consuming and high explosion-proof quality, BT35-11 fans have man installation ways like wall mounted type, dusted type,post type and fixed type.
| Hazadous area | Zone1,Zone2 |
| Group of gas or vapour | IIA,IIB |
| Temprature class | T1-T4 |
| Application | Indoor,Outdoor |
| Structure description | The fan is fabricated of motor,leaves,cylinder,etc |
| Ex-marking | Exd II BT4 |
| Degree of protection | IP54 |
| Rated voltage | AC380V/50Hz,AC220V/50Hz |
| Corrosion-proof | WF1 |
| Thread of inlet | G3/4' |
| Cable diameter | φ10mm~φ14mm |

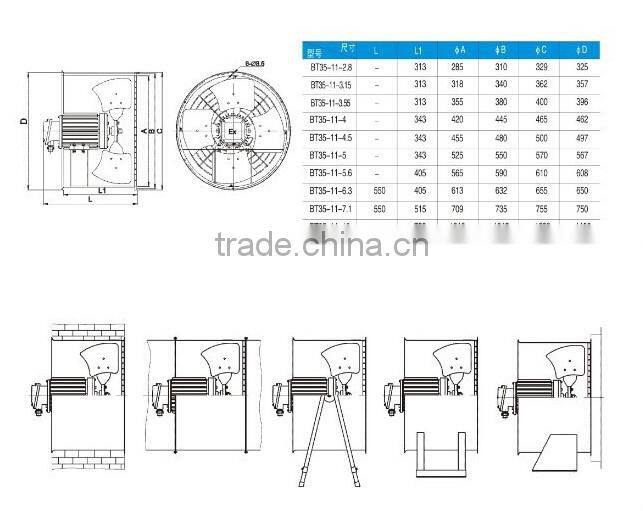

| Installation | wall type(I),bracket type(II),fixed type(III),pipe type(IV) |
Notes: IIAseries are improvised products and made great progress in shades, blast capacity and noise. Please notified us if you need any. For example, if you want to order BT35-11 axis flow wall fan with fan number 3.15, voltage 380v, the order model should be BT35-11-3.15/380
And if you want to order BT35-11 A series axis flow duct fan with fan number 5C, voltage 220v, the order model should be BT35-11-A-5C/220II
1. Apply to transfer non-inflammable, non-explosive, non-corrosive, unconspicuous stive gas.
The ambient temperature is not above 60°C.
2. Widely used for ventilation in factory, warehouse, office and residence,
or to strengthen central heating radiating.
3. If you remove the housing case, it can be used as free fan,
also can be indirectly tandem-installed in a longer exhaust pipe to increase the pressure of pipeline.
Certification
Our Advantage
1.Small volume, high air volume, high efficiency, low noise, light vibration,easy to installation and so on.
2.Widely applied for the ventilation in dwellings, industrial constructions and labs, in environment with strict limit to noise, or in air conditioning, air purifying and freezing industries etc.
3.The fan adopts mold production through static and dynamic balance adjustment, and its surface adopts high-grade electrostatic spraying treatment.
4.The gas delivered by the series of fan cannot have sticky matters, and is noncorrosive, non-flammable and non-explosive.
FAQ
Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?
1.Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement,
in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.
Contact Way
If you can't find the datas you need, pls send us your performance requirements,
we will provide you customized design service in 8 hours.
Skype :qdpsdq.dong
Mobile :+86 13964294505
My name : Anthony Lu
