CH Series Talcum powder Trough Shaped Mixer
Trough type mixer is used for mixing powdery or paste material, so that the homogeneous material is mixed evenly. The characteristic is that it is a horizontal trough with a single screw, and a stirring paddle is a way of the shaft. And the body is made of stainless steel, with good corrosion resistance, the mixing tank can be automatically reversed.
In addition to the whole of the external use of stainless steel plate cover, more easy to clean and maintenance. GMP requirements for pharmaceutical production.
Product features:
1, the dispersion is good: the device is fully resolved due to the specific gravity of the material caused by the uniformity of the degree is not high and dead and other issues. The equipment adopts a hybrid structure with five axis flying mortar, can effectively disperse various short fiber.
2, the use of a wide range: the device can meet the different requirements of the dry powder mortar production. Such as: masonry mortar, plastering mortar, thermal insulation system for the mortar, mortar and other polystyrene moisturizing dry mortar.
3, the investment is small: the equipment ha
s obvious advantages in price, small investment, quick effect.
4, the use of simple and convenient: the device has an area of small, simple operation, low energy consumption, can produce 5 to 8 tons per hour.
5, long service life: the equipment wearing parts of high strength wear-resistant steel for the part.
Parameters：
Model |
Working capacity(L) |
Main axis speed(r/min) |
Mixing time(min) |
Main motor(KW) |
Power of dumping motor(KW) |
Weight(kg) |
Dimension(mm) |
CH10 |
10 |
24 |
5-20 |
0.25 |
By hand |
40 |
600*280*450 |
CH50 |
50 |
24 |
5-20 |
1.1 |
0.75 |
280 |
980*420*880 |
CH100 |
100 |
24 |
5-20 |
2.2 |
0.75 |
350 |
1100*440*900 |
CH150 |
150 |
24 |
5-20 |
3 |
0.75 |
410 |
1280*600*1100 |
CH200 |
200 |
24 |
5-20 |
4 |
0.75 |
450 |
1400*600*1200 |
CH300 |
300 |
24 |
5-20 |
5.5 |
1.1 |
520 |
1850*700*1200 |
CH400 |
400 |
24 |
5-20 |
5.5 |
1.1 |
580 |
2100*750*1250 |
CH500 |
500 |
24 |
5-20 |
7.5 |
1.5 |
680 |
2150*750*1300 |
CH600 |
600 |
24 |
5-20 |
11 |
2.2 |
750 |
2200*750*1400 |
CH1000 |
1000 |
24 |
5-20 |
11 |
2.2 |
1200 |
2280*1100*1500 |

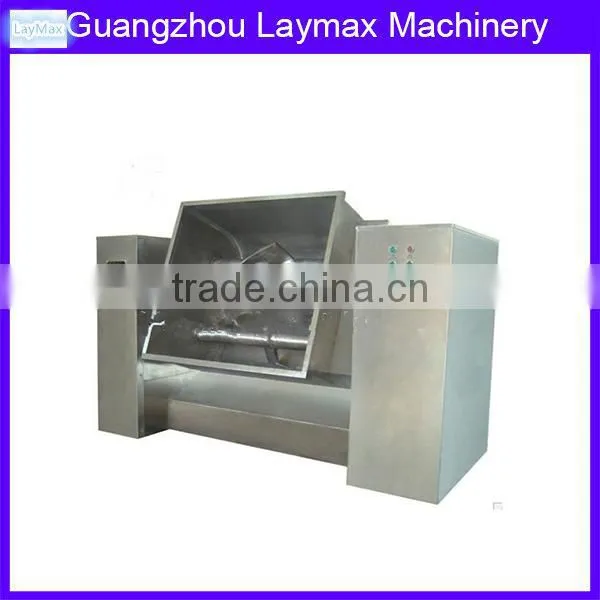

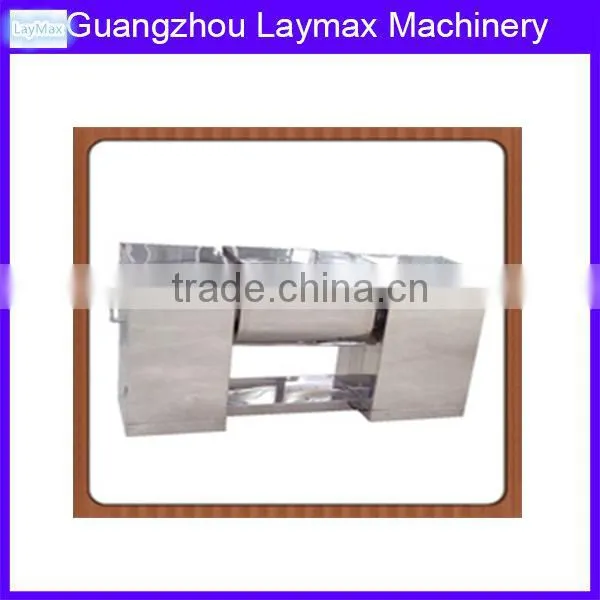

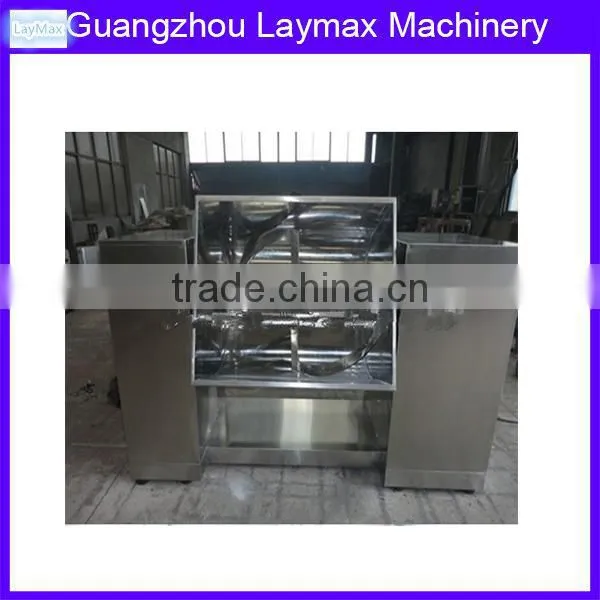

Product pictures:
Certification:
Instructions
1, before use should be carried out an air transport to test, the machine should check all the joints of the machine to the degree of tightness, reducer lubrication oil and motor equipment integrity, and then close the power switch for air transport. Respectively, the point of the inverted material, the reset button, check the work is good, in line with the above requirements for processing (the back button and the reset button can not be used at the same time).
The tank cover must be 2, after feeding, lest material shallow trough, cover glass can observe the mixing of materials, such as stirring effect, move the button down pouring material, which is close to the seat when the hopper stop, to prevent the bad parts, pouring is completed, press the reset the composite button, the trough to its original position.
Our Services
Pre-sale service:
1 Recommend the most suitable machine for customers,or design the machine specially according customers demand
2 strictly control easy production line and easy parts,to ensure machine quality,send customer machine working video
3 every machine is tested before delivery,to ensure machine function well.
After-sale service:
1 one year warranty
2 lifelong free technical support and spare parts support
3 help customers solve problem rapidly
Company Introduction:
Guangzhou Laymax Machinery Co.,Ltd. is located in Yonghe industrial zone,with only ten minutes to the subway.
Our company is a technology one with a collection of research and development, manufacture and selling, mainly concentrates on the designing and manufacturing food,pharmaceutical and chemical machinery.
From beginning to end, our company insists the operation principle of "High Standard, High Quality, High Efficiency", trying our best to provide customers super quality products, in order to create a win-win situation.
Our company sincerely welcomes customers from all walks of life to guide and conduct business.
Packing:
