Home > Products > Pharmaceutical Machine > China best supplier most hot sale famous brand with GMP standard and oversea servie pharmaceutical dry powder mixer machine
China best supplier most hot sale famous brand with GMP standard and oversea servie pharmaceutical dry powder mixer machine
- 100 Set / Sets per Month
- Huangpu/Guangzhou/Shenzhen
- T/T D/P D/A Credit Card
Product Details
Condition: | New | Mixer Type: | Other, 360 degree rotation | Product Type: | Other, mixer machine |
Application: | Powder | Additional Capabilities: | Drying | Brand Name: | Laymax |
Model Number: | V20D | Max. Loading Capacity: | 6L/6KG | Voltage: | 220v/380v |
Power(W): | 0.55kw | Dimension(L*W*H): | 1090*340*1055mm | Certification: | CE.ISO,GMP |
Warranty: | 12months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

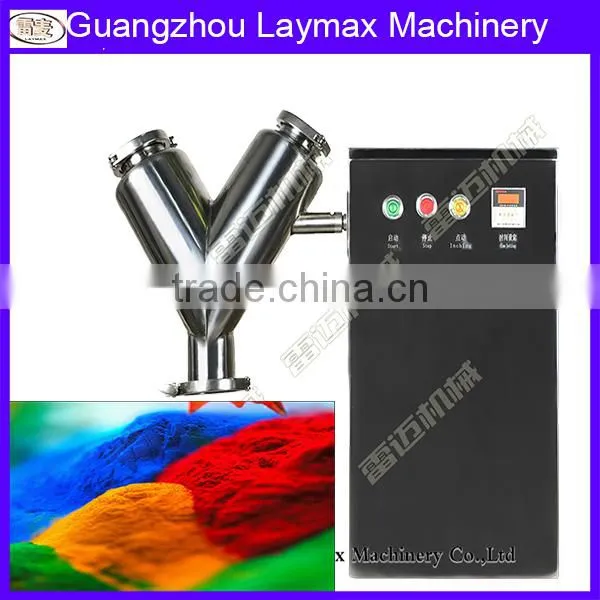

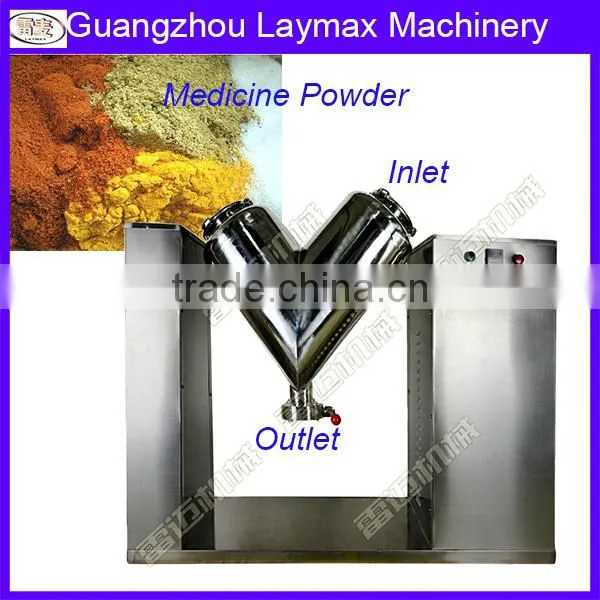

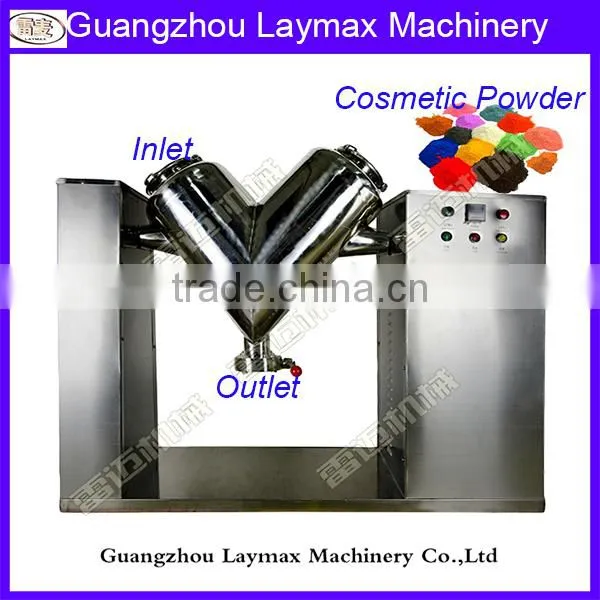

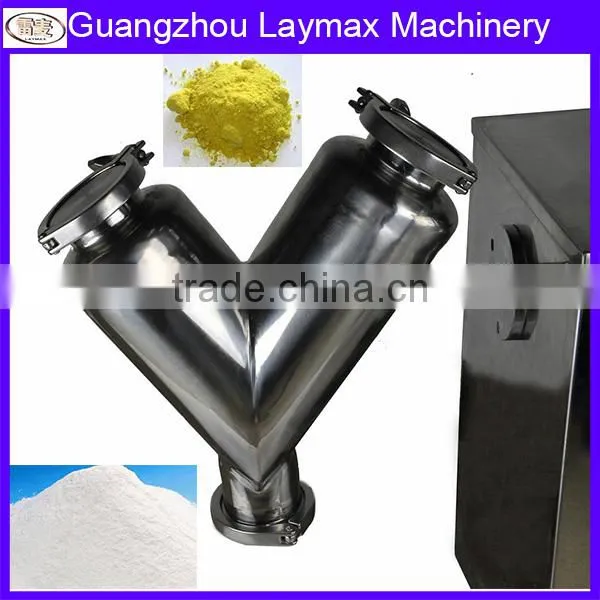

pharmaceutical dry powder mixer machine
We produce all knids of machines like pharmaceutical powder mixer machine,dry powder mixer machine,machine mixer,etc.
V14D Dry powder mixer is applicable to mix dry granule or powder for chemical,food,pharmacy,feedstuff,cematic,metallurgy and other industries.Reasonable structure,simple operation,easy to discharge material.The feeding cylinder is made of stainless steel,easy to clean.The machine is basic equipment for factories.
Technical parameter
Item | Vol of barrel | working vol | Motor power | mixed speed | overall size |
Max. filling volume
|
V5D | 5L | 2L | 0.55kw | 60r/min | 560*270*560mm | 2kg |
V8D | 8L | 3.2L | 0.55kw | 60r/min | 610*280*740mm | 2.5kg |
V14D | 14L | 5.6L | 0.55kw | 46r/min | 780*350*850mm | 4kg |
V20D | 20L | 8L | 0.55kw | 18r/min | 1090*340*1055mm | 6kg |

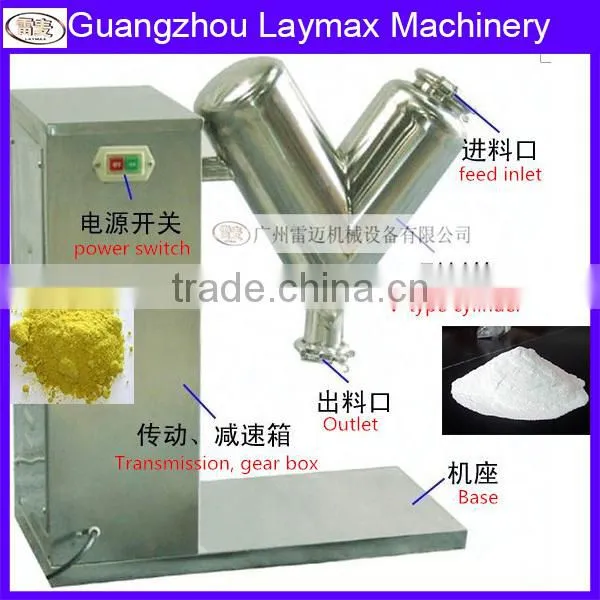

Working process
Equipped with motor and reducer,the power of motor will pass to reducer by V-belt,and reducer pass power to V type barrel by coupling axle device,so that the V barrel runs continuous.The materials will be mixed by 360degree.
Click on the following names, you will see our other products!!!
Grinding Machine Equipment
1. 2014 New Style Stainless steel grain milling machine
2. Auto-feeding material grain grinding mill machine
3. industrial micro powder grinding mill machine
4. Peanut butter grinding machine FS-40C
5. 100g small size high speed,stainless steel grinder FS100S-1
6. FS230 iron Universal tool grinder for forming tools, mills,drills universal grinding machine
7. Iron cutting machine 220V MF-430
8. Plastic Pulverizer machine/Food Material Crusher
9. industrial stainless water cooling universal grinder FS180-4W
10. Universal milling grinder machine with dust collector
11. Autimatic round Dust Collecting Grinding Machine
12. Full Stainless Steel universal Pulverizer,Herb Grinder
13. Guangzhou Petrol Engine grain grinding machine driven by gas
14. Water-flowing herbal medicine grinding machine
15. industrial chemical universal tool grinding pulverizer machine
Our other machines
standard exporting plywood case packing
inner package: stretch film
About our after-sales services:
1.24 hours after sale service;
2.Support global technology;
3.Professional operation process+production process+packing&shipping process.
About us:
Guangzhou Laymax machinery Co., Ltd locates in Yonghe industrial park, Panyu district, Guangzhou. We have most advanced machining equipments and testing instruments, good experience workers and professional designer. Laymax has already got several items technical monopoly. Our business scope is: manufacture food making machine, metal machining machine, electron industrial professional machine, distribute and retail trade.
Our main machines are: Grain grinding machine, stainless multi-functional grinding machine, tradition Chinese medicine mill machine, food material mill machine, water-flowing grinding machine, family high-speed grinding machine, peanut butter grinding machine; chestnut frying machine, cane sugar juicer machine.
Our Showroom
Contact Us
- Guangzhou Laymax Machinery Co., Ltd.
- Contact nameSophie Zhong
- Phone0086-20-2865 5086
- AddressNo. 181, Yonghe Industrial Zone, Shilian Road, Shiji Town, Panyu District Guangzhou,Guangdong
