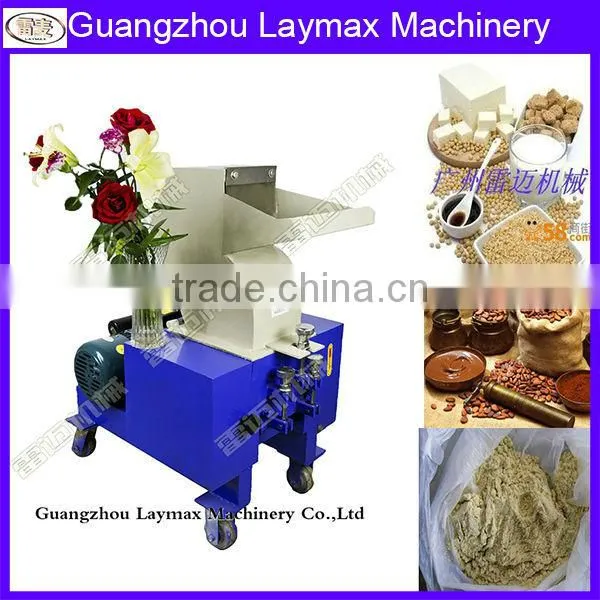

Industrial food crusher machine
Food Material Crusher has fineness regulator control milling bigger or smaller, this can avoid blocking when turning too tight.
Introduction: our all chemical material pulverizer is the new design after improvement, it is lower energy cost, light and grinding tool is good to cut, long time life.
Advantage:
Whole machine is good appearance, good painting

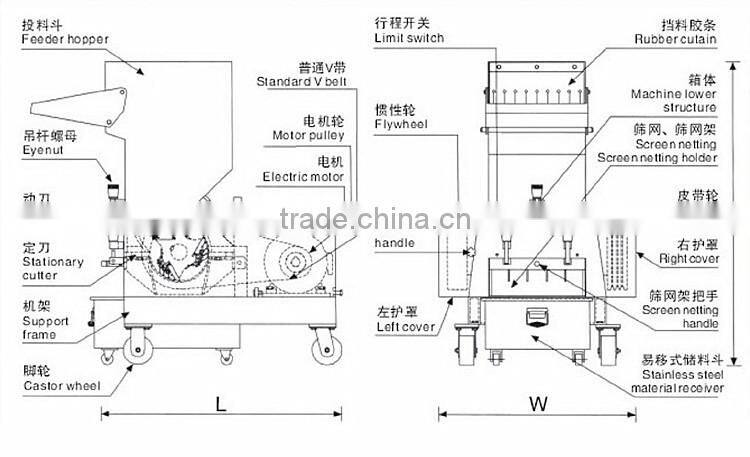

Inlet hooper, crushing tank, filter are separated design, it is easy to dismantle and install
Wave path feeding material, this can avoid material jump out
There are double layers to ant-noise on crushing tank wall, low noise during machine is working
There is safety cover upon belt wheel
We choose import high class tool steel to make cutting tools, you can sharp the tool after machine is used long time, this can extend whole machine’s working life
There is over load device for motor, also interlocking protect system for this machine
It is safety hand when cleaning machines
The tank device and cutting head is whole machining as one part, this is good for accuracy
The movable cutting seat is trapezoid cut, it is good for cutting tool’s working life and can enlarge the cutting power quickly. The cutting seat is heart treatment, it is good quality.
The whole structure is better for operating, and low cost
-
This general plastic pulverizer adopt hermetically-sealed bearing, this bearing can working in long time
Working principal:
The driving motor drive movable cutting seat rotating high speed, and the plastic was cut by movable and fixed cutting tool under high speed, after grinding, the final plastic goes through filter
Application:
Suitable for food area, medicine area, chemical area
Processing range:
This plastic pulverizer can process Chinese medicine herb, wood, chemical material and low hardness mineral, PSB, Nylon, engineer plastic, PVC foam, injection noozle. After changing the filter plate and adjust the cutting tool span, it also can crush blown film, rolling film, slice plastic, sheet plastic.
(if crush mineral water bottle, it is better to choose machine’s crushing tank is big than 400MM, and 16mm, 20mm filter is better.
Item No. |
PS180 |
PS250 |
PS300 |
PS400 |
PS500 |
PS600 |
PS800 |
Power(KW) |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
22 |
Working area size(mm) |
180*230 |
250*285 |
300*295 |
400*340 |
500*380 |
600*390 |
800*550 |
Motive blade |
6 |
6 |
9 |
9 |
11 |
18 |
24 |
Fixed blade |
2 |
2 |
2 |
2 |
4 |
4 |
4 |
output(kg/h) |
50~150 |
100~200 |
200~280 |
200~400 |
350~450 |
400~500 |
550~700 |
Mesh size(mm) |
6 |
8 |
8 |
10 |
10 |
10 |
12 |
Dimension(mm) |
780*600*940 |
900*650*1100 |
1050*750*1150 |
1100*900*1250 |
1250*1000*1450 |
1300*1100*1550 |
1580*1480*2100 |
Weight(kg) |
168 |
310 |
380 |
500 |
800 |
900 |
1350 |

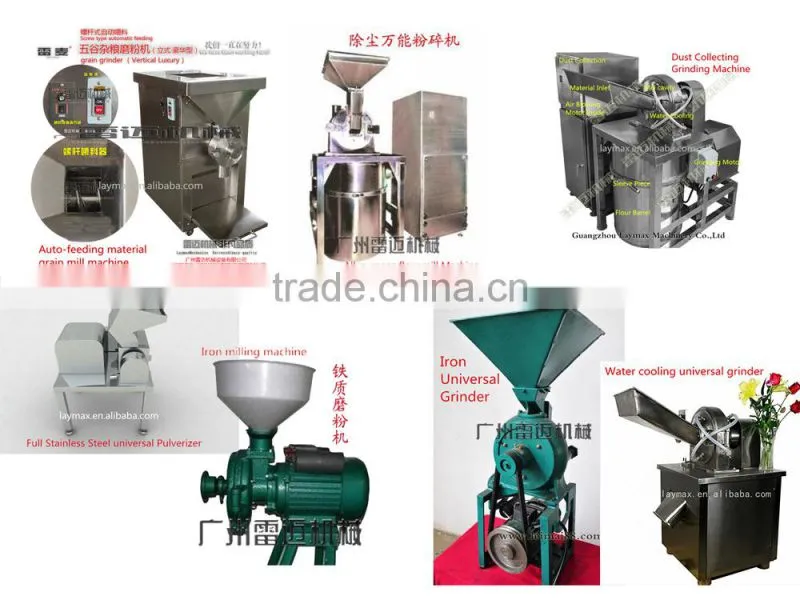

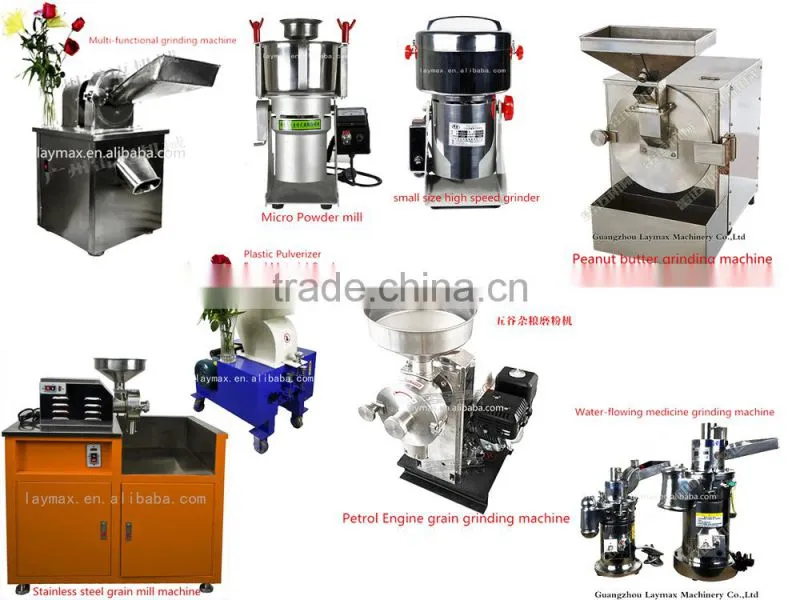

Our other machines
standard exporting plywood case packing
inner package: stretch film

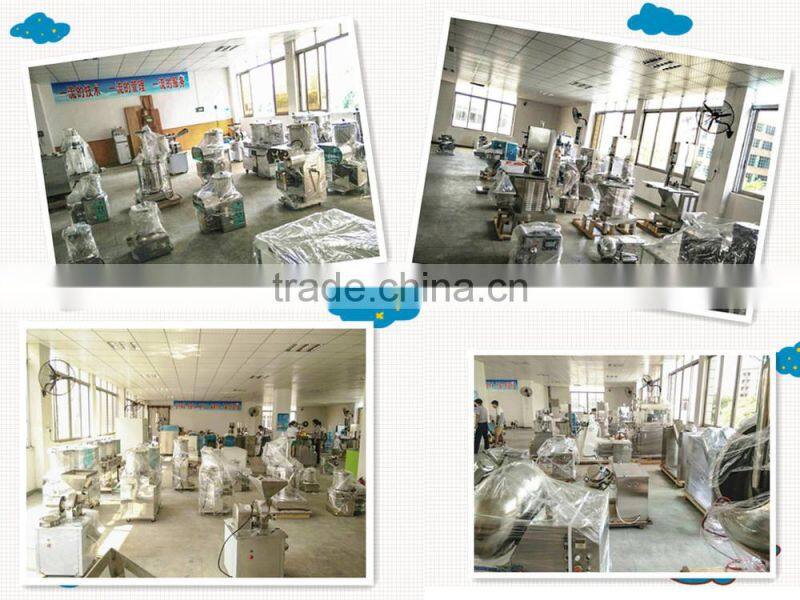

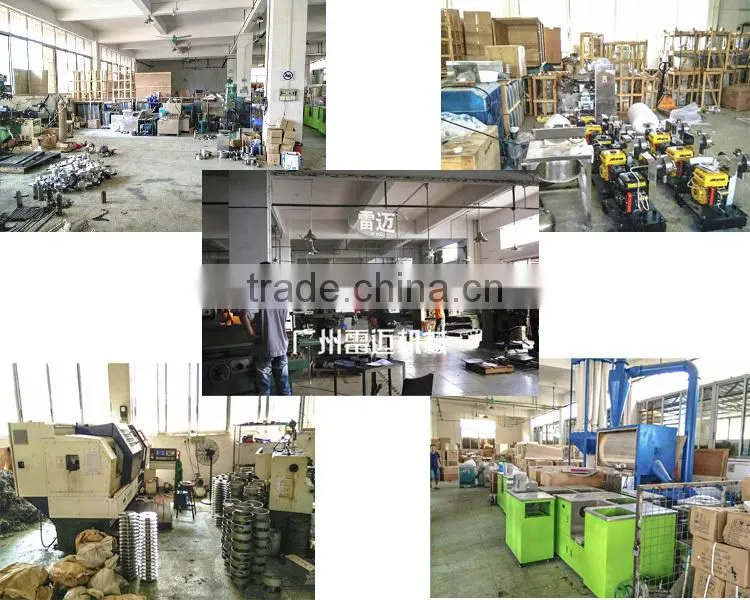

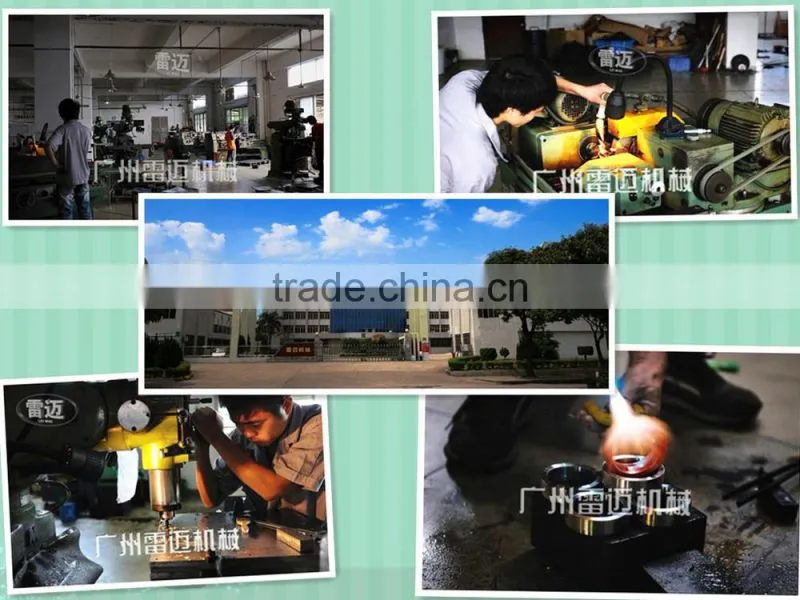

About us:
Guangzhou Laymax machinery Co., Ltd locates in Yonghe industrial park, Panyu district, Guangzhou. We have most advanced machining equipments and testing instruments, good experience workers and professional designer. Laymax has already got several items technical monopoly. Our business scope is: manufacture food making machine, metal machining machine, electron industrial professional machine, distribute and retail trade.
Our main machines are: Grain grinding machine, stainless multi-functional grinding machine, tradition Chinese medicine mill machine, food material mill machine, water-flowing grinding machine, family high-speed grinding machine, peanut butter grinding machine; chestnut frying machine, cane sugar juicer machine.
MORE PRODUCTS INFORMATION PLS BROWSE OUR WEBSITE:
www.laymax.en.china.cn
