Model |
FS180-4W |
FS250-4W |
FS320-4W |
FS350-4W |
FS400-4 |
Material |
304S.S |
304S.S |
304S.S |
304S.S |
304S.S |
Volt(v) |
220/380 |
380 |
380 |
380 |
380 |
Power(kw) |
2.2 |
5.5 |
7.5 |
11 |
15 |
Speed(r/min) |
4200 |
4200 |
4200 |
4200 |
4200 |
Fineness(mesh) |
10-150 |
10-150 |
10-150 |
10-150 |
10-120 |
Output(kg/h) |
10-120 |
30-200 |
50-300 |
70-500 |
100-800 |
Dimension(mm) |
480×520×1040 |
750×600×1260 |
780×700×1350 |
800×900×1550 |
1450×1300×2000 |
Weight(kg) |
75 |
180 |
260 |
320 |
600 |
If the grinding materials have the special physical and chemical properties,for example:
Low melting point,low flash point or easy to soft and sticky when it heats,thus cause it reduce the grinding effect or can not be grinded, even cause combustion or explosion.In this time,it is necessary to install the water-cooling device in the grinding equipment.

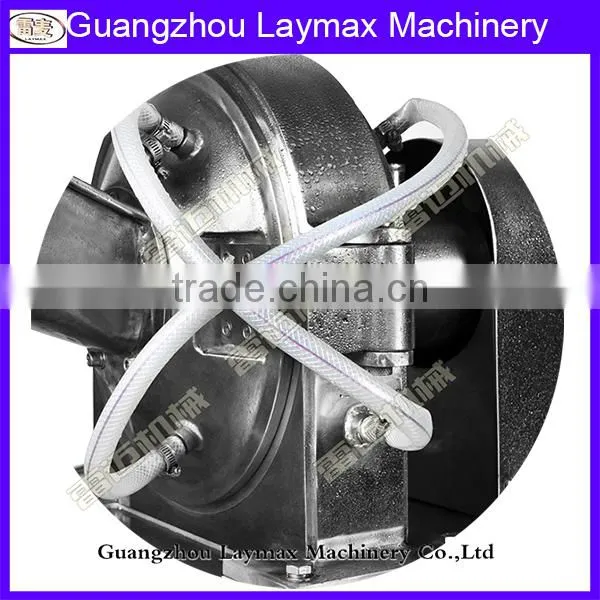

About the water-cooling device,it means that install the sealed water folder on the front wall and posterior wall of grinding cavity,making the flow running water or well water constantly flow into the posterior wall of water folder,then flow into the front wall of water holder,then from the front wall of water holder back into the posterior wall of water holder,finally out of the outlet of posterior wall.

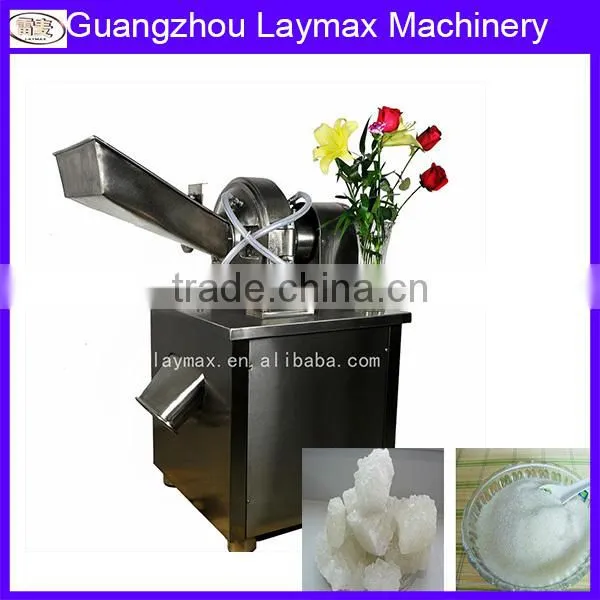

The purpose of water-cooling device is to reduce the temperature of grinding cavity. So this water cooling grinder is the best choice for grinding sugar and salt!

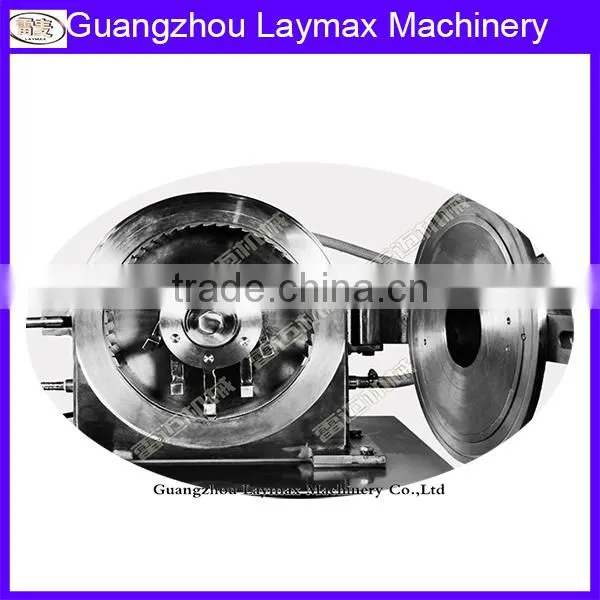

Hammer crusher
Hammer crusher used for crushing all kinds of fear of high temperature products(sugar,salt,etc)and herbs,especially it has high effect for crushing herbs with high fiber content.
The function of hammer is making high speed impact,beat and collision for the materials.
Grind sugar first choice! salt material grinder's first choice!

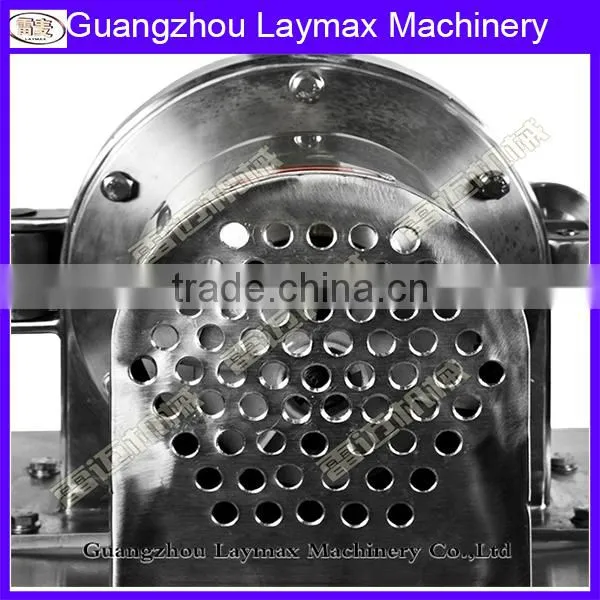

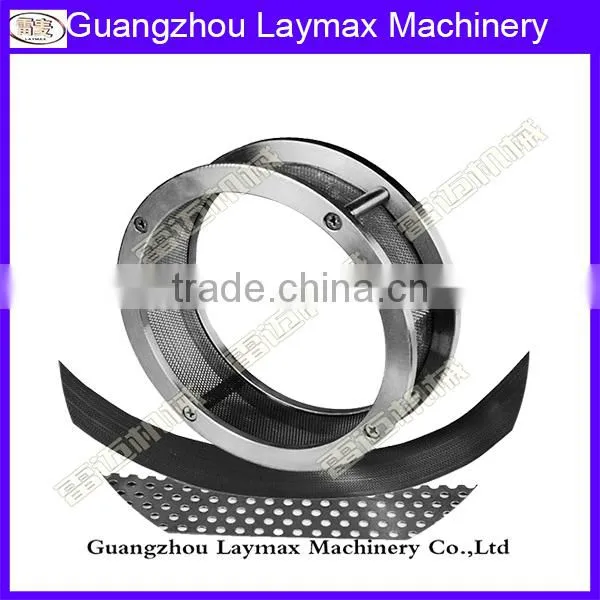

This machine is matched with filter screen, you can control the powder fineness mesh by exchanging different mesh filter screen.
Electromagnetic launcher
This an independent electrical device,which is equipped with contacts,start/stop button,as well as overheating,over-current,leakage protection.It has the shell protection,so that it is the patron saint of motor.
Guangzhou Laymax Machinery is a professional manufacturer of food processing machine and pharmyceutical Equipments .

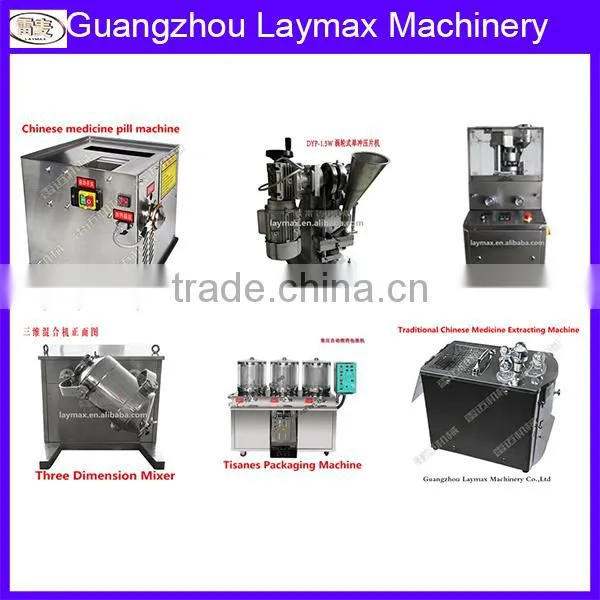

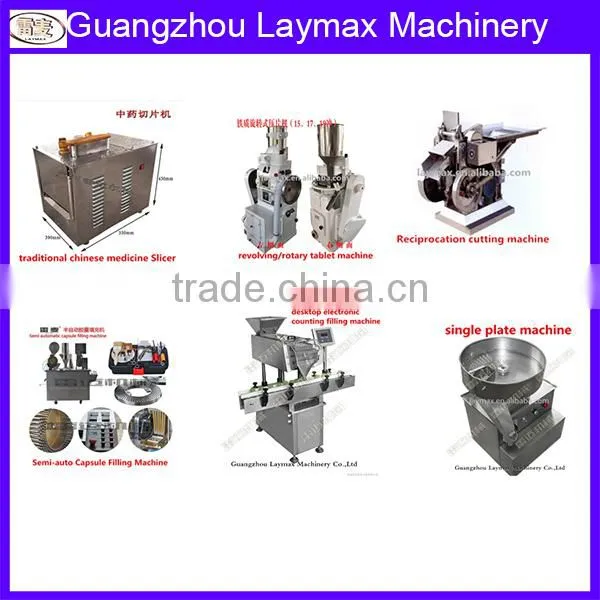

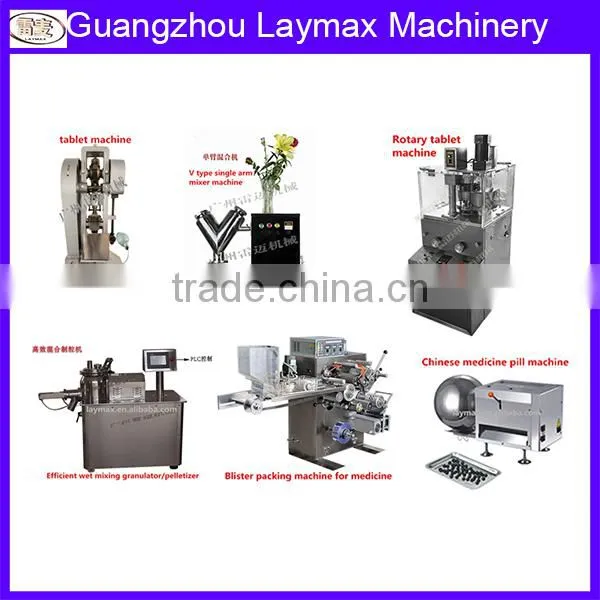

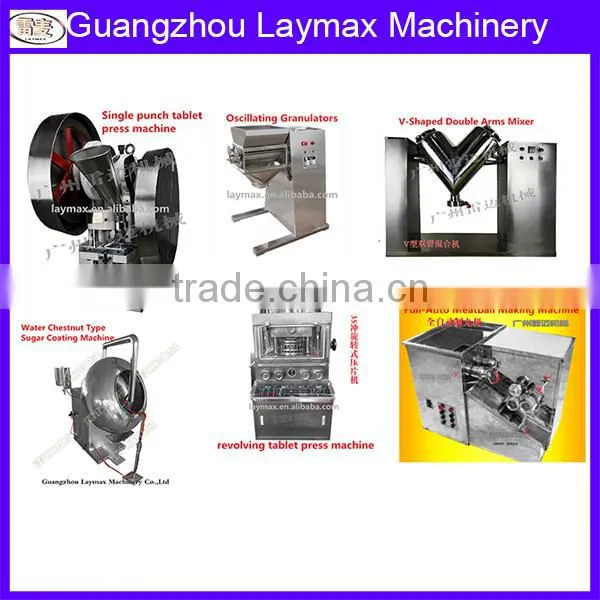

Our main pharmyceutical equipments are: single punch tablet press machine, rotary tablet press, granulator, pill making machine, powder mixer, blister packing machine, capsule filling machine, granule packing machine, tisanes packaging machine, tablet/capsule counter, Chinese medicine slicer, sugar/film coating machine and so on.

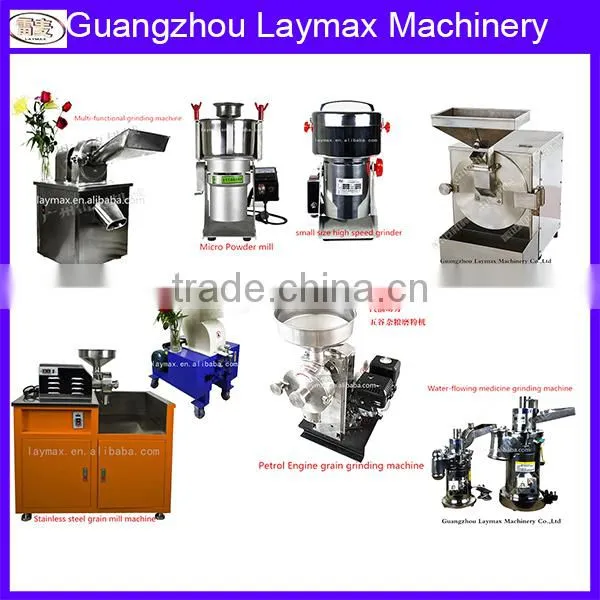

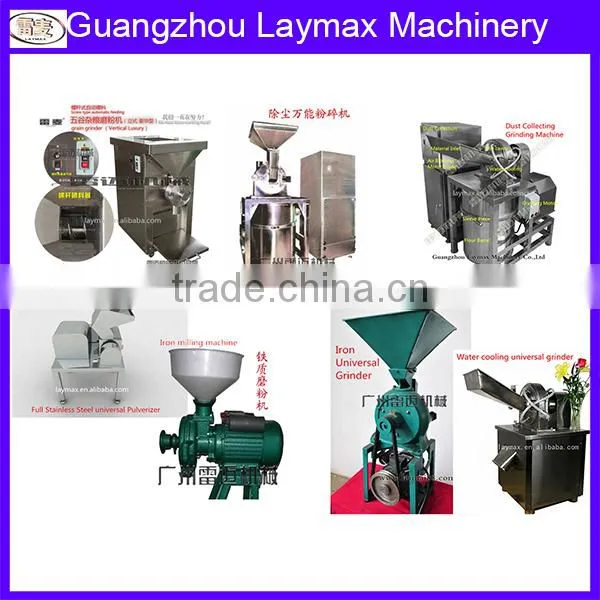

Main food equipments are: fineness powder grinder, Chinese medicine grinder, grains mill, sesame mill, coffee grinder, flour mill, pepper grinder, water cooling universal grinder, corn crusher, maize milling machine, cereal mill, cassava grinder, rice milling machine, spice grinder etc.
We also have meat process machine, like meat grinder, meat bone cutter, meatball making machine, stuffed meatball machine, meat slicer, sausage stuffing machine, mince meat machine and some other machhine as peanut oil extractor, drying oven, vacuum oven, nuts roaster.
On the basis of advanced equipment and workmanship, we have excellent production technicians and an efficient distribution team, as well as good service staff members, so that we can undertake your orders very efficiently. When we have the confidence on the high quality of our products, we offer very competitive prices at the same time.
Overall size: 780×700×1350mm
Weight: 260kg
Inner packing: stretch film
Outer packing: plywood case
Pls conatact with us anytime if need more information from us. Tks
