Cross fluted cooling tower fills improve water distribution by splitting the water stream as it descends through the fill pack. To achieve high thermal performance and low pressure drop, we add flute and micro-structure design with high fabrication standards. There are two configurations for counter flow and cross flow applications in areas of power, refining, chemical, food processing where water quality is good.

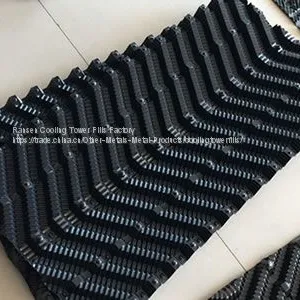

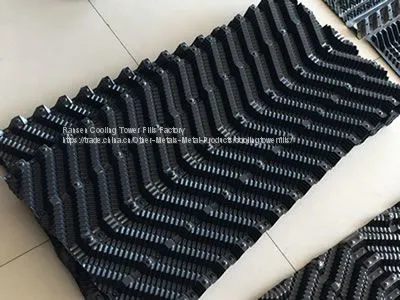

There are two pieces of cooling tower fills on the ground.
Black cross fluted fills has high UV resistance and high thermal performance.There is one pack of blue cooling tower fills with cross fluted design.

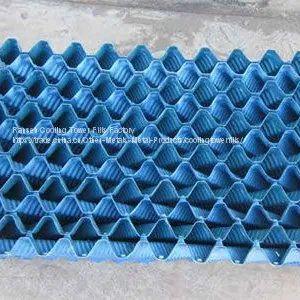

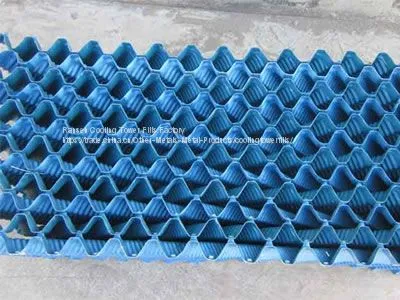

Cross fluted cooling tower fills in blue are also available for some towers.

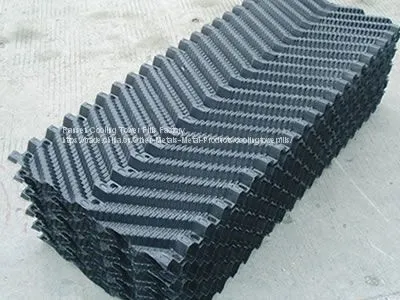

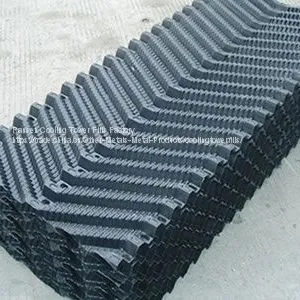

There is one cross fluted fill pack in black on the ground.

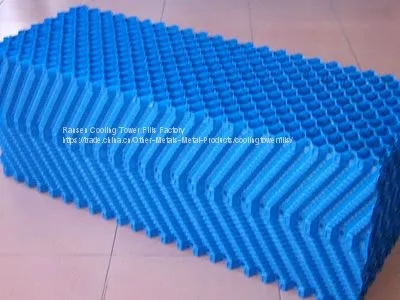

Black is the most favorable colour for cross fluted fill pack.One blue cross fluted fill pack is on the ground, each piece of the fill is placed from opposite direction alternatively.
Every two pieces of fills are placed from opposite direction forming cross fluted fill pack.
Feature
High thermal performance.
Improved water distribution.
Professional edge cutting technology for producing square packs which direct water to both sides of sheet efficiently.
Bonded edge with dedicated bond points for added strength.
Easy installation and long service life.
Various materials and sizes for choice.
Specification
Material: PP, PVC, HPVC.
Surface area (m2/m3): 102, 157.5, 226.
Sheet spacing: 11.7 mm, 19 mm, 30.5 mm for counter flow towers, and 12.5 mm for cross flow towers.
Flute angle: 27°/30° for counter flow towers, and 15°/45° for cross flow towers.
Depth: 100-610 mm.
Width: 153-610 mm.
Length: 305-3660 mm.
Application
Cross fluted cooling tower fills are designed for counter flow ＆ cross flow towers. They are widely used in industries of cooling water system, manufacturing and machining, etc.
