High Frequency High Voltage Generator

High Frequency High Voltage Generator thumbnail-1
High Frequency High Voltage Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Volvo
Model Number:
GNRV
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Volvo
Model Number GNRV
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 85KVA to 625KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 122A to 900A

Specifications

high voltage generator
1. Volvo OEM
2 low fuel consumption
3. Leroy Somer alternator!

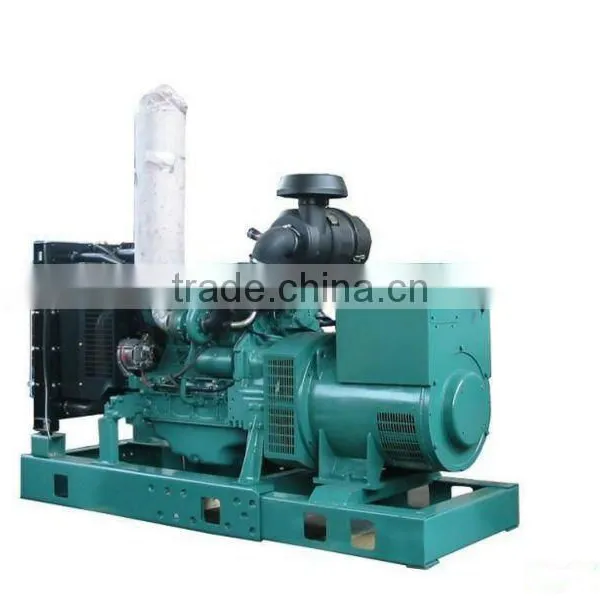

Volvo generator  have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance.    85KVA-625KVA Volvo diesel generator





Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRV95 68 85 76 95 TD520GE ≤213 4 4.67 108*130
GNRV110 80 100 88 110 TAD531GE ≤211 4 4.67 108*130
GNRV137 100 125 110 137 TAD532GE ≤204 4 4.67 108*130
GNRV165 120 150 132 165 TAD731GE ≤204 6 6.51 108*130
GNRV200 144 180 160 200 TAD732GE ≤204 6 6.73 108*130
GNRV225 160 200 180 225 TAD733GE ≤204 6 7.28 108*130
GNRV275 200 250 220 275 TAD734GE ≤200 6 7.28 108*135
GNRV350 250 312 280 350 TAD941GE ≤198 6 9.36 131*150
GNRV413 300 375 330 413 TAD1241GE ≤198 6 12.3 131*150
GNRV450 320 400 360 450 TAD1242GE ≤198 6 12.3 131*150
GNRV500 360 450 400 500 TAD1640GE ≤198 6 16.12 144*165
GNRV560 400 500 450 560 TAD1641GE ≤198 6 16.12 144*165
GNRV625 450 563 500 625 TAD1642GE ≤198 6 16.12 144*165
GNRV688 500 625 550 688 TAD1643GE ≤198 6 16.12 144*165



Performance Feature of noiseless generator



* Engine and alternator shall be mounted on a same frame steel skid.

* Built-in damper for anti-vibration.

* Small size, low weight, easy to operating, installation and maintenance.

* World most famous brand diesel engine.

* World famous brand AC alternator: Stamford, Marathon, Leroy Somer, Engga.

* Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485

* Full range protect function and alarm shutdown feature.



Alternator Feature of noiseless generator

* Brush-less, 4 poles, rotation magnet.

* IP21-23(NEMA1) enclosure is standard for all industrial alternators.

* The insulation system is Class H

* Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.

* Wide range of flange adaptors and single bearing disc coupling.

* Standard 2/3 pitch windings avoid excessive neutral currents

* AVR auto voltage regulator, auto exciter, auto adjustment.



Standard Accessory of noiseless generator

Common steel base frame, Circuit breaker, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
