Specifications
Power Plant1.OEM top quality
2.customized samples is acceptable
3.Noise level: 66dB(A) @ 7m
4.Warranty: 12 months
35kva -900kva Diesel generator power plant
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRV110 | 80 | 100 | 88 | 110 | TAD531GE | ≤211 | 4 | 4.67 | 108*130 |
| GNRV137 | 100 | 125 | 110 | 137 | TAD532GE | ≤204 | 4 | 4.67 | 108*130 |
| GNRV165 | 120 | 150 | 132 | 165 | TAD731GE | ≤204 | 6 | 6.51 | 108*130 |
| GNRV200 | 144 | 180 | 160 | 200 | TAD732GE | ≤204 | 6 | 6.73 | 108*130 |
| GNRV225 | 160 | 200 | 180 | 225 | TAD733GE | ≤204 | 6 | 7.28 | 108*130 |
| GNRV275 | 200 | 250 | 220 | 275 | TAD734GE | ≤200 | 6 | 7.28 | 108*135 |
| GNRV350 | 250 | 312 | 280 | 350 | TAD941GE | ≤198 | 6 | 9.36 | 131*150 |
| GNRV413 | 300 | 375 | 330 | 413 | TAD1241GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV450 | 320 | 400 | 360 | 450 | TAD1242GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV500 | 360 | 450 | 400 | 500 | TAD1640GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV560 | 400 | 500 | 450 | 560 | TAD1641GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV625 | 450 | 563 | 500 | 625 | TAD1642GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV688 | 500 | 625 | 550 | 688 | TAD1643GE | ≤198 | 6 | 16.12 | 144*165 |

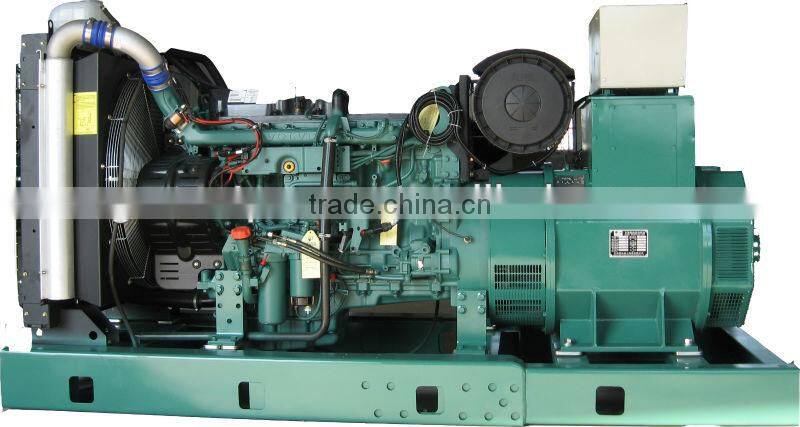

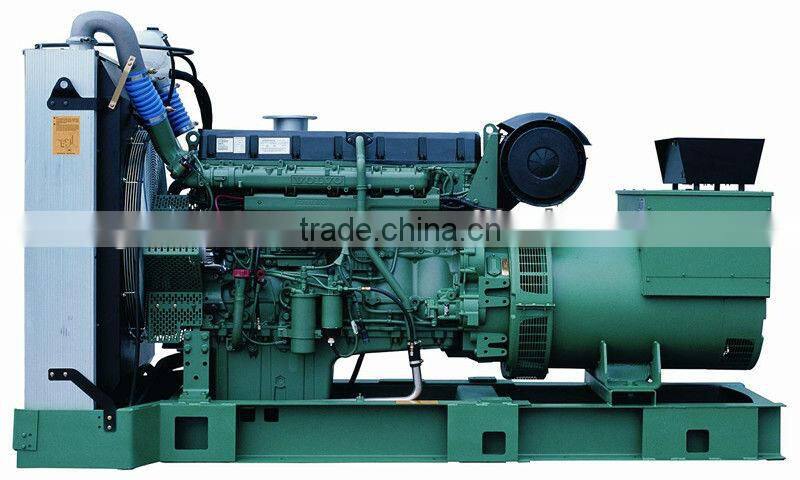

Volvo Silent Diesel Generator power plant
Specifications of Volvo power plant
1) Output range: from 68KW (85kVA) up to 500kW (625kVA)
2) Diesel engine: Volvo series diesel engine
3) Alternator: Stamford, Marathon, Leroy Somer and Chinese brand with brushless
and "H" Class Insulation.
4) Forced curcuit Water-cooled
5) 8hrs operation base tank
6) Key start/auto startto start
7) Soundproof/weatherprooc, weatherproof canopy optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current

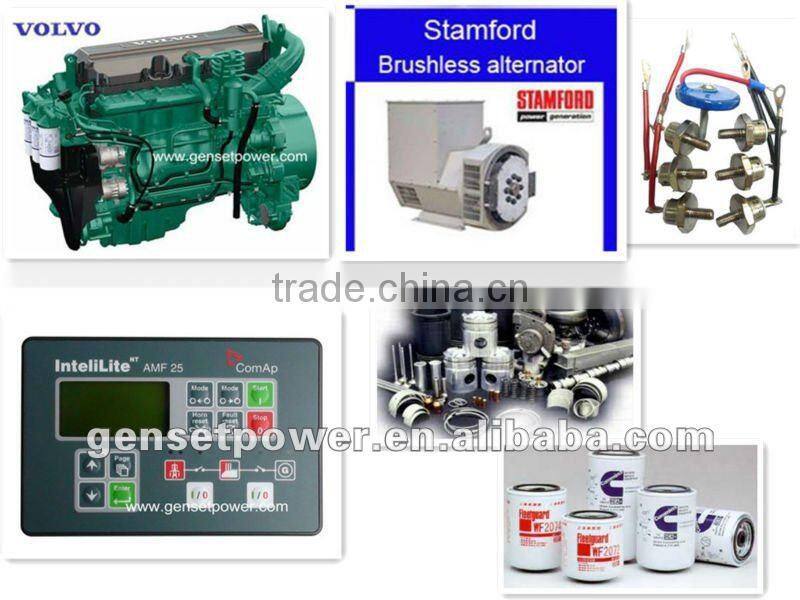

9) Standard configuration of power plant:
a) Engine: Volvo series diesel engine
b) Engine type: water-cooled, in line four-stoke, direct injection
c) Alternator: brushless alternator
10)Control system:
a) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
11) Starting system: DC battery is used to start engine
12) Filter system: oil, fuel and air filterr filter
13) Accessories: exhaust elbow, bellow, muffler
14) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank(Fan and water tank cooling system)
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer
