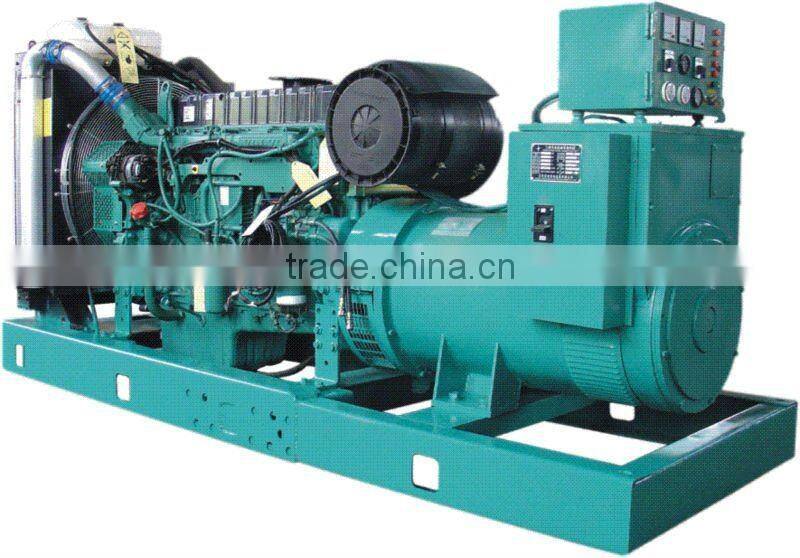

68KW to 500KW Volvo Power Plant

68KW to 500KW Volvo Power Plant thumbnail-1
68KW to 500KW Volvo Power Plant photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Volvo
Model Number:
GNRV
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Volvo
Model Number GNRV
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 68KW to 500KW
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 122A to 900A

Specifications

Detailed Product Description
-OEM top quality
-customized samples is acceptable
-Warranty:12 months & 1000 hours

   85KVA to 625KVA Volvo diesel generator





Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRV95 68 85 76 95 TD520GE ≤213 4 4.67 108*130
GNRV110 80 100 88 110 TAD531GE ≤211 4 4.67 108*130
GNRV137 100 125 110 137 TAD532GE ≤204 4 4.67 108*130
GNRV165 120 150 132 165 TAD731GE ≤204 6 6.51 108*130
GNRV200 144 180 160 200 TAD732GE ≤204 6 6.73 108*130
GNRV225 160 200 180 225 TAD733GE ≤204 6 7.28 108*130
GNRV275 200 250 220 275 TAD734GE ≤200 6 7.28 108*135
GNRV350 250 312 280 350 TAD941GE ≤198 6 9.36 131*150
GNRV413 300 375 330 413 TAD1241GE ≤198 6 12.3 131*150
GNRV450 320 400 360 450 TAD1242GE ≤198 6 12.3 131*150
GNRV500 360 450 400 500 TAD1640GE ≤198 6 16.12 144*165
GNRV560 400 500 450 560 TAD1641GE ≤198 6 16.12 144*165
GNRV625 450 563 500 625 TAD1642GE ≤198 6 16.12 144*165
GNRV688 500 625 550 688 TAD1643GE ≤198 6 16.12 144*165





Diesel Engine Generator Volvo
Specifications of Volvo diesel generator set tor set ,Volvo generator:
1) Output range: from 68KW (85kVA) up to 500kW (625kVA)
2) Diesel engine: Volvo series diesel engine
3) Alternator: Stamford, Marathon, Leroy Somer and Chinese brand with brushless
and "H" Class Insulation.
4) Forced curcuit Water-cooled
5) 8hrs operation base tank
6) Key start/auto startto start
7) Soundproof/weatherprooc, weatherproof canopy optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current

9) Standard configuration of gen sets:
a) Engine: Volvo series diesel engine
b) Engine type: water-cooled, in line four-stoke,  direct injection
c) Alternatolternator: brushless alterna alternator

10)Control system:
a) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers

11) Starting system: DC battery is used to start engine
12) Filter system: oil, fuel and air filterr filter
13) Accessories: exhaust elbow, bellow, muffler

14) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank(Fan and water tank cooling system)
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer



68KW to 500KW Volvo power plant
