Home > Products > Mobile Lighting Tower > Mobile Light Tower Generator 3 Phase

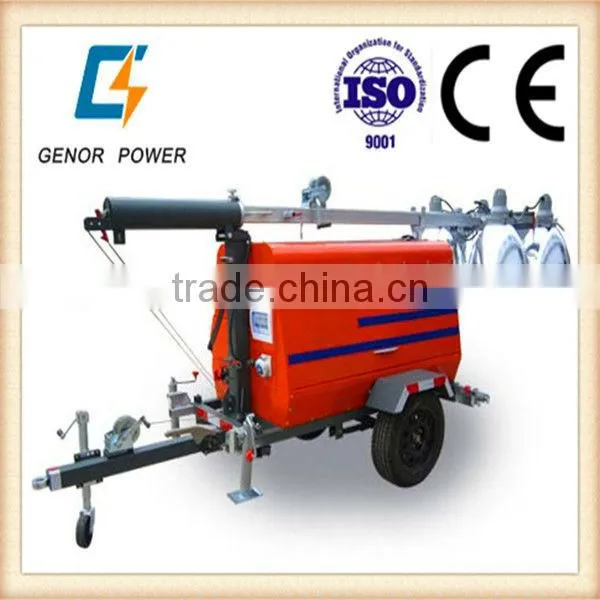

Mobile Light Tower Generator 3 Phase
- 200 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Lighting Tower Generator | Model Number: | GNRL |
Output Type: | AC Three Phase | Speed: | 1500rpm or 1800rpm | Frequency: | 50Hz or 60Hz |
Rated Power: | 6KW | Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Rated Current: | options |
Product Description
Specifications
Mobile Light Tower Generator 3 Phase1.World Brand Diesel Generator
2.9m Mast with 4 Light Tower
3.Warranty 1year
4.CE
Mobile Light Tower Generator 3 Phase
Parameters:
Product Model | GRNL-6000 | |||||||
Length (mm) | 2861 (2260, dismantle the tow bar ) | |||||||
Width (mm) | 1542 | |||||||
Height (mm) | 2334 | |||||||
Mast Heigth(Fully Extended) | 9m | |||||||
Weight (net) | 1150 kg | |||||||
Engine Brand | Kubota | Yanmar | Perkins | Quanchai | ||||
Engine model | D1105 | 3TNV76 | 403D-11G | 380D | ||||
Frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
Speed (rpm) | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 |
Continued Power (kVA) | 7 | 9 | 7 | 9 | 7 | 9 | 7 | 9 |
Number of Cylinders | 3 | |||||||
Diesel Engine Characters | 4 cycle, In line, Watercooled Diesel | |||||||
Combustion Type | Precombustion | Indirect Injection | Indirect Injection | Direct Injection | ||||
Engine Aspiration | Natural | |||||||
Emission Level | Stage3 | Tier4 | Stage3 | Tier4 | Stage2 | Tier4 | NA | Tier4 |
|
| |||||||
Alternator Model | Stamford PI044D/LSA40VS0 | |||||||
Frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
Continued Power (kVA) | 6 | 7.5 | 6 | 7.5 | 6 | 7.5 | 6 | 7.5 |
Alternator | Brushless & Single phase | |||||||
Vol | 230 | |||||||
Alternator Insulation | H | |||||||
Fuel Tank Capacity | 135 liters (35 US Gallons) | |||||||
Fuel Tank Operating Hours | 65 hours | |||||||
Type of Lights | Metal Halide Floodlight (Chinese Brand) | |||||||
Number & Power of Lights | 4×1000W | |||||||
Mast Lifting & Extension | Hydraulic operation | |||||||
Number of Mast Section | 8 | |||||||
Mast Rotation | 359° Manual operation | |||||||
Light Tilt | Electric operation (90°) | |||||||
Mast Base Support | 90°Vertically | |||||||
Trailer Suspension System | rubberTorsion axle (Al-ko) | |||||||
Braking System | Inertia drum braking with stable towing height, parking brake | |||||||
Hitch | Ball / O ring | |||||||
Tire Rim Size | 14” | |||||||
Output Socket | 2PCS(230V, 10A) | |||||||
Acoustic Pressure | 65dB(A) at 7 meters away | |||||||
Load Capacity for 40'GP (Units) | 8 |
Engine Features:
1. World most famous brand diesel engine: Kubota/Yanmar/Perkins/Cummins
2. Mufti-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
