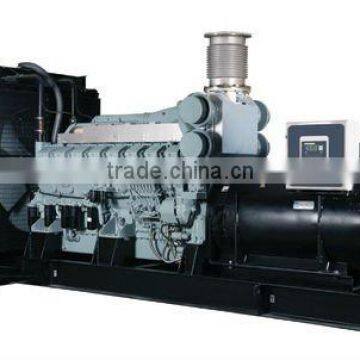

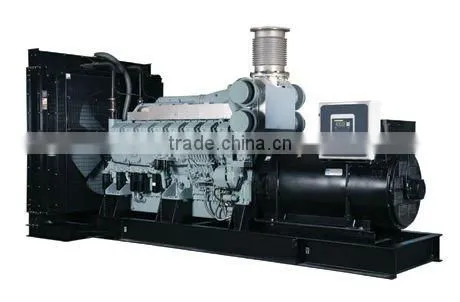

Japan Mitsubishi Diesel Generator

Japan Mitsubishi Diesel Generator thumbnail-1
Japan Mitsubishi Diesel Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Mitsubishi
Model Number:
GNRM
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Mitsubishi
Model Number GNRM
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 300kw to1200kw
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 540A to 2160A

Specifications

1 Mitsubishi engine
2 Deepsea control plane
3 High efficiency and reliability
4.one year warranty

Our company  install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.



Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRM413 300 375 330 413 S6B3-PTA ≤211 6 14.6 135*170
GNRM500 360 450 400 500 S6A3-PTA ≤213 6 18.6 150*175
GNRM550 400 500 440 550 S6A3-PTAA ≤213 6 18.6 150*175
GNRM650 480 600 520 650 S6R-PTA ≤206 6 24.5 170*180
GNRM750 520 650 600 750 S6R2-PTA ≤205 6 30 170*220
GNRM825 600 750 660 825 S6R2-PTAA ≤211 6 30 170*220
GNRM908 660 825 726 908 S12A2-PTA ≤214 12 33.9 150*160
GNRM1125 800 1000 900 1125 S12H-PTA ≤206 12 37.1 150*175
GNRM1375 1000 1125 1100 1375 S12R-PTA ≤205 12 49 170*180
GNRM1500 1100 1375 1200 1500 S12R-PTA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S12R-PTAA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S16R-PTA ≤207 16 65.4 170*180





The specification of engine:

1)engine model: mitsubishi

2)engine part :water tower,fan,fuel tank

3)governor system:electrical or mechanical governor

4)aspiration mode:natural, turbocharged

5)start method: 12V/24V DC electric starting

6)low fuel cnsumption,low noise,small volume,light weight

7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions



The specification of alternator:

1)alternator model: stamford, Leroy, Marathon

2)regulator: AVR automatic voltage regulating

3)insulation degree: H degree

4) Protection class :IP21-23

5)power factor:3 phase 4 wire

6)Motor: bronze brushless

7) rated voltage:  220V/380V, 230V/400V, 240V/415V .

8)rate frequency:50/60 HZ



control panel

1)automatic cutter which is suitable for the generator power.
2)Turn on key
3)A device to measure the generators speed
4)Counter for measuring the Operating hours
5)Device to measure the current overload with a switched current

6)A device to measure the battery voltage
7)Voltmeter with a voltage exchanger
8)A device to measure the frequency
9)Thermostat to regulate the voltage
10)A device to measure the oil pressure
11)Alerting lamps indicating low and high temperature
12)Controller of the current increase and short circuit
13)Emergency stop button





Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.





Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.





Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Four hours testing before out factory and CCIB inspection

5. ISO9001:2000 and CE certification
