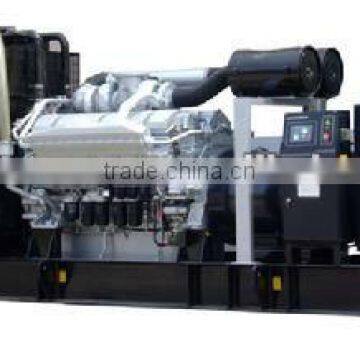

Japanese Mitsubishi Electrical Generator

Japanese Mitsubishi Electrical Generator thumbnail-1
Japanese Mitsubishi Electrical Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Mitsubishi
Model Number:
GNRM
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Mitsubishi
Model Number GNRM
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 375KVA to 1500KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 540A to 2160A

Specifications

1 OEM Mitsubishi
2 Low consumption
3 High efficiency and reliability
4.stamford alternator

Our company  install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.



Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRM413 300 375 330 413 S6B3-PTA ≤211 6 14.6 135*170
GNRM500 360 450 400 500 S6A3-PTA ≤213 6 18.6 150*175
GNRM550 400 500 440 550 S6A3-PTAA ≤213 6 18.6 150*175
GNRM650 480 600 520 650 S6R-PTA ≤206 6 24.5 170*180
GNRM750 520 650 600 750 S6R2-PTA ≤205 6 30 170*220
GNRM825 600 750 660 825 S6R2-PTAA ≤211 6 30 170*220
GNRM908 660 825 726 908 S12A2-PTA ≤214 12 33.9 150*160
GNRM1125 800 1000 900 1125 S12H-PTA ≤206 12 37.1 150*175
GNRM1375 1000 1125 1100 1375 S12R-PTA ≤205 12 49 170*180
GNRM1500 1100 1375 1200 1500 S12R-PTA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S12R-PTAA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S16R-PTA ≤207 16 65.4 170*180





The specification of diesel generating set

1)Type:open,sound proof,weather proof

2)Power:375kva to 1500kva

3)Rated voltage: 220V/380V, 230V/400V, 240V/415V

4)Frequency:50Hz/60Hz

5)Rated speed:1500rpm/1800rpm

6)Output type: single phase/AC three phase

7)Steel structure base

8)Optional:fuel tank,battery,charger





The specification of engine:

1)engine model: mitsubishi

2)engine part :water tower,fan,fuel tank

3)governor system:electrical or mechanical governor

4)aspiration mode:natural, turbocharged

5)start method: 12V/24V DC electric starting

6)low fuel cnsumption,low noise,small volume,light weight

7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions



The specification of alternator:

1)alternator model: stamford, Leroy, Marathon

2)regulator: AVR automatic voltage regulating

3)insulation degree: H degree

4) Protection class :IP21-23

5)power factor:3 phase 4 wire

6)Motor: bronze brushless

7) rated voltage:  220V/380V, 230V/400V, 240V/415V .

8)rate frequency:50/60 HZ



Digital Control Panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



Warranty and Maintenance

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first.

3) After expiration, we provide spare parts maintenance with low
