Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Dealer Mitsubishi Diesel Generator Set

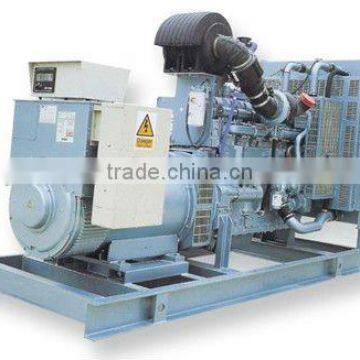

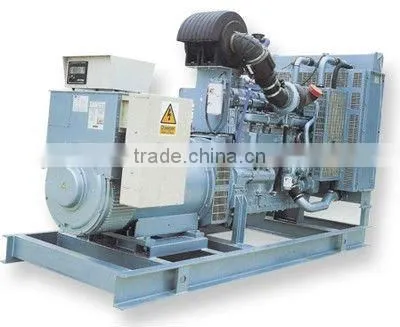

Dealer Mitsubishi Diesel Generator Set

Dealer Mitsubishi Diesel Generator Set thumbnail-1
Dealer Mitsubishi Diesel Generator Set photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Mitsubishi
Model Number:
GNRM
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Mitsubishi
Model Number GNRM
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 375KVA to 1875KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 540A to 2700A

Specifications

1 Mitsubishi Diesel Generator
2 Low consumption
3 High efficiency and reliability
4 Original Japan

The specification of diesel generating set

1)Type:open,sound proof,weather proof

2)Power:375kva  to 1875kva

3)Rated voltage::  220V/380V, 230V/400V, 240V/415V

4)Frequency:50Hz/60Hz

5)Rated speed:1500rpm/1800rpm

6)Output type: single phase/AC three phase

7)Steel structure base

8)Optional:fuel tank,battery,charger





The specification of engine:

1) engine model:  Mitsubishi

2) engine part :water tower,fan,fuel tank

3) governor system:electrical or mechanical governor

4) aspiration mode:natural, turbocharged

5) start method: 12V/24V DC electric starting

6) low fuel cnsumption,low noise,small volume,light weight

7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions





The specification of alternator:

1)alternator model: stamford, Leroy, Marathon.Engga

2)regulator: AVR automatic voltage regulating

3)insulation degree: H degree

4)power factor:3 phase 4 wire

5)Motor: bronze brushless

6) IP21-23 enclosure





Control System
Manual/Automatic start & stop controller
Various Monitor Meter and Optional Switch
Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
MCCB for Short circuit & Overload (optional)
High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm

optional:

1)Auto-remove Monitor Panel

2)Auto Transfer System(ATS)

3)Auto-combine Cabinet

4)Sound proof canopy

5)Intelligent controlling system





Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRM413 300 375 330 413 S6B3-PTA ≤211 6 14.6 135*170
GNRM500 360 450 400 500 S6A3-PTA ≤213 6 18.6 150*175
GNRM550 400 500 440 550 S6A3-PTAA ≤213 6 18.6 150*175
GNRM650 480 600 520 650 S6R-PTA ≤206 6 24.5 170*180
GNRM750 520 650 600 750 S6R2-PTA ≤205 6 30 170*220
GNRM825 600 750 660 825 S6R2-PTAA ≤211 6 30 170*220
GNRM908 660 825 726 908 S12A2-PTA ≤214 12 33.9 150*160
GNRM1125 800 1000 900 1125 S12H-PTA ≤206 12 37.1 150*175
GNRM1375 1000 1125 1100 1375 S12R-PTA ≤205 12 49 170*180
GNRM1500 1100 1375 1200 1500 S12R-PTA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S12R-PTAA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S16R-PTA ≤207 16 65.4 170*180
GNRM1875 1300 1625 1500 1875 S16-PTA ≤207 16 65.4 170*180
GNRM2100 1500 1875 1680 2100 S16-PTA2 ≤207 16 65.4 170*180
GNRM2250 1600 2000 1800 2250 S16-PTAA2 ≤207 16 65.4 170*180
