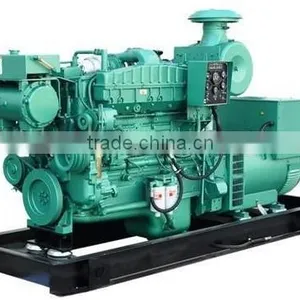

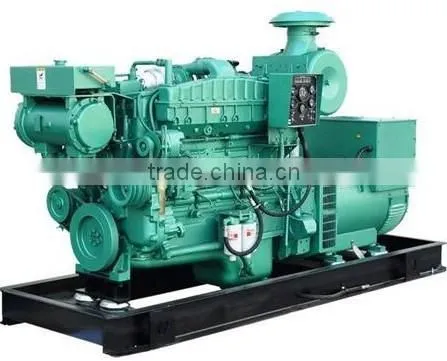

China Guangzhou 80kw to 400kw Backup Emergency Marine Generator Set
- 200 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GENOR POWER | Model Number: | GNRC |
Output Type: | AC Three Phase | Speed: | 1500rpm or 1800rpm | Frequency: | 50Hz or 60Hz |
Rated Power: | 40kw to 800kw | Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Rated Current: | 72A to 1440A |
Product Description
China Guangzhou 80kw to 400kw Backup Emergency Marine Generator Set
1) Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships and other projects.
2) Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc
3) Compact, high power per liter;
4) Full range protection function and alarm shutdown feature.
5) Bronze gear-type sea water pump;
Genset Model | Prime Power | Standby Power | Engine Model | Rated Power | Dimension | Weight | ||
KW | KVA | KW | KVA | KW/RPM | L×W×H(mm) | Kgs | ||
GNRC40M | 40 | 50 | 44 | 55 | 4BTA3.9-GM47 | 47/1500 | 1670*850*1270 | 800 |
GNRC50M | 50 | 63 | 55 | 69 | 6BT5.9-GM83 | 83/1500 | 1900*895*1300 | 1000 |
GNRC65M | 65 | 81 | 72 | 89 | 6BT5.9-GM83 | 83/1500 | 1900*900*1300 | 1100 |
GNRC80M | 80 | 100 | 88 | 110 | 6BTA5.9-GM100 | 100/1500 | 1920*895*1300 | 1250 |
GNRC100M | 100 | 125 | 110 | 138 | 6CT8.3-GM115 | 115/1500 | 2110*810*1360 | 1650 |
GNRC125M | 125 | 156 | 138 | 172 | 6CTA8.3-GM155 | 155/1500 | 2110*810*1360 | 1700 |
GNRC140M | 140 | 175 | 154 | 193 | NT855-DM | 180/1500 | 2685*995*1790 | 1750 |
GNRC170M | 170 | 213 | 187 | 234 | NT855-DM | 205/1500 | 2690*995*1790 | 2900 |
GNRC200M | 200 | 250 | 220 | 275 | NTA855-DM | 240/1500 | 2760*995*1790 | 3100 |
GNRC240M | 240 | 300 | 264 | 330 | NTA855-DM | 284/1500 | 2760*995*1790 | 3180 |
GNRC270M | 270 | 338 | 297 | 371 | NTA855-DM | 306/1500 | 2850*995*1790 | 3250 |
GNRC300M | 300 | 375 | 330 | 413 | KTA19-DM | 336/1500 | 3170*1000*1905 | 3750 |
GNRC360M | 360 | 450 | 396 | 495 | KTA19-DM | 403/1500 | 3170*1000*1905 | 3800 |
GNRC400M | 400 | 500 | 440 | 550 | KTA19-DM | 448/1500 | 3170*1000*1905 | 3950 |
Engine Features:
1. Genuine Marine diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Digital Control panel
Controller Brand: Smartgen
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
