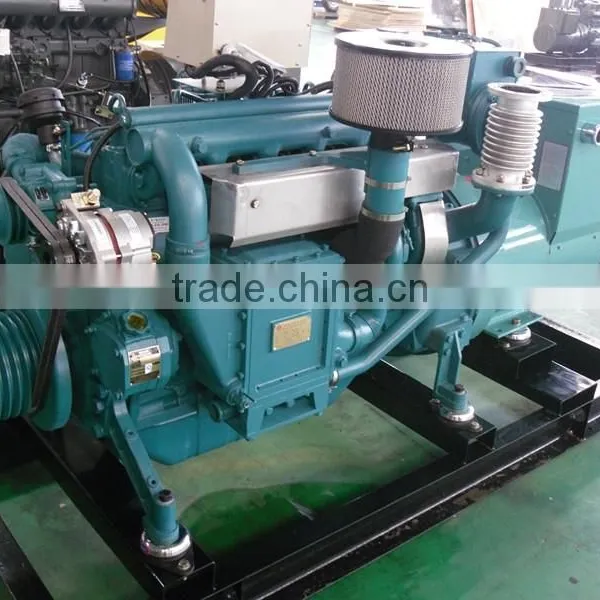

Diesel Generator Deutz Marine
marine diesel generator:
1) Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships and other projects.
2) Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc
3) Compact, high power per liter;
4) Full range protection function and alarm shutdown feature.
5) Bronze gear-type sea water pump;
Marine Diesel Generator Set |
Weichai Deutz 226B Series Diesel Engine |
Dimensions |
||||
(400/230V/120C, 50Hz/60Hz, 3 P 4W) |
(Electrical Starting, Dual-circulate water-cool) |
|||||
Genset Model |
Rated
|
Engine Model |
Max* |
Rated Speed |
Governing Method |
(L*W*D) |
(KW) |
Deutz |
(KW) |
(rpm) |
(mm) |
||
GNRDM-12 |
12 |
D226B-3C |
22 |
1500 |
Mechanical |
1385*580*1159 |
GNRDM-16 |
16 |
D226B-3C |
22 |
1500 |
Mechanical |
1415*600*1181 |
GNRDM-20 |
20 |
D226B-3CD |
30 |
1500 |
Mechanical |
1455*620*1200 |
GNRDM-24 |
24 |
D226B-3CD |
33 |
1500 |
Mechanical |
1488*620*1231 |
GNRDM-30 |
30 |
TD226B-3CD |
44 |
1500 |
Mechanical |
1488*620*1231 |
GNRDM-40 |
40 |
TD226B-4CD |
66 |
1500 |
Mechanical |
1774*620*1431 |
GNRDM-50 |
50 |
TD226B-4CD |
66 |
1500 |
Mechanical |
1774*620*1431 |
GNRDM-64 |
64 |
TD226B-6CD |
99 |
1500 |
Mechanical |
2091*798*1336 |
GNRDM-75 |
75 |
TD226B-6CD |
99 |
1500 |
Mechanical |
2091*798*1336 |
GNRDM-90 |
90 |
TBD226B-6CD |
132 |
1500 |
Mechanical |
2207*798*1336 |
GNRDM-100 |
100 |
TBD226B-6CD |
132 |
1500 |
Mechanical |
2207*798*1336 |
GNRDM-120 |
120 |
TBD226B-6CD5 |
145 |
1500 |
Electrical |
2256*798*1336 |
Protective function of operation
1) Low oil pressure alarm and shutdown
2) High temperature alarm and shutdown
3) Over speed alarm and shutdown
Standard Configure of marine diesel dc generator:
| 1) High Performance Marine Engine | 6) MCCB, Muffler, Air filter |
| 2) Brushless Stamford Alternator (IP23) | 7) 2*12V Heavy duty start batteries |
| 3) Steel base frame with shock absorber | 8) Battery cable & Atteched accessories |
| 4) Standard control box | 9) Manual books and parts books |
| 5) Sea-water heat exchanger | 10) Optional digital monitor |
