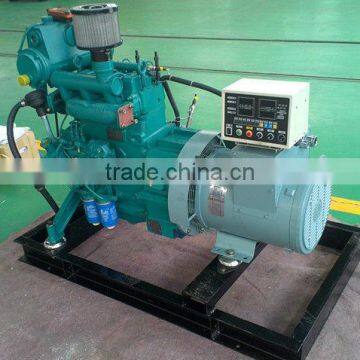

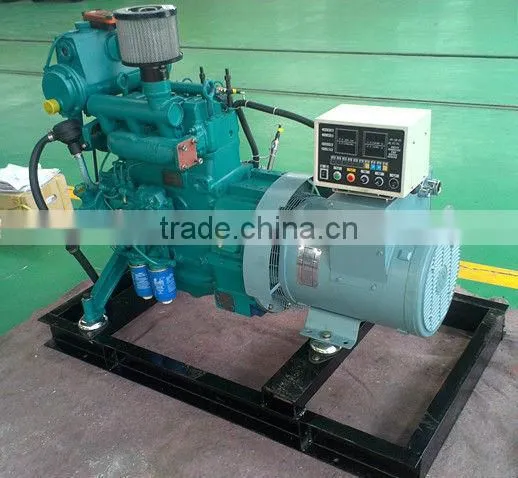

15kva to 300kva Generator Diesel Marine Engine
marine diesel generator:
1) Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships and other projects.
2) Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc
3) Compact, high power per liter;
4) Full range protection function and alarm shutdown feature.
5) Bronze gear-type sea water pump;
Marine Diesel Generator Set |
Weichai Deutz 226B Series Diesel Engine |
Dimensions |
||||
(400/230V/120C, 50Hz/60Hz, 3 P 4W) |
(Electrical Starting, Dual-circulate water-cool) |
|||||
Genset Model |
Rated
|
Engine Model |
Max* |
Rated Speed |
Governing Method |
(L*W*D) |
(KW) |
Deutz |
(KW) |
(rpm) |
(mm) |
||
GNRDM-12 |
12 |
D226B-3C |
22 |
1500 |
Mechanical |
1385*580*1159 |
GNRDM-16 |
16 |
D226B-3C |
22 |
1500 |
Mechanical |
1415*600*1181 |
GNRDM-20 |
20 |
D226B-3CD |
30 |
1500 |
Mechanical |
1455*620*1200 |
GNRDM-24 |
24 |
D226B-3CD |
33 |
1500 |
Mechanical |
1488*620*1231 |
GNRDM-30 |
30 |
TD226B-3CD |
44 |
1500 |
Mechanical |
1488*620*1231 |
GNRDM-40 |
40 |
TD226B-4CD |
66 |
1500 |
Mechanical |
1774*620*1431 |
GNRDM-50 |
50 |
TD226B-4CD |
66 |
1500 |
Mechanical |
1774*620*1431 |
GNRDM-64 |
64 |
TD226B-6CD |
99 |
1500 |
Mechanical |
2091*798*1336 |
GNRDM-75 |
75 |
TD226B-6CD |
99 |
1500 |
Mechanical |
2091*798*1336 |
GNRDM-90 |
90 |
TBD226B-6CD |
132 |
1500 |
Mechanical |
2207*798*1336 |
GNRDM-100 |
100 |
TBD226B-6CD |
132 |
1500 |
Mechanical |
2207*798*1336 |
GNRDM-120 |
120 |
TBD226B-6CD5 |
145 |
1500 |
Electrical |
2256*798*1336 |
Protective function of operation
1) Low oil pressure alarm and shutdown
2) High temperature alarm and shutdown
3) Over speed alarm and shutdown
Standard Configure of marine diesel dc generator:
| 1) High Performance Marine Engine | 6) MCCB, Muffler, Air filter |
| 2) Brushless Stamford Alternator (IP23) | 7) 2*12V Heavy duty start batteries |
| 3) Steel base frame with shock absorber | 8) Battery cable & Atteched accessories |
| 4) Standard control box | 9) Manual books and parts books |
| 5) Sea-water heat exchanger | 10) Optional digital monitor |
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
