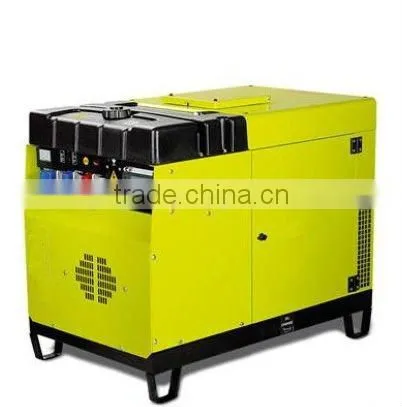

Kubota generator brushless electric motor 10kw

Specifications

brushless electric motor 10kw
1) Kubota OEM manufacturer
2) Stamford alternator
3) Constant & Reliable
4) 1year warranty



 Kubota  generator  widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.



Genset Model	Prime Power (kva)	Engine Model	Cynlinder No.	Bore x Stroke	Displace -ment	Compression Ratio	Packing (mm) (L x W x H)
GNR-K10	10	V1505-E2BG-CHN-1	4	78 x 78.4	1.498	24:1	2000 x 960 x 1100
GNR-K13	12.5	D1703-E2BG-CHN-1	3	87 x 92.4	1.647	23:1	2000 x 960 x 1100
GNR-K18	17.5	V2203-E2BG-CHN-1	4	87 x 92.4	2.197	23:1	2000 x 960 x 1100
GNR-K20	20	V2003-T-E2BG-CHN-1	4	83 x 92.4	1.999	23:1	2000 x 960 x 1100
GNR-K28	27.5	V3300-E2BG2-CHN-1	4	98 x 110	3.318	22.6:1	2300 x 1100 x1300
GNR-K35	35	V3300-T-E2BG2-CHN-1	4	98 x 110	3.318	21.8:1	2300 x 1100 x1300



Engine Features:

1. World most famous brand diesel engine: Kubota

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate:≤±1%



Control system:

1.  Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.

2. Operation display:

   a) Unit voltage, tri-phase load current and frequency display

   b) Water temperature, oil pressure display

   c) Fuel level, fuel temperature display

   d) Audible and visual alarm lamps and buzzers



Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Four hours testing before out factory

5. ISO9001 and CE certification



Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
