380v 10kw Generator Diesel Engine Kubota1) Kubota Diesel Generator
2) Rated Voltage :380v
3) Prime Power :10kw
4) CE

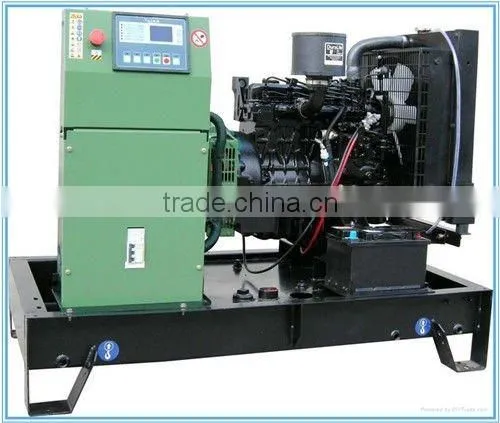

380v 10kw Generator Diesel Engine Kubota
Kubota generator widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.
Generator set
| Genset Model | GNRK10 |
| Prime Power | 10/ 12.5(KW / KVA) |
| Standby Power | 11 / 14(KW / KVA) |
| Frequency (HZ) | 50 |
| Voltage (V) | 127v/220v, 220v/380v,230v/400v, etc. |
| Power Factor | 0.8 |
| Phase | 3 |
Kubota Engine
| Engine Model | V1505-E2BG |
| Number of Cylinders | 4 |
| Cylinder arrangement | Vertical in line |
| Cycle | 4 Stroke |
| Aspiration | Naturally Aspiration |
| Bore x Stroke | 78 X 78.4 (mm x mm) |
| Displacement (L) | 1.498 |
| Compression ratio | 22 : 1 |
| Prime Power/Speed | 13.7 / 1500(KW / rpm) |
| Standby Power/Speed | 15.4/ 1500(KW / rpm) |
| Speed Governor | Electrical |
| Cooling System | Water-cooled, 40°C Radiator |
| lubrication capacity | 22(L) |
| Coolant capacity | 6.0(L) |
Original Stamford Alternator:
| Alternator Brand | Original Stamford |
| Alternator Model | PI044F |
| Prime Power | 10KW / 12.5KVA |
| Rated Current (A) | 32.8,19.0,18.0,etc. |
| Rated Voltage | 127V/220V,220V/380V, 230V/400V,etc |
| Frequency | 50HZ 1500rpm |
| Power Factor(COS) | 0.8 |
| Phase / Connection | 3-phase 4-wire , Y type connection |
| Excitation | Brushless, Self-excited |
|
Insulation Class: H . Protection Grade : IP23. | |
| Voltage Regulation | AVR |
options: Leroy Somer, Marathon, Engga
Soundproof/Silent Box:
1 Cold steel materials of the canopy. & Best powder paint.
2 Stainless steel locks and hinges.
3 Fireproof, waterproof and dustproof.
4 Good ventilation system and anti-heat radiation struction.
5 Effective anti-vibration devices to ensure the generator set run steadily.
6 High quality soundproof materials could efficiently reduce noise.
(lower than 68 dB at 7 meters away)
7 Emergency stop button mounted outside.
8 Side lockable door easy for maintenance and installation.
9 Lube oil and cooling water drains piped to exterior of the canopy.
10 Access to all weather conditions.
Control Plane
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory
5. ISO9001 and CE certification
OEM Certificate
Kubota 10kw Generator Set
