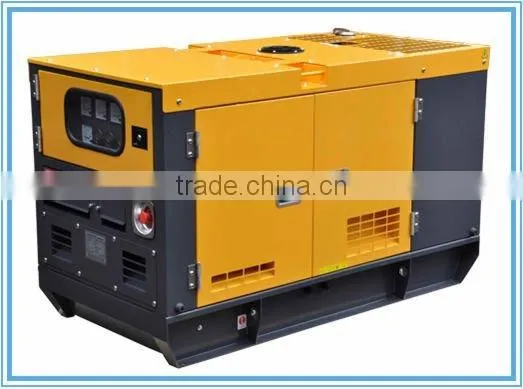

Japan Brand ! 6kw to 15kw Yanmar Best Generator Home Use

Specifications

Best Generator Home Use
1)Japan Brand Engine
2)ISO9001:2000, CE
3)High performance
4)Factory price

Japan Brand ! 6kw to 15kw Yanmar Best Generator Home Use







Specification:

1) DIESEL ENGINE

Model: Yanmar

Power Range:7kw to 45kw

Type: 4 strokes, water cooled, direct injection

Engine speed: 1500rpm/ 1800rpm

Starting system: Electric start



2)ALTERNATOR



Model: Stamford/ Leroysomer/ ENNGA, ect.

Frequency: 50 hz/ 60hz

Phase: Single phase or three phase

Excitation: Brushless

Insulation class: H



3)Controller system



1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.

2.It can be with ATS electric control cabinet, including circuit breaker,  LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…



4)Our Advantages:



a)Solve your technical problems in 24 hours and provide international warranty service for engines

b) Design the appearance form according to customers’ request

c) Polyester varnish for appearance protecting for shining and raining

d)Two hours testing before out factory

e)ISO9001 and CE certification



Genset Model	Prime Power		Standby Power		Engine Model	NO. of Cylinders	Dimension (mm)	Net Weight
	KW	KVA	KW	KVA			L x W x H	(kg)
GNR7YM	7	8.8	7.7	9.6	3TNV76	3	1580*810*930	300
GNR8.5YM	8.5	11	9.4	12	3TNV82A	3	1580*810*930	320
GNR10YM	10	13	11	14	3TNV88	3	1580*810*930	359
GNR12YM	12	15	13	17	3TNV84T	3	1580*810*930	422
GNR16YM	16	20	18	22	4TNV84T	4	1580*810*990	467
GNR25YM	25	31	28	34	4TNV98	4	1580*810*990	467
GNR32YM	32	40	35	44	4TNV98T	4	1580*810*1165	667
GNR40YM	40	50	44	55	4TNV106	4	1580*810*1165	730
GNR45YM	45	56	50	62	4TNV106T	4	1580*810*1165	730

.
