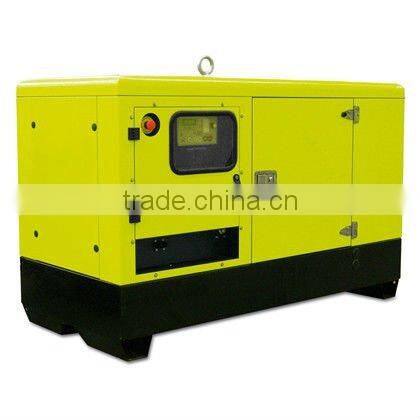

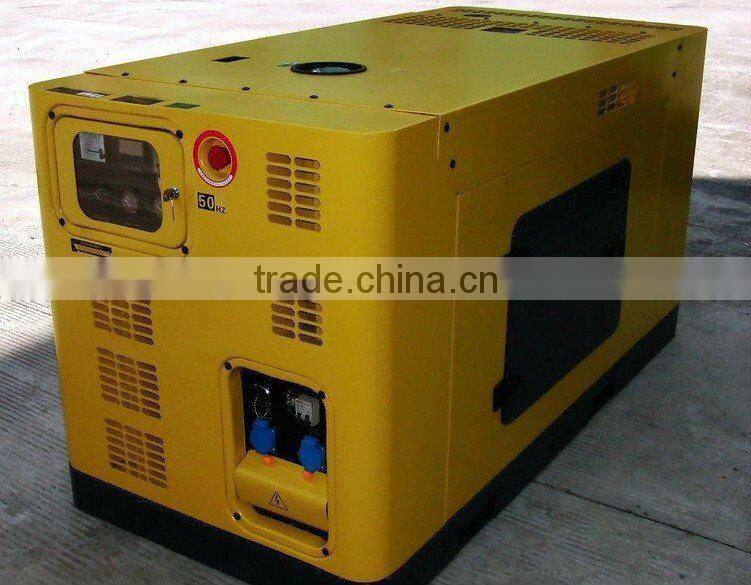

Help CenterNew Style ! Yanmar Small Silent Diesel Generator
Related Products
-
High Quality ! Electric Generator With Yanmar EngineUS$ 3,999 - 20,000MOQ: 1 Set -
Silent Yanmar Diesel Generator Set 5KWUS$ 3,999 - 20,000MOQ: 1 Set
-
Japan Brand ! Yanmar Diesel Geset 5 KvaUS$ 3,999 - 20,000MOQ: 1 Set
-
China Engine Water Cooled 5kw Silent Generator PriceUS$ 2,936 - 3,218MOQ: 1 Set
-
Japan Brand ! 5kva Silent Diesel Generator PriceUS$ 3,999 - 20,000MOQ: 1 Set
Specifications
Small Silent Diesel Generators1.Yanmar Engine
2 Silent & Portable
3.ISO9001:2000, CE
4.High performance
Small Silent Diesel Generator
Specification:
1) DIESEL ENGINE
Model: Yanmar
Power Range:7kw to 45kw
Type: 4 strokes, air cooled, direct injection
Engine speed: 1500rpm/ 1800rpm
Starting system: Electric start
2)ALTERNATOR
Model: Stamford/ Leroysomer/ ENNGA, ect.
Frequency: 50 hz/ 60hz
Phase: Single phase or three phase
Excitation: Brushless
Insulation class: H
3)Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.
2.It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…
4)Our Advantages:
a)Solve your technical problems in 24 hours and provide international warranty service for engines
b) Design the appearance form according to customers’ request
c) Polyester varnish for appearance protecting for shining and raining
d)Two hours testing before out factory
e)ISO9001 and CE certification
Specification of samll silent diesel generator
| Genset Model | Prime Power | Standby Power | Engine Model | NO. of Cylinders | Dimension (mm) | Net Weight | ||
| KW | KVA | KW | KVA | L x W x H | (kg) | |||
| GNR7YM | 7 | 8.8 | 7.7 | 9.6 | 3TNV76 | 3 | 1580*810*930 | 300 |
| GNR8.5YM | 8.5 | 11 | 9.4 | 12 | 3TNV82A | 3 | 1580*810*930 | 320 |
| GNR10YM | 10 | 13 | 11 | 14 | 3TNV88 | 3 | 1580*810*930 | 359 |
| GNR12YM | 12 | 15 | 13 | 17 | 3TNV84T | 3 | 1580*810*930 | 422 |
| GNR16YM | 16 | 20 | 18 | 22 | 4TNV84T | 4 | 1580*810*990 | 467 |
| GNR25YM | 25 | 31 | 28 | 34 | 4TNV98 | 4 | 1580*810*990 | 467 |
| GNR32YM | 32 | 40 | 35 | 44 | 4TNV98T | 4 | 1580*810*1165 | 667 |
| GNR40YM | 40 | 50 | 44 | 55 | 4TNV106 | 4 | 1580*810*1165 | 730 |
| GNR45YM | 45 | 56 | 50 | 62 | 4TNV106T | 4 | 1580*810*1165 | 730 |
