Help Center6kw to 8kw Yanmar Diesel Generator Set for Sale
Related Products
-
Japan Yanmar Generator ManualUS$ 3,999 - 20,000MOQ: 1 Set -
Japan Yanmar Diesel Generator 7kw to 45kwUS$ 3,999 - 20,000MOQ: 1 Set
-
Yanmar 10kw Diesel GeneratorUS$ 3,999 - 18,989MOQ: 1 Set
-
Super Silent ! 15 Kva Yanmar GeneratorUS$ 3,999 - 20,000MOQ: 1 Set
-
With Japan Yanmar Silent Generator 10kvaUS$ 4,999 - 6,589MOQ: 1 Set
Specifications
diesel generator set1)Yanmar engine
2)diesel generator
3)generator set
3) ISO9001:2008, CE
is forever
12years experiences in manufacturing generator set.
Yanmar diesel generator set install original Yanmar diesel engine from Japan,
with Stamford or Marathon alternator and Auto-start controller.
Specification of diesel generator set
| Genset Model | Prime Power | Standby Power | Engine Model | NO. of Cylinders | Dimension (mm) | Net Weight | ||
| KW | KVA | KW | KVA | L x W x H | (kg) | |||
| GNR7YM | 7 | 8.8 | 7.7 | 9.6 | 3TNV76 | 3 | 1580*810*930 | 300 |
| GNR8.5YM | 8.5 | 11 | 9.4 | 12 | 3TNV82A | 3 | 1580*810*930 | 320 |
| GNR10YM | 10 | 13 | 11 | 14 | 3TNV88 | 3 | 1580*810*930 | 359 |
| GNR12YM | 12 | 15 | 13 | 17 | 3TNV84T | 3 | 1580*810*930 | 422 |
| GNR16YM | 16 | 20 | 18 | 22 | 4TNV84T | 4 | 1580*810*990 | 467 |
| GNR25YM | 25 | 31 | 28 | 34 | 4TNV98 | 4 | 1580*810*990 | 467 |
| GNR32YM | 32 | 40 | 35 | 44 | 4TNV98T | 4 | 1580*810*1165 | 667 |
| GNR40YM | 40 | 50 | 44 | 55 | 4TNV106 | 4 | 1580*810*1165 | 730 |
| GNR45YM | 45 | 56 | 50 | 62 | 4TNV106T | 4 | 1580*810*1165 | 730 |

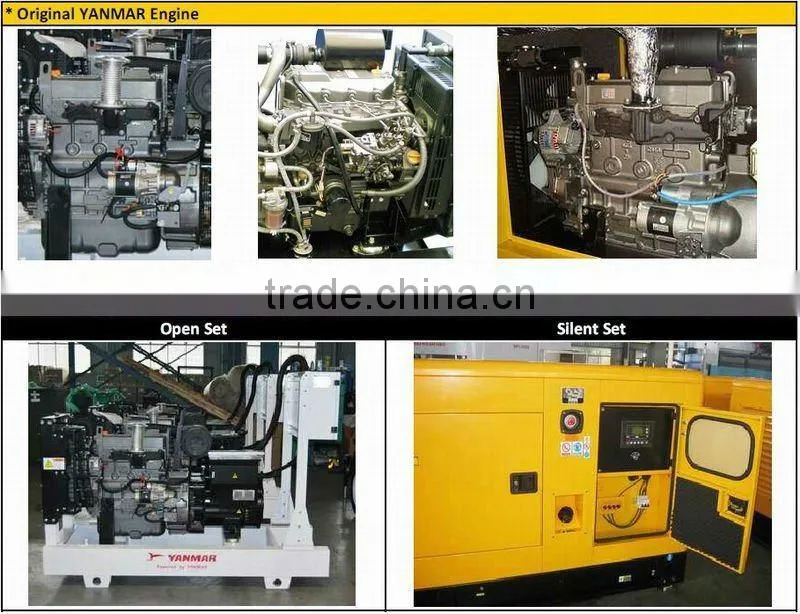

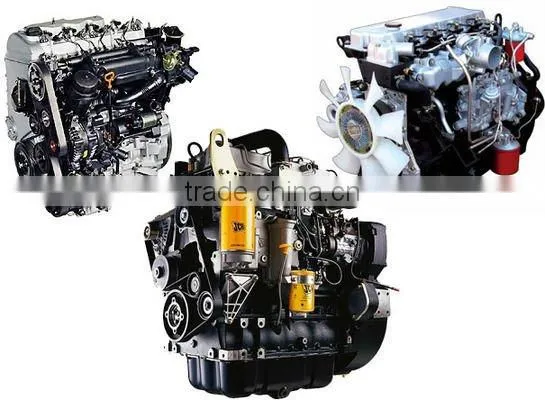

Diesel engine of generator set
a) World most famous brand diesel engine: Yanmar
b) Multi-cylinder in-line or veer engine, 4-stroke, direct injection
c) Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
d) Machinery or electronic governing
e) Fuel injection pump
f) Electric motor starting system
g) Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
h) Low discharge, and low fuel consumption
i) Installed conveniently and maintain easily
Alternator of generator set
a) alternator: Leroy Somer, Stamford, or Marathon etc.
b) Inspiration Method: Natural Aspirated or Turbocharged
c) Excitation Way: Brushless Excitation
d) Governor Method: Electrical or Mechanical Governor
e) Cylinder:3L~ 4L
f ) 3ph:star,delta
g) Rated power factor:0.8(lagged)
h) Standard 2/3 pitch windings
i) Voltage Regulation:± 0.5%
j) Exciter type:PRET or Shunt
k) Votagle regulator: AVR (Automatic Voltage regulator)
Control system of generator set
a)Manual/Automatic start & stop controller
b)Various Monitor Meter and Optional Switch
c)Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
d)MCCB for Short circuit & Overload (optional)
e)High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm
Our Advantages:
a)Solve your technical problems in 24 hours and provide international warranty service for engines
b) Design the appearance form according to customers’ request
c) Polyester varnish for appearance protecting for shining and raining
d)Two hours testing before out factory
e)ISO9001 and CE certification
Warranty policy
We make the promise that we offer life-time and free technological support and problem solutions
Genor Power will also provide spare parts and technology for free in warranty, which for troubles caused by the shortness and defect of design and manufacture of gensets.
Even some failures happen because of failure operation or after applicable expiration date, we also try our best to offer service.
