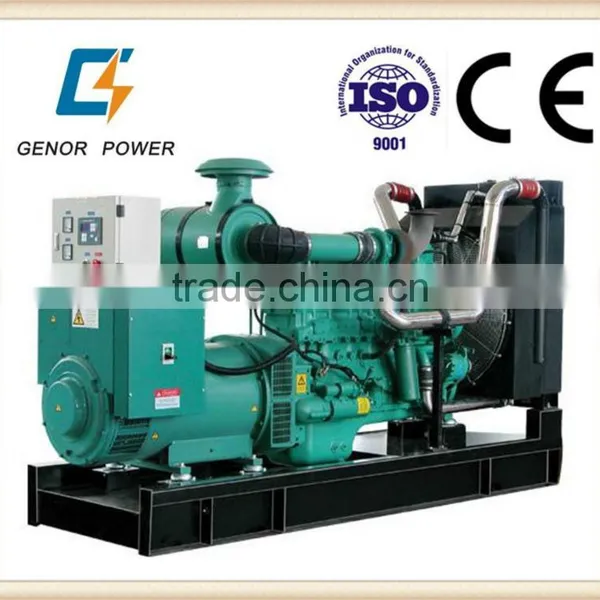

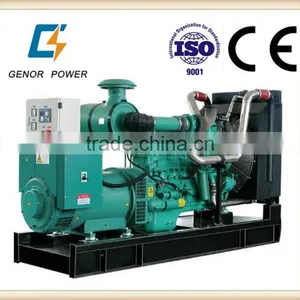

35kw to 1300kw Power Diesel Turbine Generator With Cummins Engine

  35kw to 1300kw Power Diesel Turbine Generator With Cummins Engine

Introduction:
1)This series diesel generator set choose famous brand Diesel Engine as the dynamic force:

Cummins,

2)The engine has the feature of good power performance,safety,low fuel consumption and good reliability.
3)Our generator sets are widely used as prime or standby power supply in building,bank,supermarket,industrial,factory,fieldwork,oil field,highway and so on.

The specification:

Type:open/soundproof/weatherproof/trailer/container type

Rated voltage:220/380V,230/400V,240/415V,120/240V
output type:AC three phase/single phase
Alternator:brushless

The specification of the engine:

The specification of alternator:

The above generating set's Control Panel:

1. Key switch control panel

Shock resist is fitted between control panel and generator set. Loose sheet is also fitted. The equipments of

control panel are Meters with Voltmeter,Ammeter,Frequency list,Water thermometer,Oil pressure gauge,Hour meter.

2. Control parts:

Start/stop key switch, start button, emergency stop button, voltage regulation

resistance, speed regulation resistance. Voltage phase switch ,Electric current phase selecting switch.

3.  Protection setting for engine

For emergency shut down, overfeed, high water temperature, low oil pressure. ATS switch is optional components

When some accidents appear, The digital Protector can shut down immediately, giving the battery voltage alarm and

DC electrical source alarm. European extremity, steady wiring, and it can easily dismantle and install.

Standard configuration of  generator:
1) Starting system: DC alternator is used to start engine
2) Short circuit protection: MCCB air switch
3) Cooling system: combined cooling water tank fitted to meet the requirement
of radiation at ambient temperature 40°C
4) Filter system: oil, fuel and air filter
5) Accessories: exhaust elbow, bellow, muffler

6) 8hous fuel tank

7) Governor system: electrical or mechanical governor
