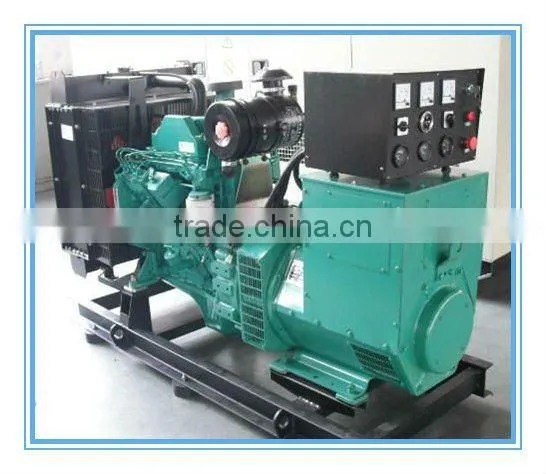

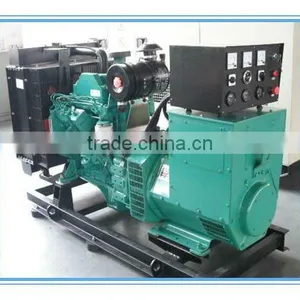

Factory Price ! Power Bank 30 Kva Generator With Cummins Engine
US$ 1,255 - 5,899
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GENOR POWER
Model Number:
GNRC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fujian Water Cooled Power Diesel Generator Set Price Of 50kvaUS$ 4,659 - 6,895MOQ: 1 Set -
Water Cooled 55kw to 560kw AC Power Electric Generator ManufacturersUS$ 5,485 - 112,695MOQ: 1 Set
-
World Leading ! Diesel Engine Drives Electric Multifuel GeneratorUS$ 3,215 - 145,959MOQ: 1 Set
-
World Leading ! Auto Start Engine Drives Electric Chongqing Diesel GeneratorNegotiableMOQ: 1 Set
-
Diesel Engine Power Buy Generator With Competitive PriceUS$ 3,999 - 25,590MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
GENOR POWER
Model Number
GNRC
Output Type
AC Three Phase
Speed
1500rpm or 1800rpm
Frequency
50Hz or 60Hz
Rated Power
30kva
Rated Voltage
220V/380V, 230V/400V, 240V/415V
Rated Current
43A
Factory Price ! Power Bank 30 kva Generator with Cummins Engine
generator data
| Genset Model | GNRC30 | ||
| Rated Output | 24Kw/30Kva | ||
| Standby Output | 26.4Kw/33Kva | ||
| Voltage | 220V/380V 230V/400V | ||
| Frequency | 50Hz/60Hz | ||
| Speed | 1500rpm/1800rpm | ||
| Type | 3phase 4wire | ||
| Protect Class | IP23 | ||
| Starting system | Electric starting | ||
Engine data
| Diesel engine Model | 4B3.9-G1 | ||||
| Engine Speed | 1500rpm | ||||
| Prime Power | 24Kw | ||||
| Stamdby Power | 27Kw | ||||
| Air intake way | Natural | ||||
| Cylinder No. | 4 | ||||
| Bore*Stroke | 102*120mm | ||||
| Diesplacement(L) | 3.9 | ||||
| Compression Ratio | 16.5:1 | ||||
| Governor | Machanical | ||||
| Fuel Consumption | 223g/kw.h | ||||
| Cooling Way | Water-Cooled | ||||
| Starting System | Electric Starting |
Alternator: Stamford
Option with: Marathon, Lorysomer, Engga, Kaijieli
a) three phase brushless generator, self-excited, 4-pole, single bearing
b) AVR self-regulated, voltage regulation rate ≤± 1%
c) IP23 protection grade
d) Class H insulation
e) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
f) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof
Control Panel
It includes the following:
1. automatic cutter which is suitable for the generator power.
2. Turn on key.
3. A device to measure the generators speed.
4. Counter for measuring the Operating hours.
5. Device to measure the current overload with a switched current.
6. A device to measure the battery voltage.
7. Voltmeter with a voltage exchanger.
8. A device to measure the frequency.
9. Thermostat to regulate the voltage.
10. A device to measure the oil pressure.
11. Alerting lamps indicating low and high temperature.
12. Controller of the current increase and short circuit.
13. Emergency stop button.
1. automatic cutter which is suitable for the generator power.
2. Turn on key.
3. A device to measure the generators speed.
4. Counter for measuring the Operating hours.
5. Device to measure the current overload with a switched current.
6. A device to measure the battery voltage.
7. Voltmeter with a voltage exchanger.
8. A device to measure the frequency.
9. Thermostat to regulate the voltage.
10. A device to measure the oil pressure.
11. Alerting lamps indicating low and high temperature.
12. Controller of the current increase and short circuit.
13. Emergency stop button.
Optional Brand: Smartgen,Deapsea,Comap
It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc
30kva Generator Protections
1.Low oil pressure 2.Over temp 3.Over/low speed 4.Charger failure 5.Over crank Stop failure
6.Low/high charger 7. voltage Emergency 8.Common alarm Generating failure
Standard Supply Scope
| Exhaust silencer | Flexi pipes | AVR | Base frame |
| Starting battery | Battery wires | Battery charger | Main circuit breaker |
| Cooling radiator | Wire diagram | Manual books | Auto control panel |
Optional Supply Scopy
| Water preheater | PMG | ATS | External daily fuel tank | Silent canopy | ||
| Lube oil preheater | Spare parts | Parallel droop | Anti-condensation heater | ABB breaker | ||
| Automatic fuel pump | Oil drain pump | Mobile trailer | Weatherproof canopy | Synchronization panel | ||
Quality Assurance
Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset shall be put into commission more than 4 hours totally.
They are tested on idle load, fully load and 10% overload
2. The noise level is tested
3. All of the meters on the control panel shall be tested
4. The appearance of the genset and all of the label and nameplate shall be checked
Warranty
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period,and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; after the
warranty period, we can supply the required spare parts for you under cost prices
