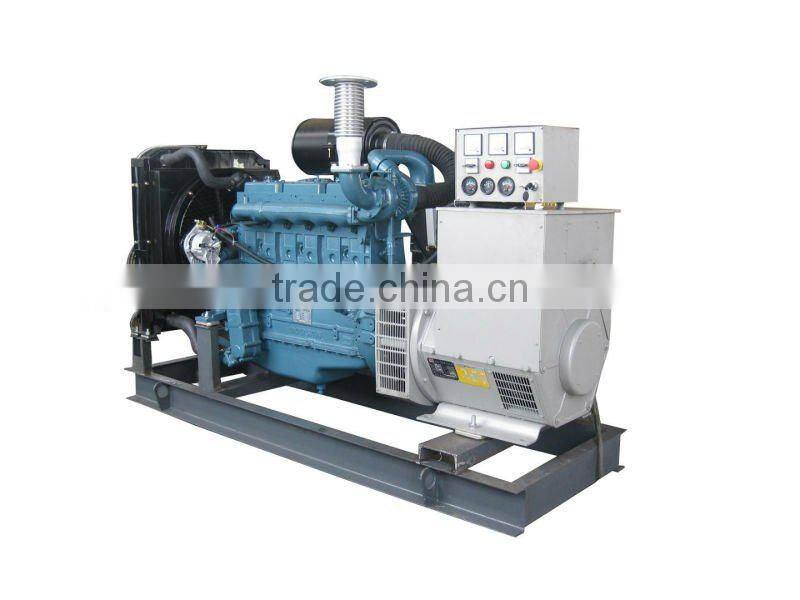

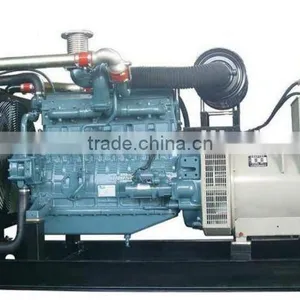

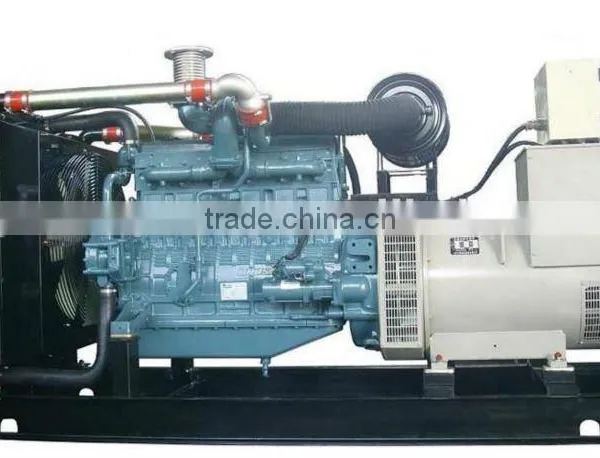

Help CenterStable Performance ! 360KW Doosan Engine Power Generator
Related Products
-
High-Tech!! Auto Start Doosan Backup Diesel GeneratorUS$ 8,565 - 54,559MOQ: 1 Set -
80kva to 625kva Backup Emergency Power GeneratorUS$ 6,549 - 65,985MOQ: 1 Set
-
Silent Doosan Automatic Backup Power Generator 500kwUS$ 36,549 - 51,459MOQ: 1 Set
-
Korea Doosan Daewoo Generator P222LE 480KWNegotiableMOQ: 1 Set
-
Three Phase Supermarket Korea Doosan Electric Power Plants for SaleNegotiableMOQ: 1 Set
Specifications
Doosan Diesel Generator-OEM Daewoo
-Increase efficiency 15%
-10 hours operation base tank
-Warranty:1 year
The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.
| Genset Model | GNR412DS |
| Prime Power | 330/ 412(KW / KVA) |
| Standby Power | 360 /450 (KW / KVA) |
| Frequency (HZ) | 50 |
| Voltage (V) | 127v/220v, 220v/380v ,230v/400v,etc. |
| Power Factor | 0.8 |
| Phase | 3 |
Doosan Engine
| Engine Model | P158LE |
| Number of Cylinders | V8 |
| Cylinder arrangement | Vertical in line |
| Cycle | 4 Stroke |
| Aspiration | Turbocharged and air air after-cooled |
| Bore x Stroke | 128 X 142 (mm x mm) |
| Displacement (L) | 14.618 |
| Compression ratio | 15 : 1 |
| Prime Power/Speed | 363 / 1500(KW / rpm) |
| Standby Power/Speed | 414/ 1500(KW / rpm) |
| Speed Governor | Electrical |
| Cooling System | Water-cooled, 40°C Radiator |
| lubrication capacity | 28(L) |
| Coolant capacity | 20(L) |
Original Stamford Alternator:
|
Control Plane
1. Controller Brand: Smartgen, Deepsea,ComAp
2. Control Panel: English interface,LED screen and touch buttons.
Main Functions:
a- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
b- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
c- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB Inspection
5. ISO9001 and CE certification
