Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Korea Doosan Heavy Duty Generator

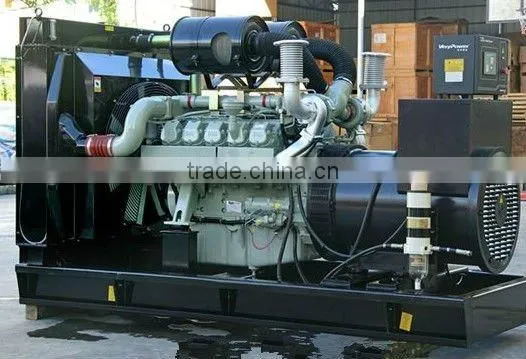

Korea Doosan Heavy Duty Generator

Name: Korea Doosan Heavy Duty Generator
Brand: DOOSAN
SKU: 140638174
Availability: InStock

Shenzhen Genor Power Equipment Co., Ltd.

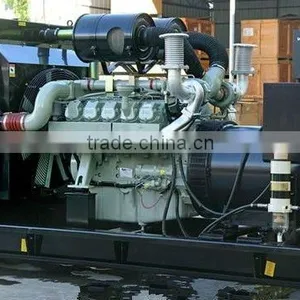

Korea Doosan Heavy Duty Generator thumbnail-1

Korea Doosan Heavy Duty Generator photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DOOSAN

Model Number:

GNRDS

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DOOSAN

Model Number GNRDS

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 50KW to 500KW

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 90A to 900A

Specifications

-OEM DOOSAN
-Low oil fuel consumption.
-high performance
-1000hr maintenance

The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.

Technical parameters of diesel generator sets:

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNR70DS	50	62.5	55	70	DB58	≤216	6	8	102*118
GNR94DS	72	90	80	94	D1146	≤216	6	8	111*139
GNR138DS	100	125	110	138	D1146T	≤216	6	8	111*139
GNR200DS	140	175	160	200	D086TI-1	≤216	6	8	111*139
GNR225DS	160	200	180	225	P086TI	≤216	6	8	111*139
GNR275DS	200	250	220	275	P126T1	≤216	8	8	123*155
GNR310DS	220	275	250	310	P126TI	≤216	6	11	123*155
GNR350DS	250	310	280	350	P126T11	≤215	6L	11	128*142
GNR413DS	300	375	330	413	P158LE-1	≤213	V8	14.6	128*142
GNR450DS	320	410	360	450	P158LE	≤212	V8	14.6	128*142
GNR500DS	360	450	400	500	P158LE	≤212	V10	18.3	128*142
GNR550DS	400	500	440	550	P180LE	≤212	V10	18.3	128*142
GNR625DS	450	560	500	625	P222LE-I	≤211	V12	21.9	128*142
GNR700DS	500	625	560	700	P222LE-S	≤211	V12	21.9	128*142

Specifications:

Genset

1. Output range:50KW-500KW

2. Available Engine: Doosan(Daewoo)

3. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank and fanair cooling

4. Key start / auto start

5. Monitoring meters and control switches

6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure

Alternator:

1. Brushless, 4 poles, rotation magnet

2. IP21-23(NEMA1) enclose is standard for all industrial alternators

3. H class insulation system

4. AVR self-regulated, voltage regulation rate: ≤±1%

5. Wide range of flange adaptors and single bearing disc coupling

6. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

7. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control Panel:

1. Automatic control panel(AMF), LCD display

2. Four protection systems

3. Emergency stop

Standard scope of supply:

1. Diesel engine(with all standard accessories, filters and electric system)

2. Radiator (with water tank and fan)

3. Alternator

4. Control panel

5. Steel base frame

6. All above parts are assembled into a whole.

Optional equipments:

1. Auxiliary device for starting at low temperature

2. ATS (Automatic transfer switch)

3. Genset combined Device

4. Water forewarmer

5. Moisture eliminator of alternator

6. Various kind of monitoring system

7. Remote monitoring system

8.Fuel tank for daily use or base frame fuel tank.

Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
