Specifications
Diesel Air Cooled Genset1.Deutz Air Cooling Engine
2.High Performance
3.Low Fuel Consumption
4.ISO9001&CE

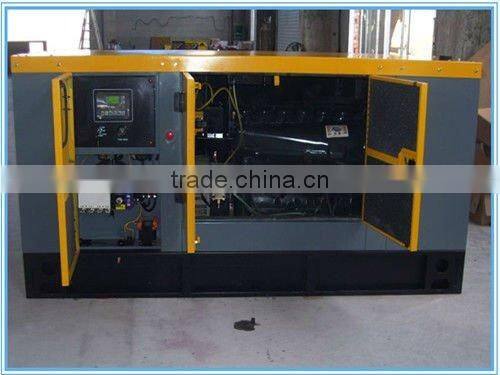

Factory Price ! Deutz Diesel Air Cooled Genset
The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRD18A | 12 | 15 | 14 | 18 | F2L912 | ≤238 | 2 | 1.88 | 100*120 |
| GNRD37A | 28 | 35 | 30 | 37 | F3L912 | ≤232 | 3 | 2.82 | 100*120 |
| GNRD41A | 31 | 39 | 33 | 41 | F3L913 | ≤228 | 3 | 3 | 100*125 |
| GNRD52A | 38 | 47 | 42 | 52 | F4L912T | ≤228 | 4 | 3.77 | 102*125 |
| GNRD55A | 40 | 50 | 44 | 55 | F4L913 | ≤228 | 4 | 4.08 | 100*120 |
| GNRD65A | 48 | 60 | 52 | 65 | F4L912T | ≤228 | 4 | 4.08 | 102*125 |
| GNRD75DA | 50 | 62 | 60 | 75 | BF4L912 | ≤221 | 4 | 4.08 | 102*125 |
| GNRD77A | 55 | 69 | 62 | 77 | F6L912 | ≤228 | 6 | 5.65 | 100*120 |
| GNRD85A | 64 | 80 | 68 | 85 | F6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD96A | 72 | 90 | 77 | 96 | F6L912T | ≤228 | 6 | 6.12 | 100*120 |
| GNRD102A | 78 | 97 | 82 | 102 | BF6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD144A | 105 | 131 | 115 | 144 | BF6L913C | ≤228 | 6 | 6.12 | 102*125 |
Air Cooling Diesel Generator Features:
1. Genuine Detuz diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Original Leroy Somer, Stamford, Marathon, or ENGGA alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards.
15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
General Technical Data
1. Frequency: 50 & 60Hz
2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc
4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank
5. Monitoring meters and control switches
6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure
Control Panel:
1. Manual/Automatic start & stop controller
2. Various Monitor Meter and Optional Switch
3. Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
4. MCCB for Short circuit & Overload (optional)
5. High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Air Cooling Silent Diesl Generator
Certificate
