Specifications
Deutz BF8M1015CP1.OEM Deutz & Stamford Alternator
2.Low Fuel Consumption
3.Two Years Warranty
4.ISO9001

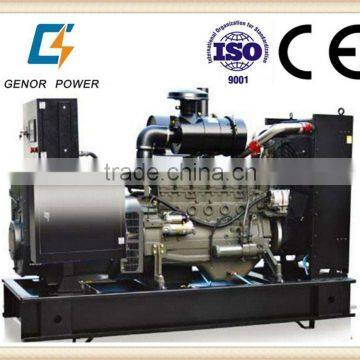

Deutz BF8M1015CP Engine Generator
Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability
Scope of Supply:
- Complete Deutz/BF8M1015CP-LAG5 diesel engine with radiator (100% copper core)
- Leroy Somer/ LSA47.2L9 with AVR
- HTP HT2000 Auto Start Control System
- Steel-fabricated base frame with anti-vibration mountings and daily fuel tank
- Main circuit breaker, Damper, Exhaust silencer ,Flexible pipe
- Battery and connecting wires
- Industrial type Muffler
- Operation/Maintenance manual and documents(Quality certificates, parts catalogue ,test report, wiring diagram)
Main Technical Parameter:
General Data:
- Advertised Voltage: 400/230V
- Prime Power: 480kW/600kVA
- Frequency: 50HZ Speed:1500rpm
- Power Factor: 0.8 (lagging)
- Protection Grade: IP23
- Model of Connection: 3 phase 4 wire
- Insulation Class: H
- Frequency Drop((%): <=5
- Transient State Frequency Deviation(%):(Advertised Power)+10-7
- Frequency Recovery Time(S):<=3
- Voltage Recovery Time(S):<=4
- Waveform Distortion(%):<=5
- Genset Overall Dimension: 3700*1570*2090 (L*W*H mm)
- Net weight: 4550Kgs
Diesel Engine:
- Model: BF8M1015CP-LAG5
- Brand: Deutz
- Engine type: 8-cylinder, V type, 4-stroke diesel engine
- Bore*Stroke: 132*145 mm
- Displacement: 15.87L
- 12hrs continuous Power:510kW
- Maximum power: 560kW
- Fuel consumption : 136.5L/ H at 100% load ; 102.4L/H at 75% load
- RPM: 1500
- Governor type: Electric
- Cooling method: Closed water cooling with radiator and fan
- Fuel type: 0# Light diesel
- Engine Oil type: SAE 15W40
- Starting system: 24V DC
- Type of battery : Lead acid type
- Steel fabricated base frame with anti-vibration mountings
- Standard exhaust muffler with elbow and connection pipes.
AC Alternator:
- Model:LSA47.2L9
- Brand: Leroy Somer
- Number of poles: 4
- Number of bearings: 1
- Excitation: Self excitated
- Type of regulation: Automatic Voltage Regulation
- Voltage accuracy: ±1% with any power factor and speed variations between -5% +30%
Control System:
HT2000 control system integrating digital, intelligent and network techniques is used for
automatic control of diesel generator set. It can carry out functions including automatic start/stop, data measure and alarming.
The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable.
HT2000 control system uses micro-processing technique which can carry out precision measure, constant value adjustment
timing and threshold setting and etc. of multi-parameters. It can be widely used in all types of generator automatic control
for compact structure, advanced circuits, simple connections and high reliability.
(Available with DeepSea, ComAp & Smartgen brand controller)
