Specifications
F2L912D Deutz Air Cooled Generators1.Deutz Air Cooled Engine:F2L912D
2)Stamford Alternator
3)Low Fuel Consumption
4)CE

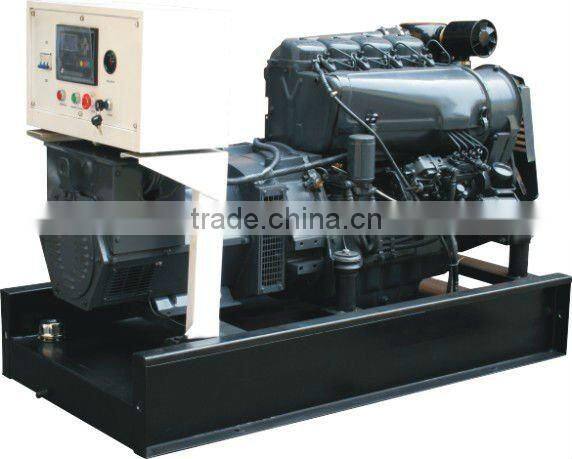

Top Quality ! F2L912D Deutz Air Cooled Generators
DEUTZ engine is one of the most famous engines in the world. It gains plenty of users’ trust with its advanced performance. It is four strokes water cooled industrial engine.
It is based on German technique, combined the outstanding feature of compact structure,big power, low fuel consumption, small size,light weight, high Reliability and durability, slight vibration,low noise, convenient using and easy maintenance. Its exhaust emission comes up to EURO 2,3 standards
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRD18A | 12 | 15 | 14 | 18 | F2L912 | ≤238 | 2 | 1.88 | 100*120 |
| GNRD37A | 28 | 35 | 30 | 37 | F3L912 | ≤232 | 3 | 2.82 | 100*120 |
| GNRD41A | 31 | 39 | 33 | 41 | F3L913 | ≤228 | 3 | 3 | 100*125 |
| GNRD52A | 38 | 47 | 42 | 52 | F4L912T | ≤228 | 4 | 3.77 | 102*125 |
| GNRD55A | 40 | 50 | 44 | 55 | F4L913 | ≤228 | 4 | 4.08 | 100*120 |
| GNRD65A | 48 | 60 | 52 | 65 | F4L912T | ≤228 | 4 | 4.08 | 102*125 |
| GNRD75DA | 50 | 62 | 60 | 75 | BF4L912 | ≤221 | 4 | 4.08 | 102*125 |
| GNRD77A | 55 | 69 | 62 | 77 | F6L912 | ≤228 | 6 | 5.65 | 100*120 |
| GNRD85A | 64 | 80 | 68 | 85 | F6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD96A | 72 | 90 | 77 | 96 | F6L912T | ≤228 | 6 | 6.12 | 100*120 |
| GNRD102A | 78 | 97 | 82 | 102 | BF6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD144A | 105 | 131 | 115 | 144 | BF6L913C | ≤228 | 6 | 6.12 | 102*125 |
diesel engine
Brand: Deutz diesel engine
Modle F2L912D
Multi-cylinder in-line or veer engine.4-stroke,direct injection
Naturally aspirated,turbocharged,air cooled
Machinery or electronic governing
Fuel injection pump
Electric motor starting system
Forged steel crankshaft,castiron cylinder and replaceable wet type cylinder linder
Low discharge and low fuel consumption
Alternator
Optional brand: Stamford, Leroy Somer, Marathon.Enggaetc.
Excitation Method: Brushless Self-excitation
Standard 2/3 pitch winding ,effectively inhibited 3 times and triple harmonicas
Insulation grade: H-level
Protection grade: IP21-IP23
Electromagnetic interference: THF<2%, TIF<50
Structural features: single bearing or double bearing ,SAE standard interface
control panel
automatic cutter which is suitable for the generator power.
Turn on key
A device to measure the generators speed
Counter for measuring the Operating hours
Device to measure the current overload with a switched current
A device to measure the battery voltage
Voltmeter with a voltage exchanger
A device to measure the frequency
Thermostat to regulate the voltage
A device to measure the oil pressure
Alerting lamps indicating low and high temperature
Controller of the current increase and short circuit
Emergency stop button
