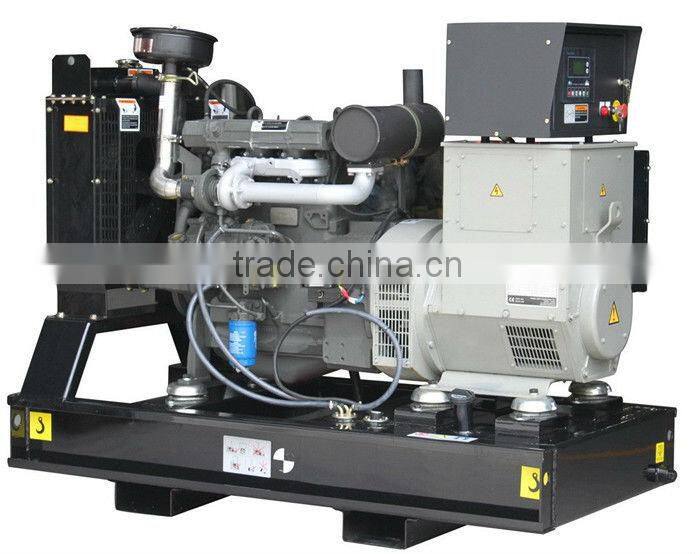

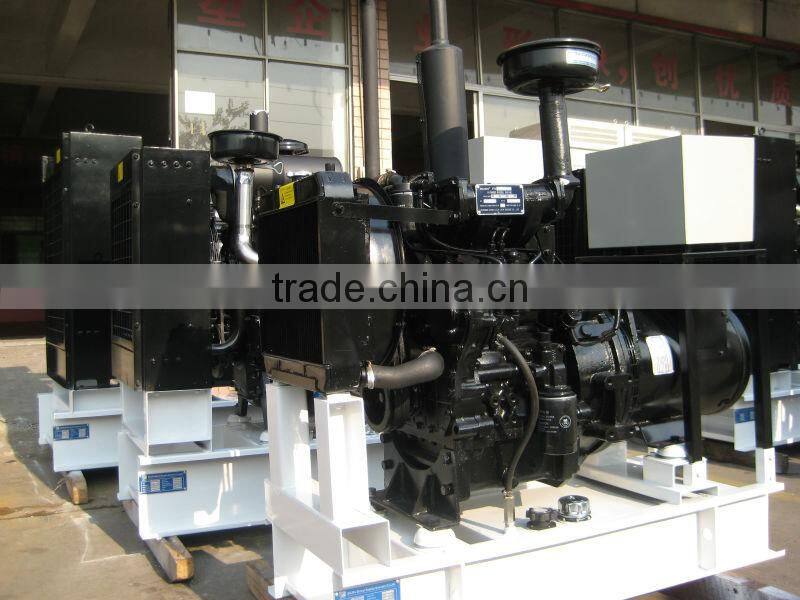

High performance ! Germany deutz engine disel generator
- 200 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Deutz | Model Number: | GNRD |
Output Type: | AC Three Phase | Speed: | 1500rpm or 1800rpm | Frequency: | 50Hz or 60Hz |
Rated Power: | 15KVA to 1000KVA | Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Rated Current: | 10A to 1800A |
Product Description
Specifications
1.Deutz diesel generator price2.high power
3.low fuel consumption
4.high reliability and durability
deutz engine disel generator
Genor Power Deutz series diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability .
Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
GNRD18A | 12 | 15 | 14 | 18 | F2L912 | ≤238 | 2 | 1.88 | 100*120 |
GNRD37A | 28 | 35 | 30 | 37 | F3L912 | ≤232 | 3 | 2.82 | 100*120 |
GNRD41A | 31 | 39 | 33 | 41 | F3L913 | ≤228 | 3 | 3 | 100*125 |
GNRD52A | 38 | 47 | 42 | 52 | F4L912T | ≤228 | 4 | 3.77 | 102*125 |
GNRD55A | 40 | 50 | 44 | 55 | F4L913 | ≤228 | 4 | 4.08 | 100*120 |
GNRD65A | 48 | 60 | 52 | 65 | F4L912T | ≤228 | 4 | 4.08 | 102*125 |
GNRD75DA | 50 | 62 | 60 | 75 | BF4L912 | ≤221 | 4 | 4.08 | 102*125 |
GNRD77A | 55 | 69 | 62 | 77 | F6L912 | ≤228 | 6 | 5.65 | 100*120 |
GNRD85A | 64 | 80 | 68 | 85 | F6L913 | ≤228 | 6 | 6.12 | 102*125 |
GNRD96A | 72 | 90 | 77 | 96 | F6L912T | ≤228 | 6 | 6.12 | 100*120 |
GNRD102A | 78 | 97 | 82 | 102 | BF6L913 | ≤228 | 6 | 6.12 | 102*125 |
GNRD144A | 105 | 131 | 115 | 144 | BF6L913C | ≤228 | 6 | 6.12 | 102*125 |
GNRD50 | 37 | 46 | 40 | 50 | D226B-3D | ≤215 | 3 | 3 | 105*120 |
GNRD70 | 51 | 64 | 56 | 70 | TD226B-3D | ≤215 | 3 | 3 | 105*120 |
GNRD95 | 69 | 86 | 76 | 95 | TD226B-4D | ≤215 | 4 | 4 | 105*120 |
GNRD150 | 100 | 125 | 120 | 150 | TD226B-6D | ≤215 | 6 | 6 | 105*120 |
GNRD185 | 135 | 169 | 148 | 185 | TBD226B6D | ≤215 | 6 | 6 | 105*120 |
GNRD200 | 150 | 188 | 165 | 200 | TBD234V6 | ≤210 | V6 | 10.8 | 128*140 |
Genset Features:
1. Genuine Detuz diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Original Leroy Somer, Stamford, Marathon, or ENGGA alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards.
General Technical Data
1. Frequency: 50 & 60Hz
2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc
4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank
5. Monitoring meters and control switches
6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure
Control Panel:
1. Manual/Automatic start & stop controller
2. Various Monitor Meter and Optional Switch
3. Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
4. MCCB for Short circuit & Overload (optional)
5. High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm
