Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Cheap Chinese 200kva Diesel Engine Power Generators for Sales

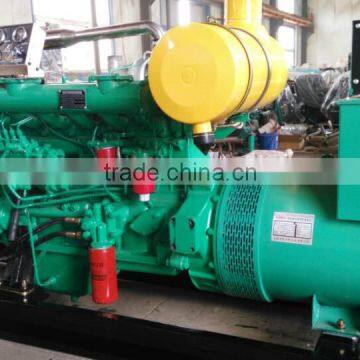

Cheap Chinese 200kva Diesel Engine Power Generators for Sales

Name: Cheap Chinese 200kva Diesel Engine Power Generators for Sales
Brand: China weichai
SKU: 140637708
Availability: InStock

Shenzhen Genor Power Equipment Co., Ltd.

Cheap Chinese 200kva Diesel Engine Power Generators for Sales thumbnail-1

Cheap Chinese 200kva Diesel Engine Power Generators for Sales photo-1

US$ 7,865 - 19,865 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

China weichai

Model Number:

GNRW

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name China weichai

Model Number GNRW

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 20kw to 250kw

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 36A to 450A

Cheap Chinese 200kva Diesel Engine Power Generators for sales

weichai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic

1, 20kw ~250kw Weichai engine generator

Ricardo diesel engine is basic on the introduction of foreign(Ricardo Britain) advanced diesel engine technology and developed which is characterized by economical fuel consumption,low noise,powerful,stable operation and reliable performance.

2,Main specification

a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)

b,12V/24V DC start motor and storage battery

c,Brushless, Self-excited, IP21-23, insulation class H alternator

d, 40°C radiator as standard, 50°C is optional

e,Key start panel control system as standard, digital auto-start panel is optional

f,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

3,Data of diesel Generator Set

Prime Power	20kw-250kw	Standby Power	22kw-275kw
Rated Speed	1500rpm	Output Frequency	50hz/60hz
Phase	3	Rated Voltage	400v
Engine Brand	Ricardo	Alternator Brand	Stamford
Fuel Consumption	4L-200L	Fuel Tank capacity	8 hours
Voltage Regulation Rate	≤±1%	Random Voltage Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%

4,Engine Specification

Genset Model	Prime Powe		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNRW-28	20	25	22	28	K4100D	236	4	3.6	100*115
GNRW-34	24	30	27	34	K4100D	236	4	3.6	100*115
GNRW-41	30	38	33	41	K4100D	236	4	3.6	100*115
GNRW-55	40	50	44	55	K4100ZD	238	4	3.6	100*115
GNRW-69	50	63	55	69	R4105ZD	238	4	4.3	105*115
GNRW-104	75	94	83	104	R6105ZD	238	6	6.5	105*115
GNRW-125	90	113	100	125	R6105ZLD	238	6	6.5	105*115
GNRW-138	100	125	110	138	R6105AZLD	238	6	6.7	105*115
GNRW-165	120	150	132	165	R6105IZLD	238	6	6.7	105*115
GMRW-206	150	188	165	206	6113AZLD	238	6	7.5	113*115

5,Alternator Specification

Alternator Brand	Stamford,Engga,Mecc-alte,Marathon ...
Exciter Type	Brushless, Self-excited
Rated Speed	1500/1800rpm
Rated Frequency	50/60hz
Phase	three or single
Rated Voltage	400V (Available with customer requirements)
Power	0.8
Voltage Adjust Range	≥5%
Protection Grade	IP22
Insulation Grade	H

6,Digital Control Panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

7. Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.

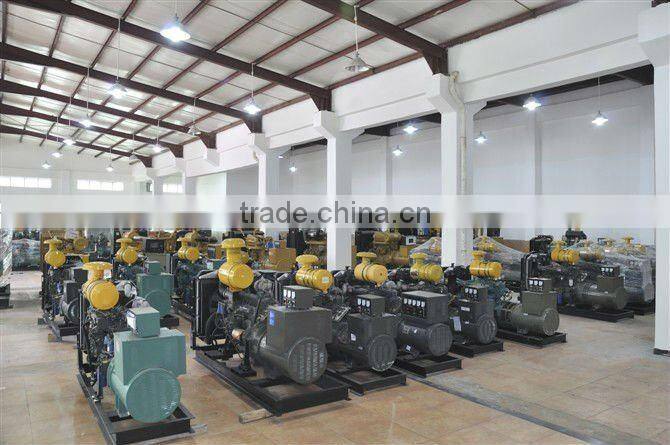

Our Factory
