Specifications
China Brand ! Ychai Body Type Generator1.Engine:Chinese brand,yuchai
2.Stamford alternator
3.stable performance

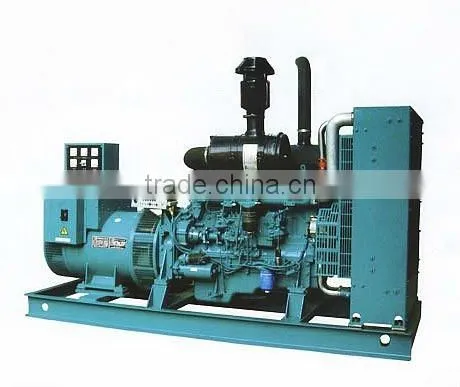

China Brand ! Ychai Body Type Generator
YUchai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic .
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNR-23YC | 16 | 20 | 18 | 23 | YC2108D | ≤235 | 2 | 2.199 | 108*120 |
| GNR-34YC | 24 | 30 | 27 | 34 | YC2115D | ≤235 | 2 | 2.493 | 115*120 |
| GNR-55YC | 40 | 50 | 44 | 55 | YC4108D | ≤199 | 4 | 4.21 | 108*115 |
| GNR-63YC | 45 | 56 | 50 | 63 | YC4D70Z-D20 | ≤197 | 4 | 4.214 | 108*115 |
| GNR-69YC | 50 | 63 | 55 | 69 | YC4D75Z-D20 | ≤199 | 6 | 6.494 | 105*125 |
| GNR-88YC | 64 | 80 | 70 | 88 | YC6108D | ≤199 | 6 | 6.871 | 108*125 |
| GNR-104YC | 75 | 94 | 83 | 104 | YC6108ZD | ≤197 | 6 | 6.871 | 108*125 |
| GNR-125YC | 90 | 113 | 100 | 125 | YC6108ZLD | ≤195 | 6 | 6.871 | 108*125 |
| GNR-138YC | 100 | 125 | 110 | 138 | YC6B150D | ≤195 | 6 | 6.871 | 108*125 |
| GNR-165YC | 120 | 150 | 132 | 165 | YC6A190D | ≤195 | 6 | 7.252 | 108*132 |
| GNR-206YC | 150 | 188 | 165 | 206 | YC6112ZLD | ≤195 | 6 | 7.8 | 112*132 |
| GNR-275YC | 200 | 250 | 220 | 275 | YC6M320L-D20 | ≤189 | 6 | 9.84 | 120*145 |
| GNR-481YC | 350 | 438 | 385 | 481 | YCT550L-D20 | ≤192 | 6 | 15.6 | 140*155 |
| GNR-550YC | 400 | 500 | 440 | 550 | YC6T600L-D20 | ≤194 | 6 | 16.35 | 145*165 |
The specification of engine:
1) engine model: china yuchai
2) engine part :water tower,fan,fuel tank
3) governor system:electrical or mechanical governor
4) aspiration mode:natural, turbocharged
5) start method: 12V/24V DC electric starting
6) low fuel cnsumption,low noise,small volume,light weight
7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions
The specification of alternator:
1)alternator model: stamford, Leroy, Marathon.Engga
2)regulator: AVR automatic voltage regulating
3)insulation degree: H degree
4)power factor:3 phase 4 wire
5)Motor: bronze brushless
6) IP21-23 enclosure
Control Panel
1)Controller Brand: Smartgen, Deepsea,ComAp
2)Control Panel: English interface,LED screen and touch buttons.
Main Functions:
a- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
b- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
c- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
Standard accessories
Standard control panel, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
Optional accessories:
Intelligence control panel, water heater, oil-water separator battery charger, daily fuel tank, sound-resistant canopy, weather-resistant canopy and mobile trailer
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
