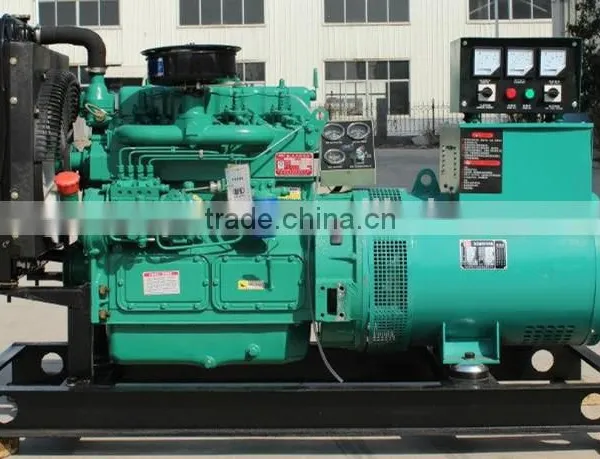

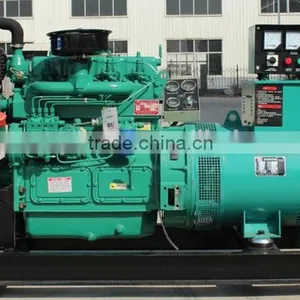

China Ricardo k4100d diesel engine genset 30kva
Specification:
Weichai series small power diesel generator has four stroke, direct inject with small volume and large power station. The generator adopt STC or Brushless series, which has third-harmonic, self-excited and constant voltage. It can bitterly stimnated the generator with nice outline and the reliable performance. This kind of product is suitable for the customer who likes good quality but cheap price. But we can also couple LEROY SOMER generator to meet the customers requirement as their better options. About listed generating sets are all 50HZ, rated voltage is 400/230V, power factor is 0.8 lag, and the connecting is 3 phase & 4 wires. 60HZ generating sets can be supplied according to the customers requirements.
Alternator features:
1. Brushless, 4 poles, rotation magnet
2. IP21-23 (NEMA1) enclosure is standard for all industrial alternators
3. The insulation system is class H
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts
5. Wide range of flange adaptors and single bearing disc coupling
| Genset Model | Prime Powe | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRW-28 | 20 | 25 | 22 | 28 | K4100D | 236 | 4 | 3.6 | 100*115 |
| GNRW-34 | 24 | 30 | 27 | 34 | K4100D | 236 | 4 | 3.6 | 100*115 |
| GNRW-41 | 30 | 38 | 33 | 41 | K4100D | 236 | 4 | 3.6 | 100*115 |
| GNRW-55 | 40 | 50 | 44 | 55 | K4100ZD | 238 | 4 | 3.6 | 100*115 |
| GNRW-69 | 50 | 63 | 55 | 69 | R4105ZD | 238 | 4 | 4.3 | 105*115 |
| GNRW-104 | 75 | 94 | 83 | 104 | R6105ZD | 238 | 6 | 6.5 | 105*115 |
| GNRW-125 | 90 | 113 | 100 | 125 | R6105ZLD | 238 | 6 | 6.5 | 105*115 |
| GNRW-138 | 100 | 125 | 110 | 138 | R6105AZLD | 238 | 6 | 6.7 | 105*115 |
| GNRW-165 | 120 | 150 | 132 | 165 | R6105IZLD | 238 | 6 | 6.7 | 105*115 |
| GMRW-206 | 150 | 188 | 165 | 206 | 6113AZLD | 238 | 6 | 7.5 | 113*115 |
Alternator Specification
Alternator Brand |
Stamford,Engga,Mecc-alte,Marathon ... |
Exciter Type |
Brushless, Self-excited |
Rated Speed |
1500/1800rpm |
Rated Frequency |
50/60hz |
Phase |
three or single |
Rated Voltage |
400V (Available with customer requirements) |
Power |
0.8 |
Voltage Adjust Range |
≥5% |
Protection Grade |
IP22 |
Insulation Grade |
H |
Digital Control Panel
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Send Inquiry to This Supplier
