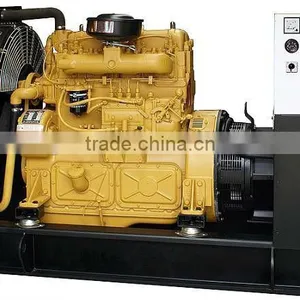

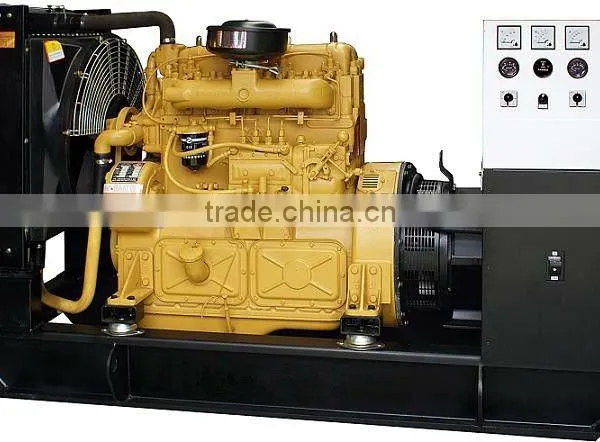

50kv to 700kva China Brand Diesel Generator

Shenzhen Genor Power Equipment Co., Ltd.
50kv to 700kva China Brand Diesel Generator thumbnail-1
50kv to 700kva China Brand Diesel Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
China Shangchai
Model Number:
GNRS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name China Shangchai
Model Number GNRS
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 50kva to 700kva
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 72A to 1008A

Specifications

1.ISO9001 CE approved
2.OME offered
3.Alterntor:stamford
4.One year warranty



Specifications



1)Shangchai series diesel generator adopts the famous China-made engine Shangchai diesel engine and the world famous generator stamford. It has the advantage of low oil consumption, high reliability, high performance, low price etc has win a good reputation in the China market and overseas. The quality is the same as the famous brand cummins and perkins, but price is more competitive and attracting!


2)This sets are designed for using in towns, fishing ports, high buildings, railways, sites, ships etc as an electric power source or as reserved power for using on emergent case.


3)The main technical data of GF series all meet the national standard of GB/T2820-1997, this item work out specially for the industrial using diesel generator sets.



Genset ModelPrime PowerStandby PowerEngineFuel ConsumptionCylinder No.DisplacementBore X Stroke
KWKVAKWKVA(g/kwh) (L )(mm)
GNRS-55405044554135D≤22648135*140
GNRS-69506355694135D-1≤22648135*140
GNRS-88648071884135AD≤22648.6135*150
GNRS-1047594831044135AZD-1≤22148.6135*150
GNRS-12490113991244135AZD≤22148.6135*150
GNRS-1381001251101384135AZD-2≤22148.6135*150
GNRS-1651201501321656135JZD≤221612.9135*140
GNRS-2351501881652356135AZD-1≤221612.9135*150
GNRS-275200250220275G128ZLD≤218612.9135*150
GNRS-344250313275344G128ZLD1≤218625.8135*150
GNRS-38528035030838512V135JZD≤2181225.8135*150
GNRS-413300375330413G128ZLD11≤218626.8135*150
GNRS-44032040035244012V135AZD≤2181226.8135*150
GNRS-48135043838548112V135AZLD≤2161226.8135*150
GNRS-55040050044055012V135BZLD≤2161226.9135*150
GNRS-61945056349561912V135BZLD2≤2161226.9135*150
GNRS-68850062555068812V135BZLD1≤2161226.9135*150
GNRS-756550700605756NT271LW53≤2161226.9138*150





Engine Features:



1. china shangchai engine 50kva to 700kva

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner



Alternator Features:



1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Alternator Features:



1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Control Panel:



Brand: Smartgen, Deepsea,ComAp

Start or Stop Generator set manually/ Automatically.

Generator over/under frequency protection

Open controller output can be defined as Pre-heat/Idle output .

Generator over/under/unbalance voltage Protection .

High Coolant temperature protection

Over speed protection

Low Oil pressure protection

Over current protection

Over load protection

Note: indicate this function depend on the set points of the controller



Accessories



1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
