Specifications
Made In China Diesel Generator1.China Yuchai Diesel Engine
2.stable performance
3.Remote control
4.12 months warranty

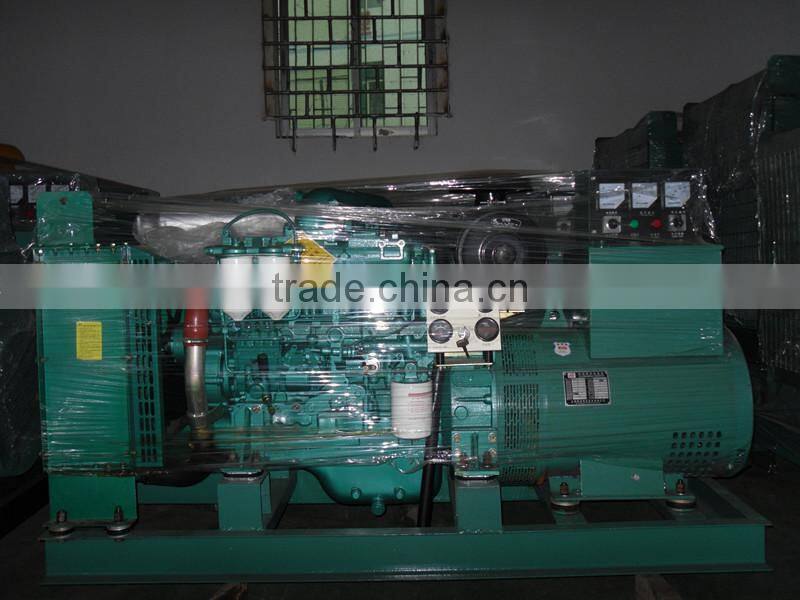

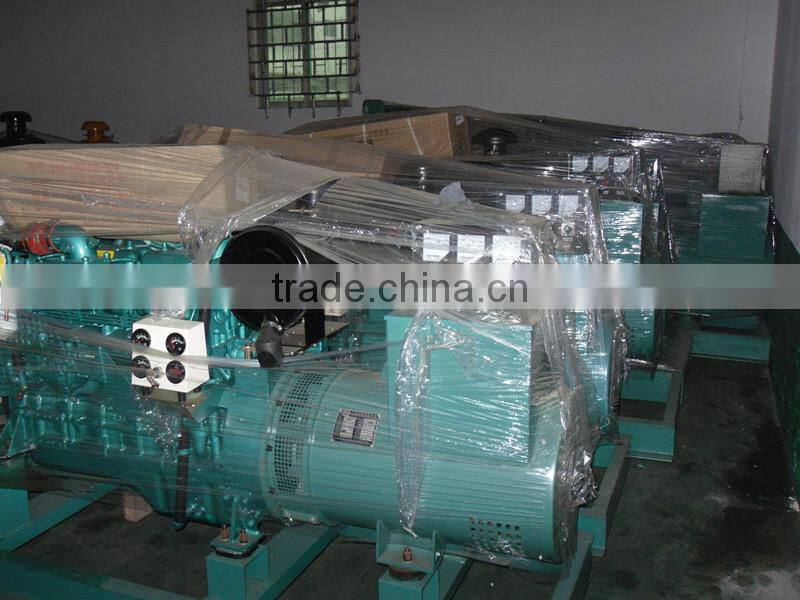

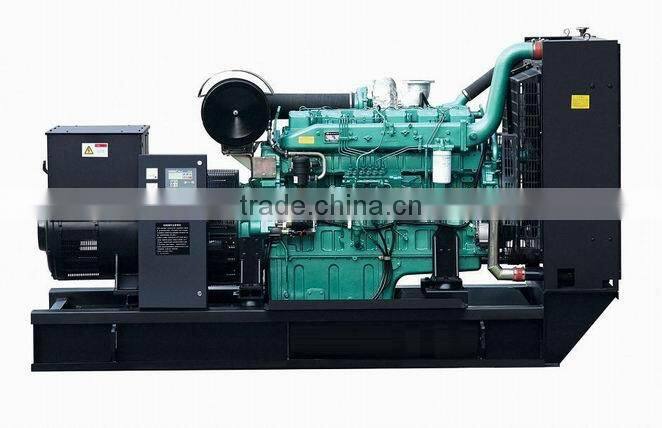

16kw to 700kw Engine Made In China Diesel Generator
Diesel generator china with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic .
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNR-23YC | 16 | 20 | 18 | 23 | YC2108D | ≤235 | 2 | 2.199 | 108*120 |
| GNR-34YC | 24 | 30 | 27 | 34 | YC2115D | ≤235 | 2 | 2.493 | 115*120 |
| GNR-55YC | 40 | 50 | 44 | 55 | YC4108D | ≤199 | 4 | 4.21 | 108*115 |
| GNR-63YC | 45 | 56 | 50 | 63 | YC4D70Z-D20 | ≤197 | 4 | 4.214 | 108*115 |
| GNR-69YC | 50 | 63 | 55 | 69 | YC4D75Z-D20 | ≤199 | 6 | 6.494 | 105*125 |
| GNR-88YC | 64 | 80 | 70 | 88 | YC6108D | ≤199 | 6 | 6.871 | 108*125 |
| GNR-104YC | 75 | 94 | 83 | 104 | YC6108ZD | ≤197 | 6 | 6.871 | 108*125 |
| GNR-125YC | 90 | 113 | 100 | 125 | YC6108ZLD | ≤195 | 6 | 6.871 | 108*125 |
| GNR-138YC | 100 | 125 | 110 | 138 | YC6B150D | ≤195 | 6 | 6.871 | 108*125 |
| GNR-165YC | 120 | 150 | 132 | 165 | YC6A190D | ≤195 | 6 | 7.252 | 108*132 |
| GNR-206YC | 150 | 188 | 165 | 206 | YC6112ZLD | ≤195 | 6 | 7.8 | 112*132 |
| GNR-275YC | 200 | 250 | 220 | 275 | YC6M320L-D20 | ≤189 | 6 | 9.84 | 120*145 |
| GNR-481YC | 350 | 438 | 385 | 481 | YCT550L-D20 | ≤192 | 6 | 15.6 | 140*155 |
| GNR-550YC | 400 | 500 | 440 | 550 | YC6T600L-D20 | ≤194 | 6 | 16.35 | 145*165 |
The specification of engine:
1) engine model: china yuchai
2) engine part :water tower,fan,fuel tank
3) governor system:electrical or mechanical governor
4) aspiration mode:natural, turbocharged
5) start method: 12V/24V DC electric starting
6) low fuel cnsumption,low noise,small volume,light weight
7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions
The specification of alternator:
1)alternator model: stamford, Leroy, Marathon.Engga
2)regulator: AVR automatic voltage regulating
3)insulation degree: H degree
4)power factor:3 phase 4 wire
5)Motor: bronze brushless
6) IP21-23 enclosure
Control Panel
1)Controller Brand: Smartgen, Deepsea,ComAp
2)Control Panel: English interface,LED screen and touch buttons.
Main Functions:
a- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
b- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
c- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
Standard accessories
Standard control panel, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
Optional accessories:
Intelligence control panel, water heater, oil-water separator battery charger, daily fuel tank, sound-resistant canopy, weather-resistant canopy and mobile trailer
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
